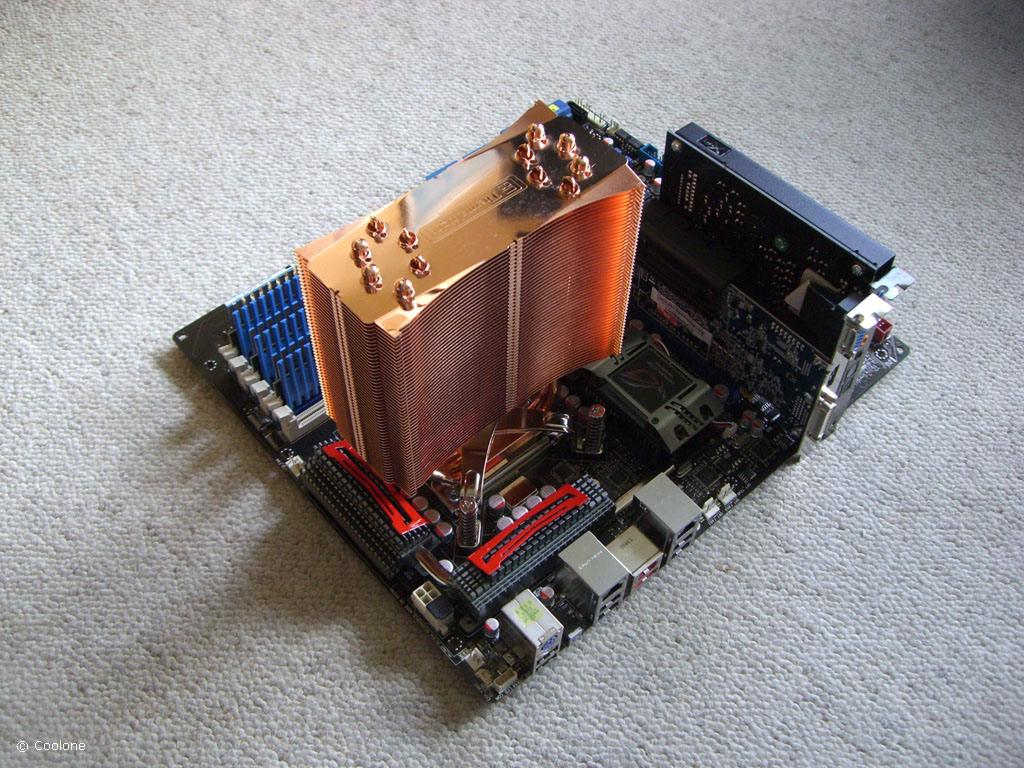

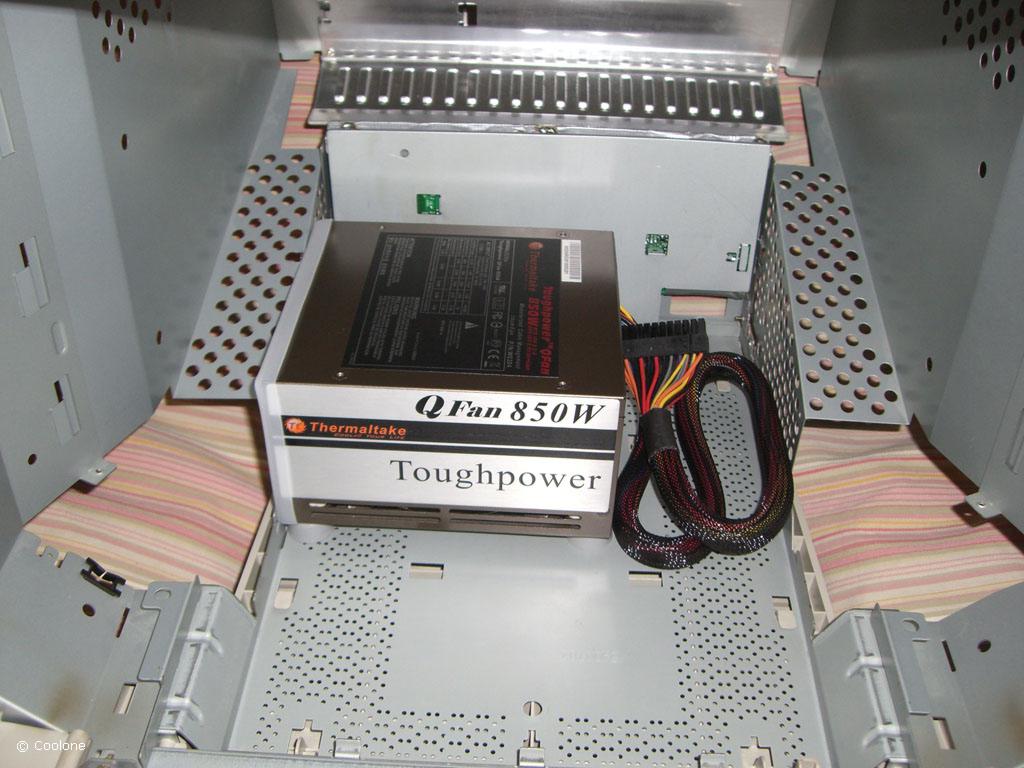

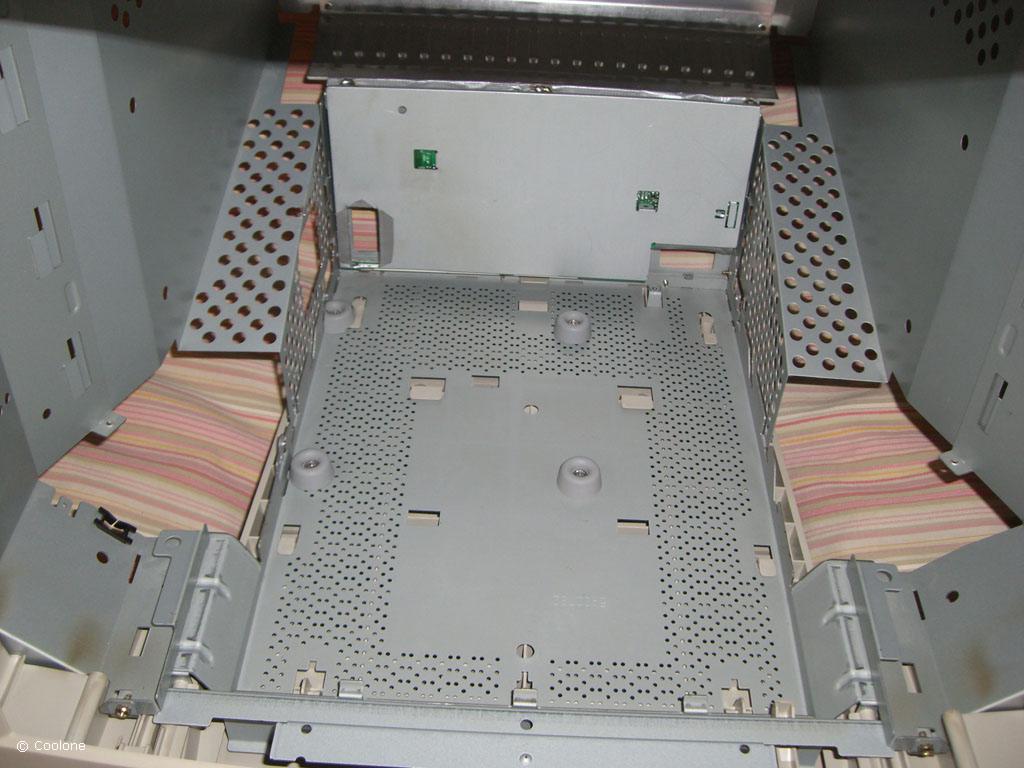

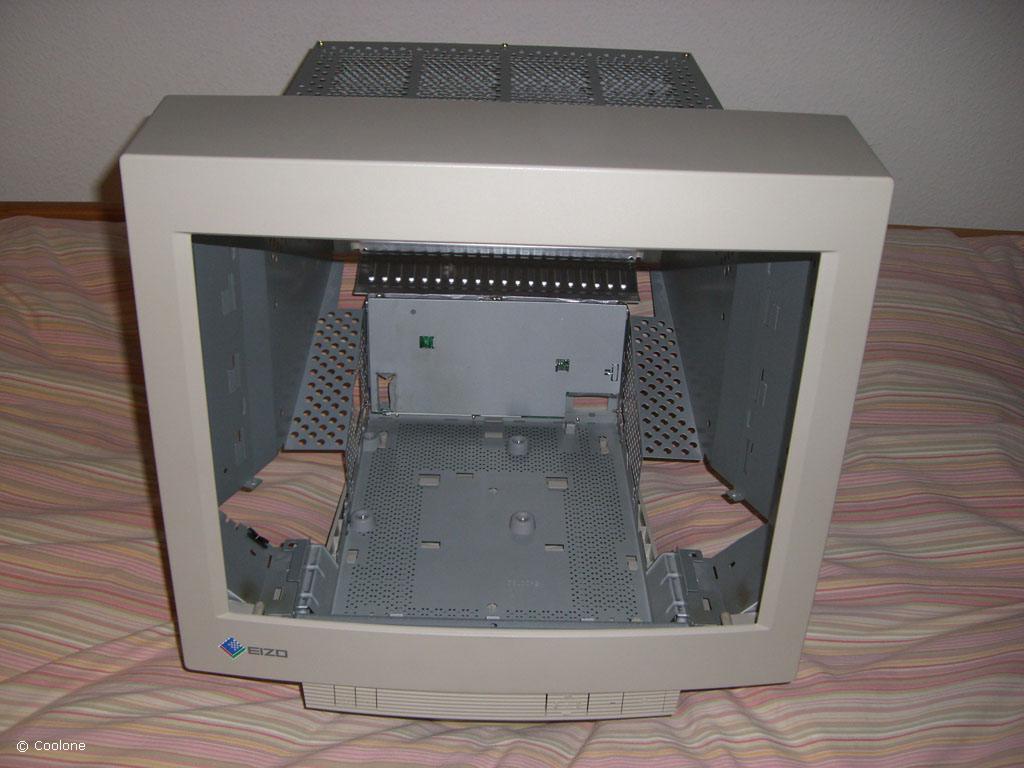

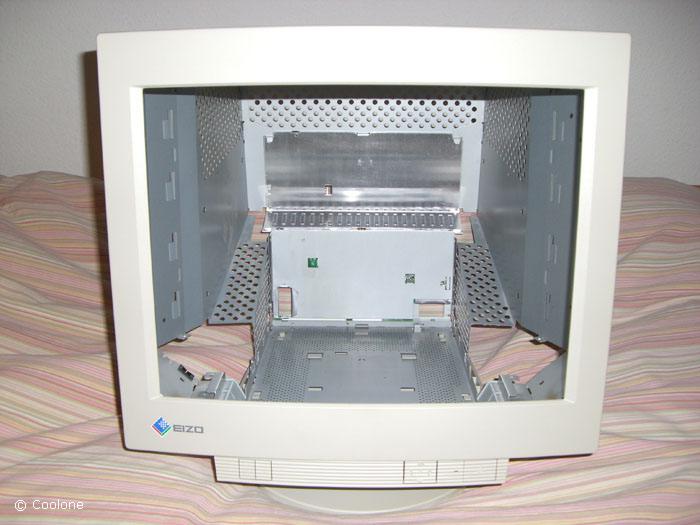

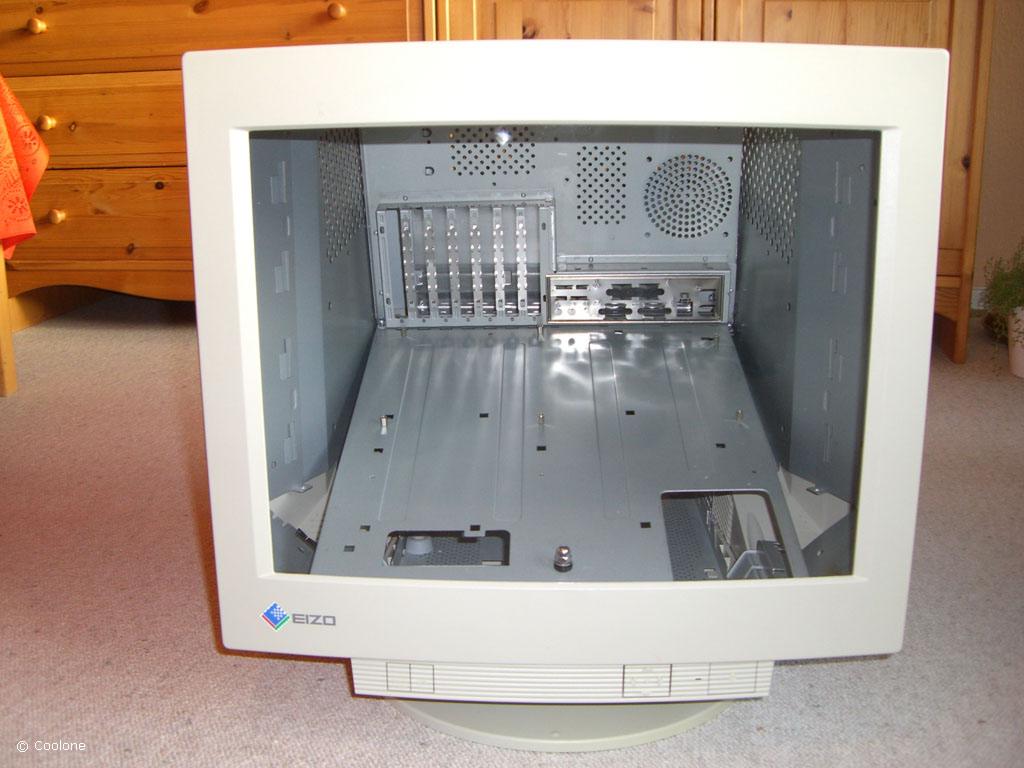

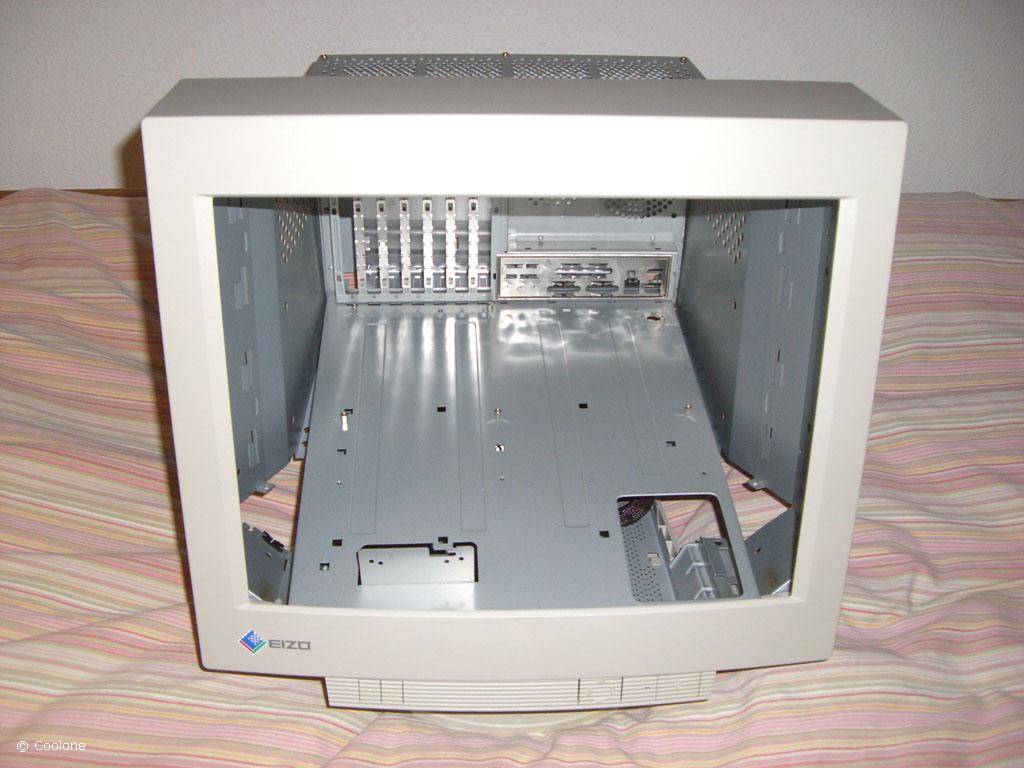

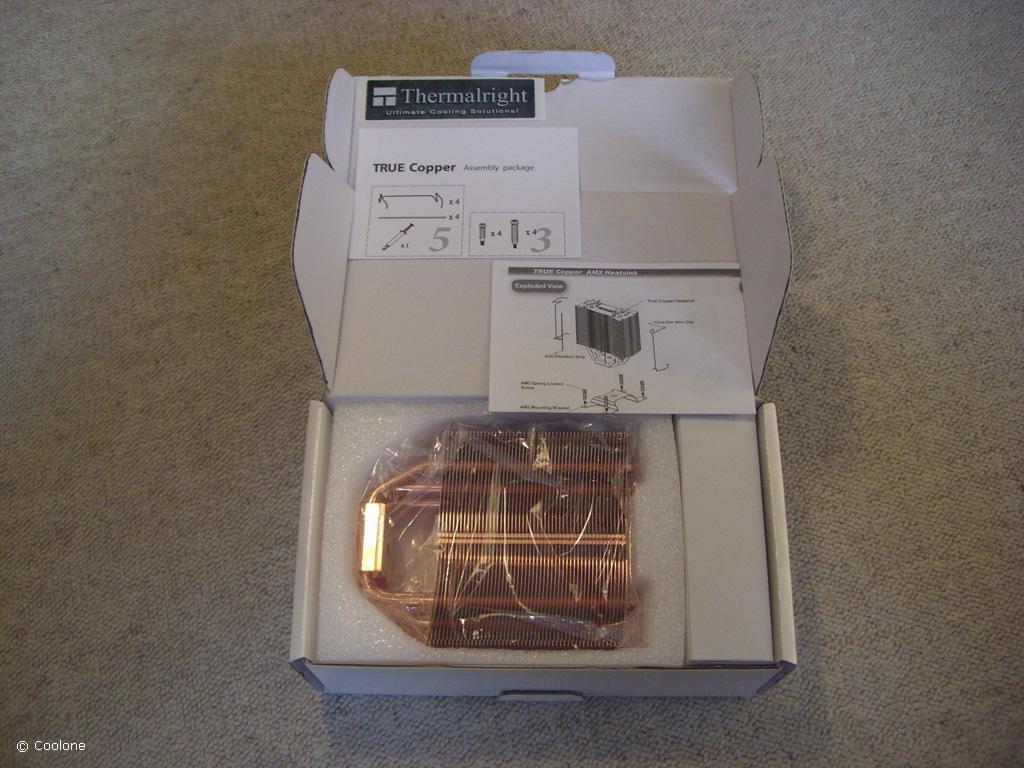

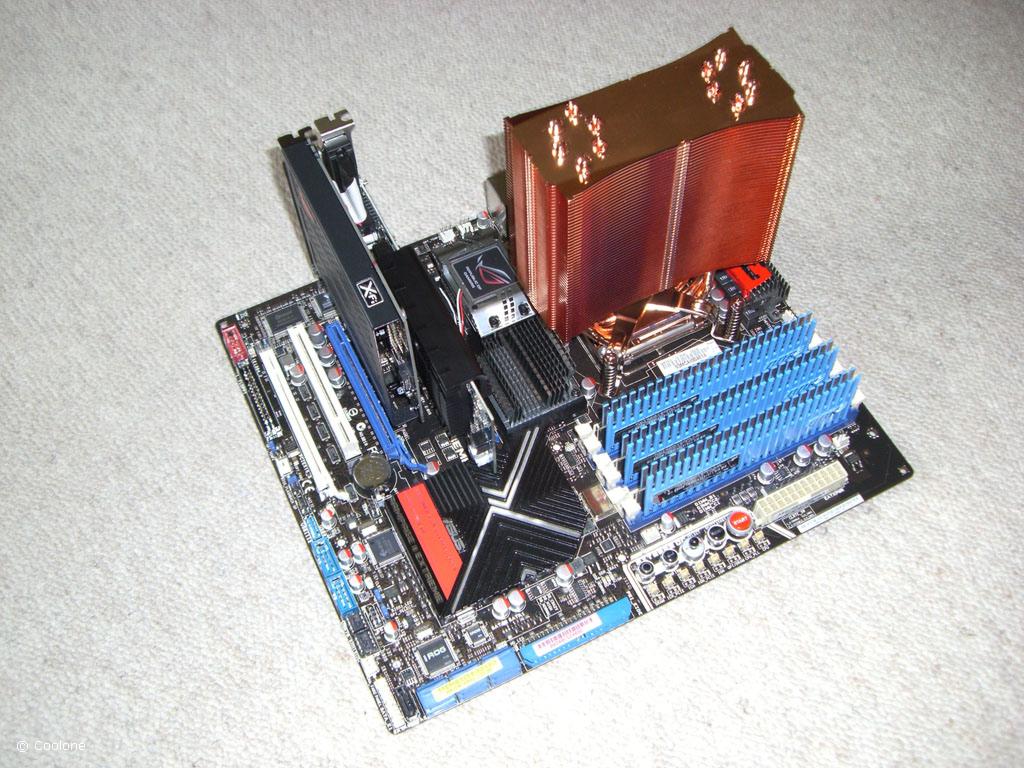

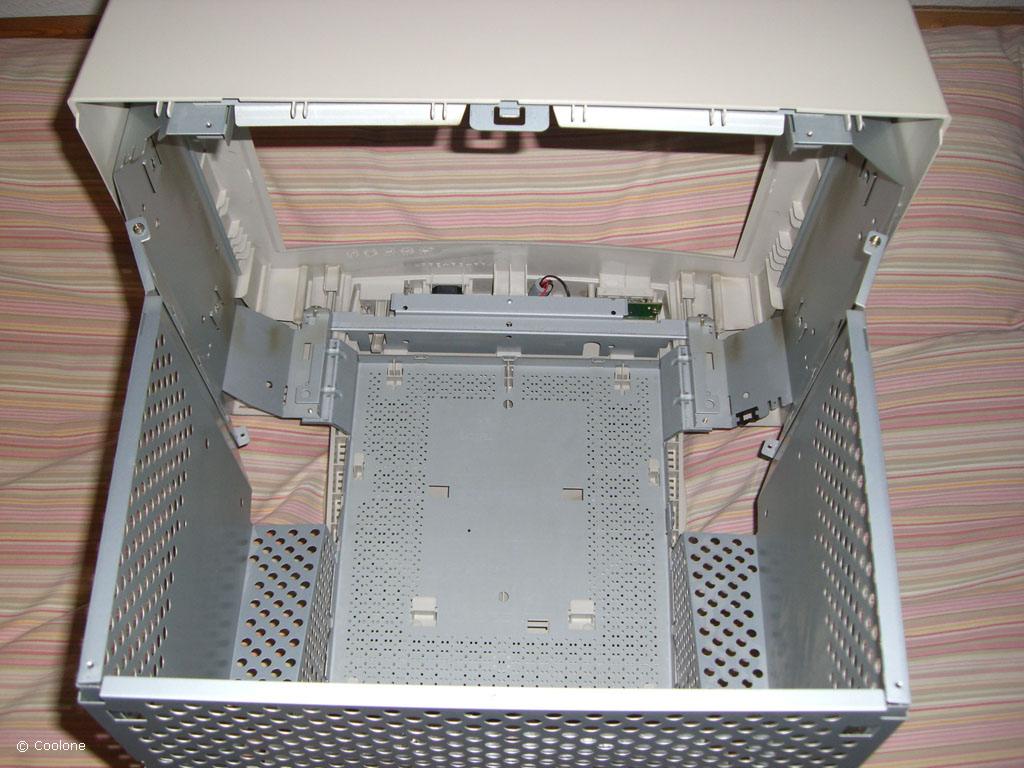

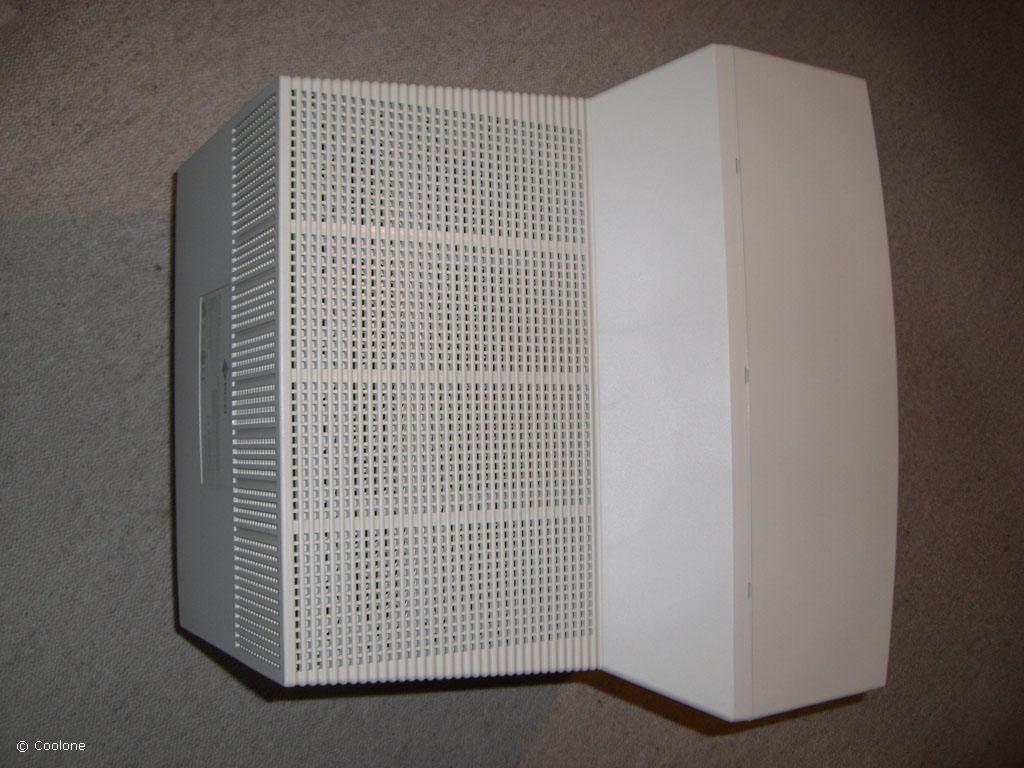

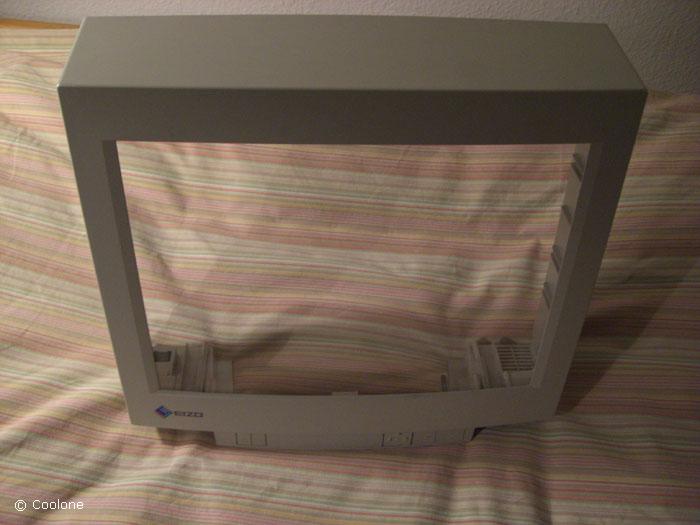

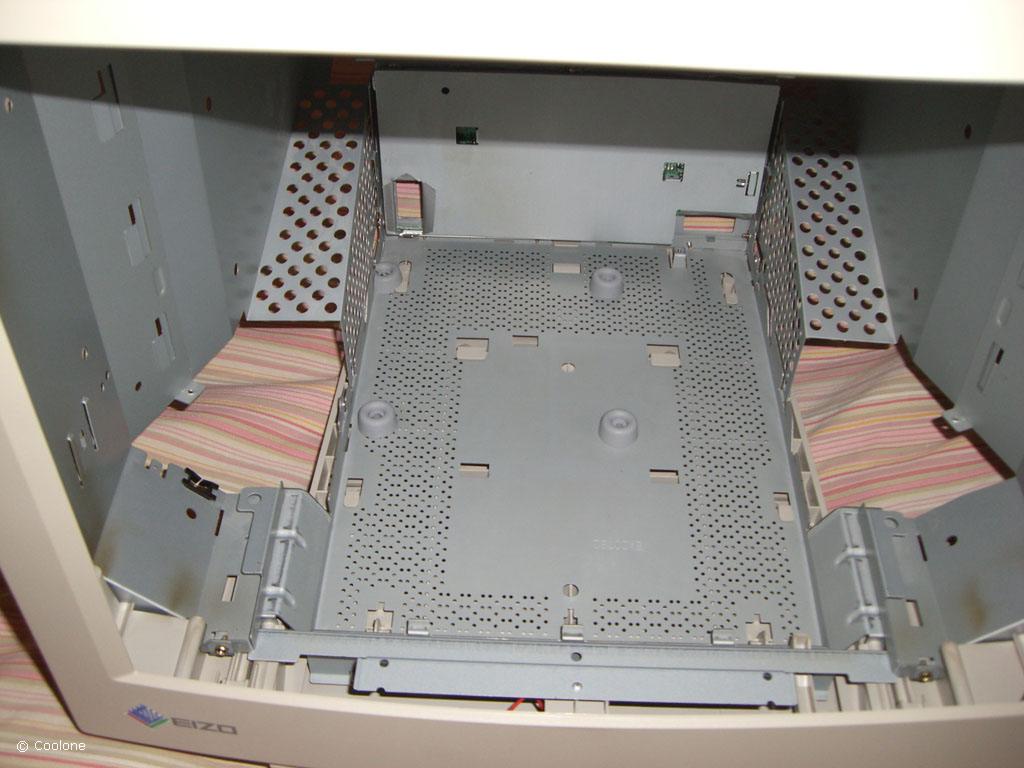

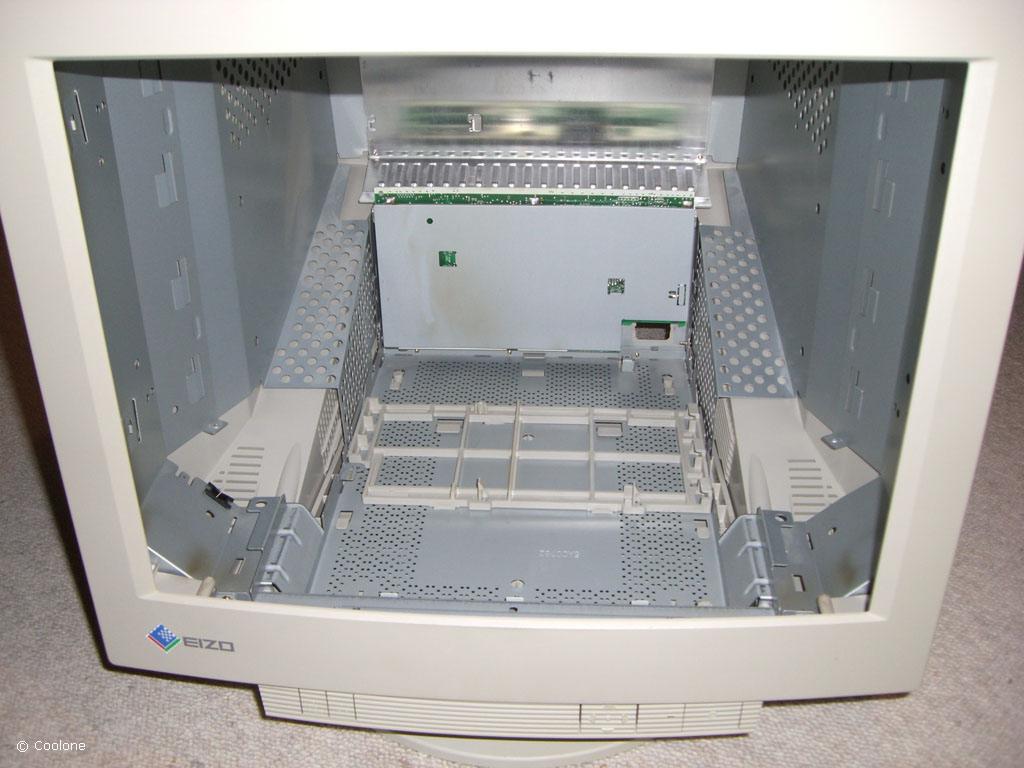

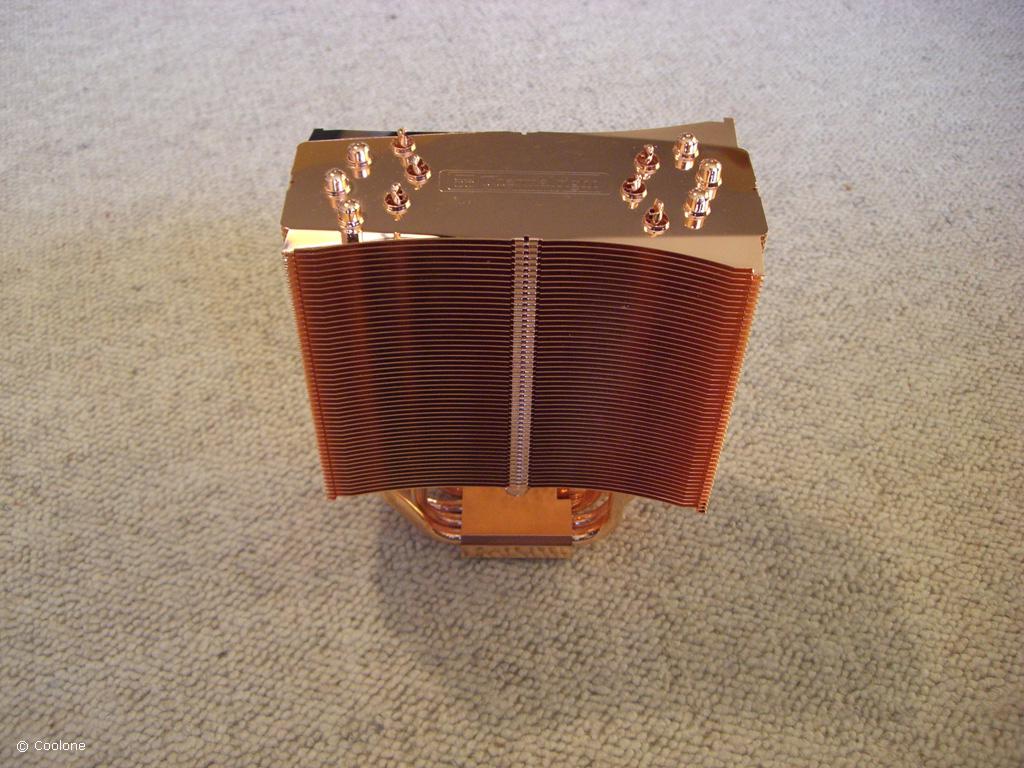

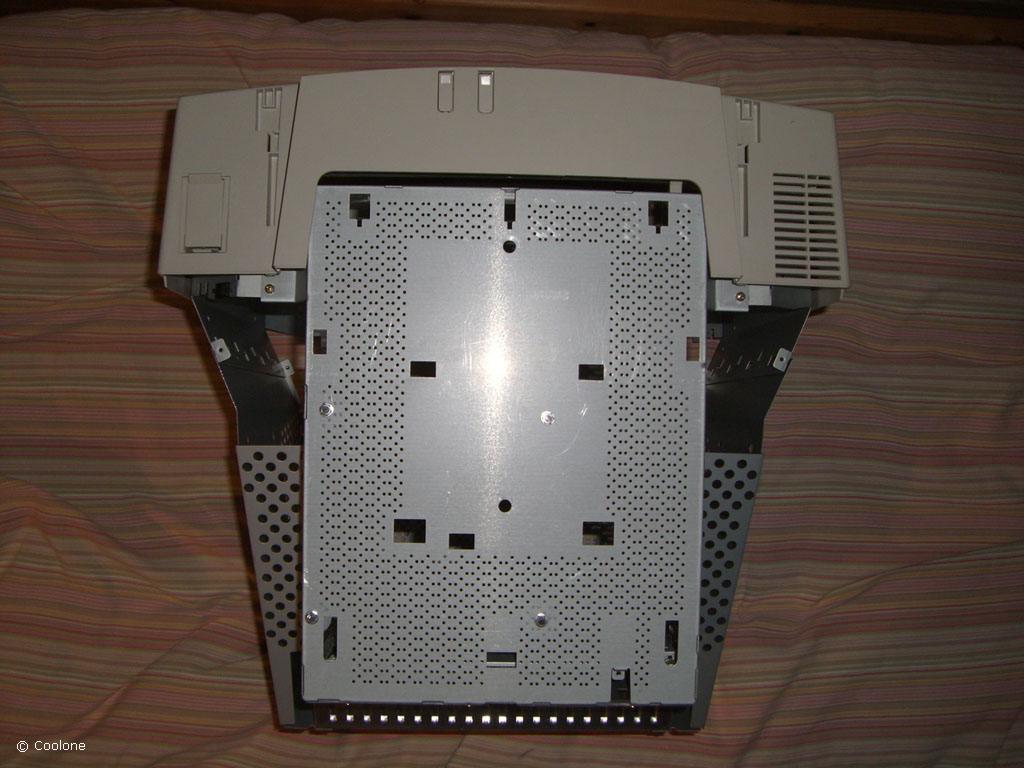

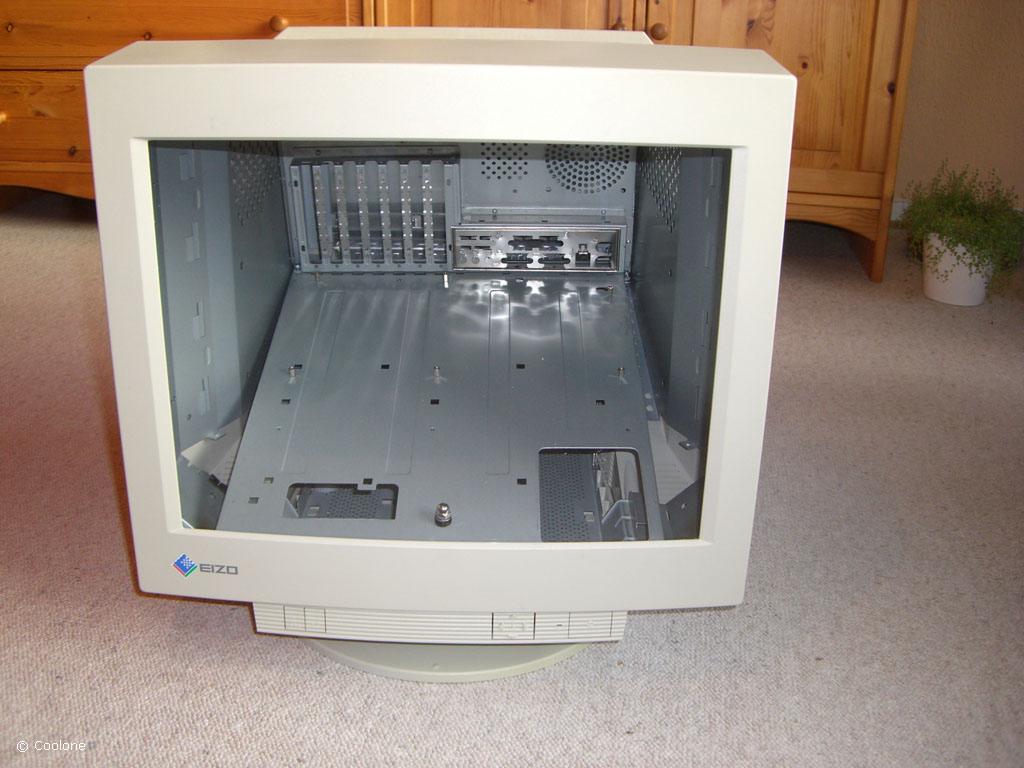

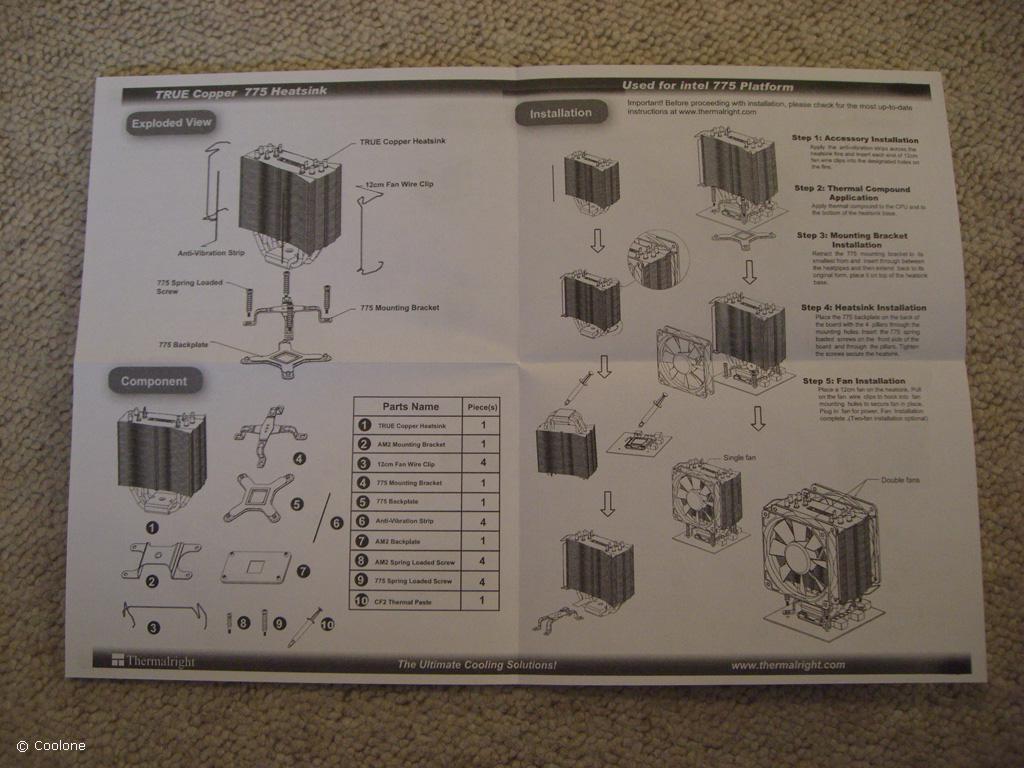

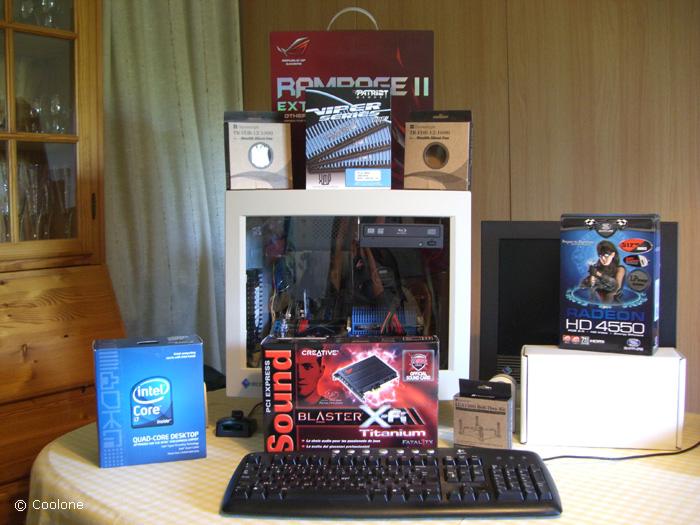

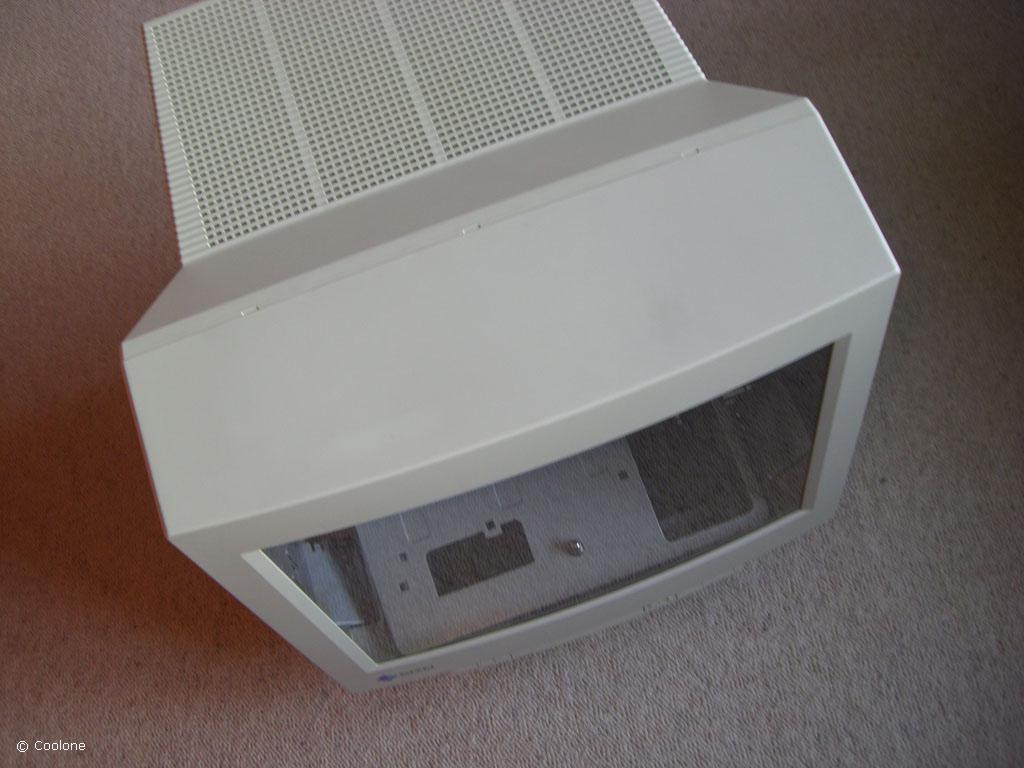

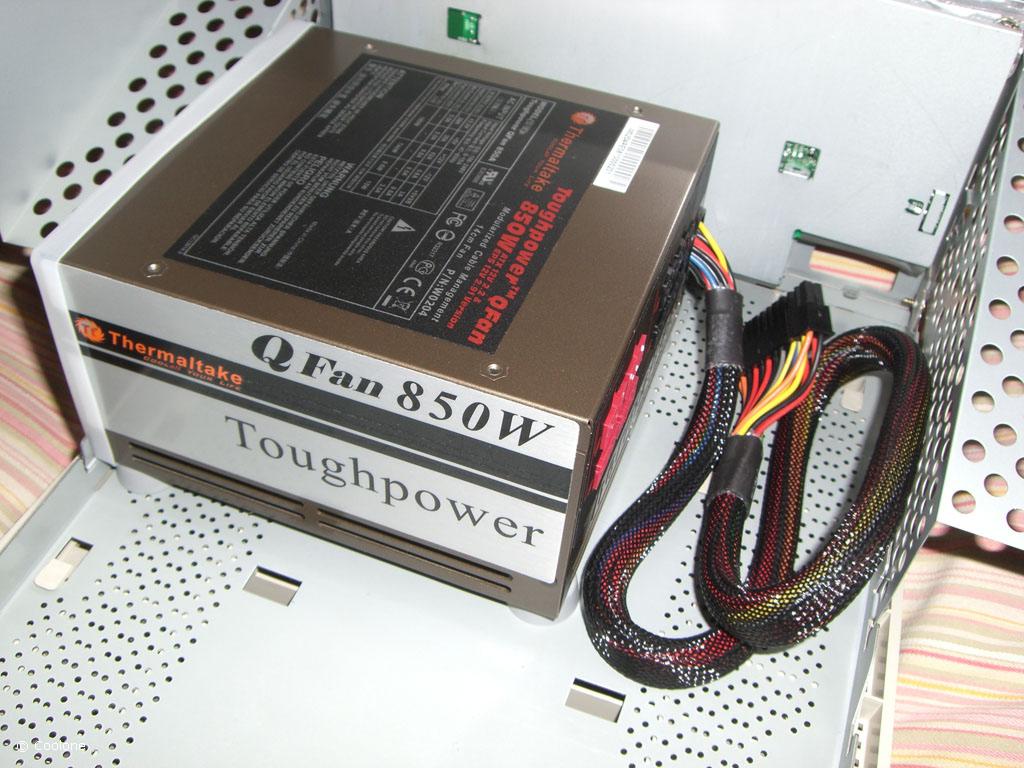

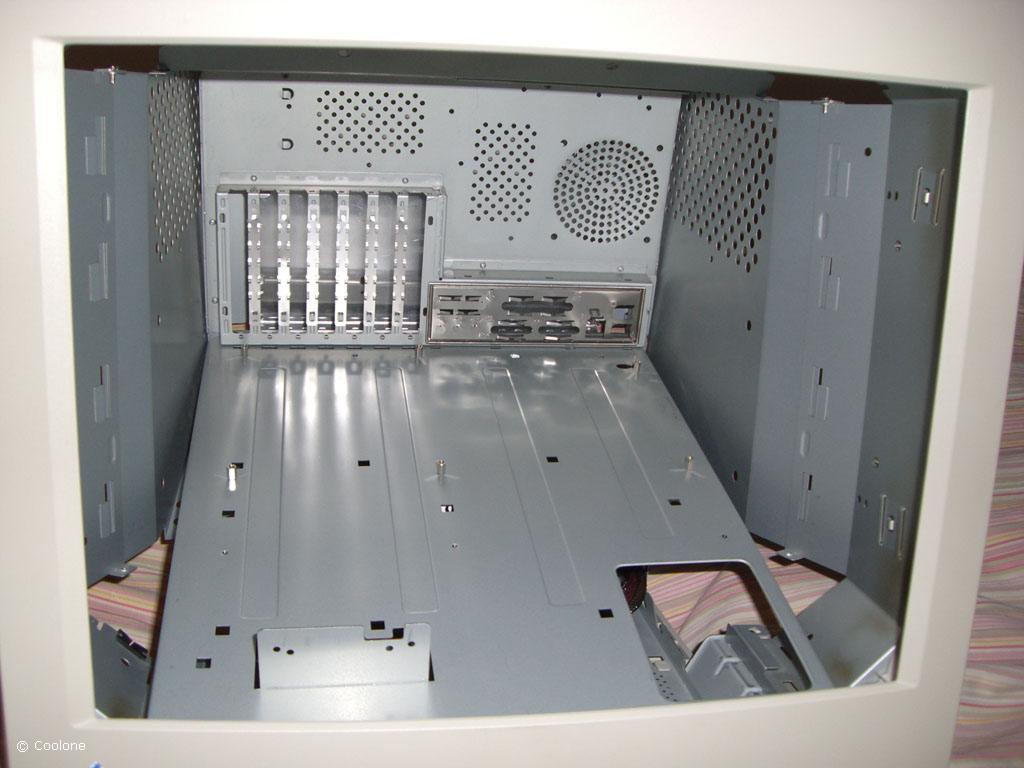

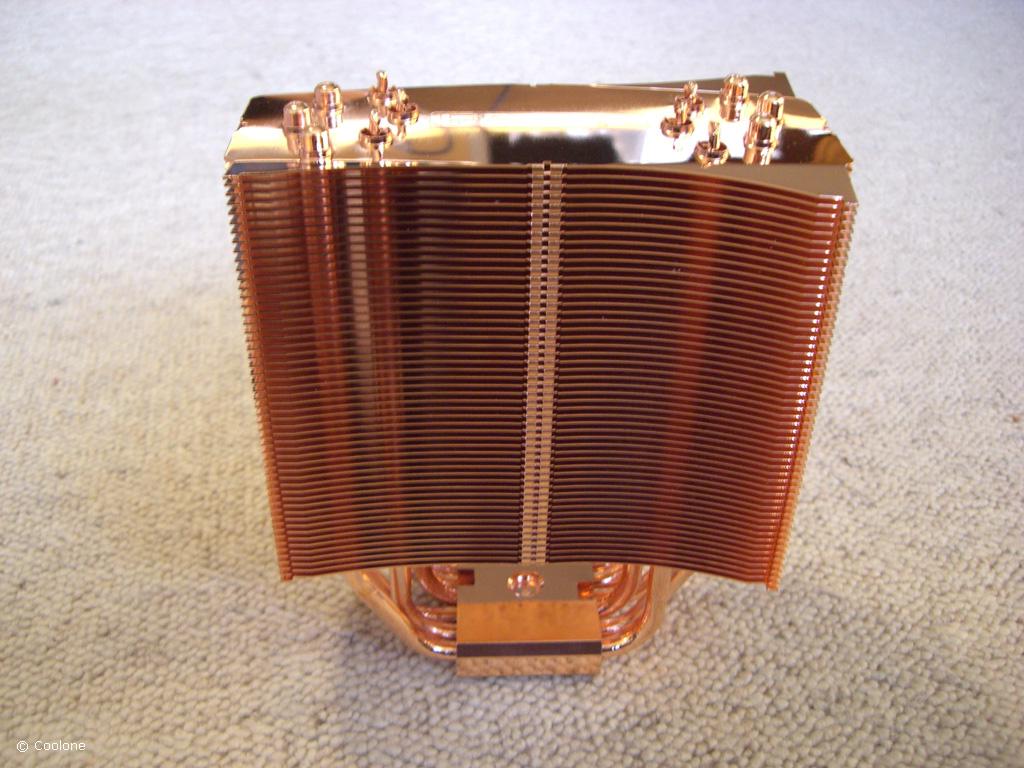

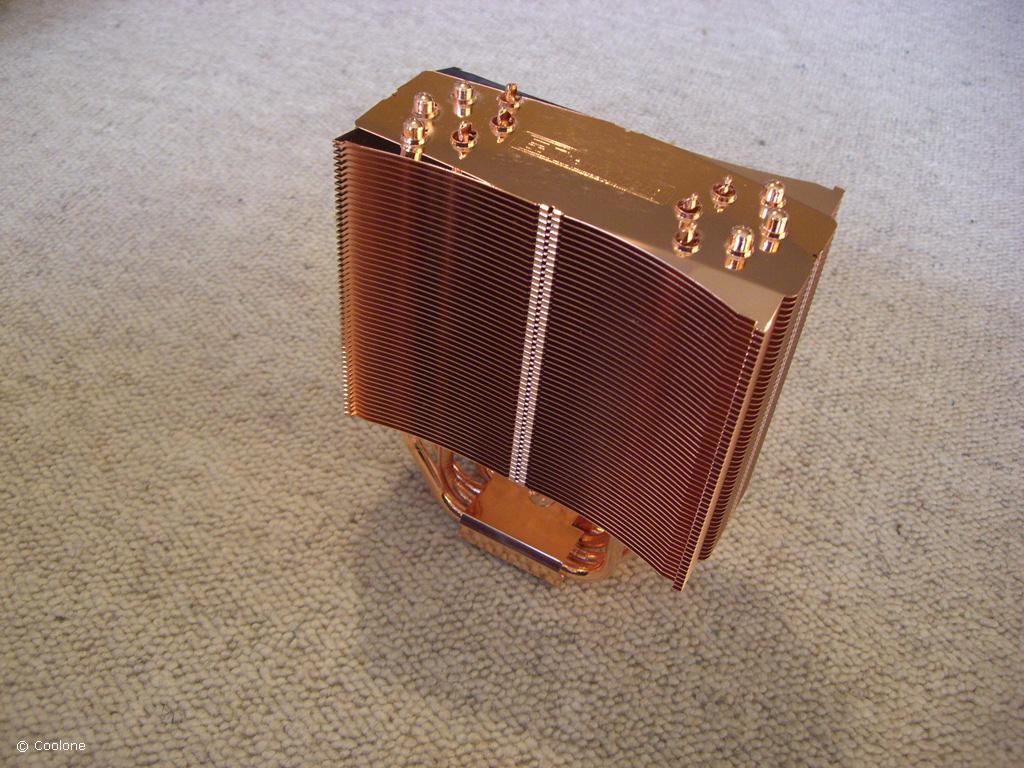

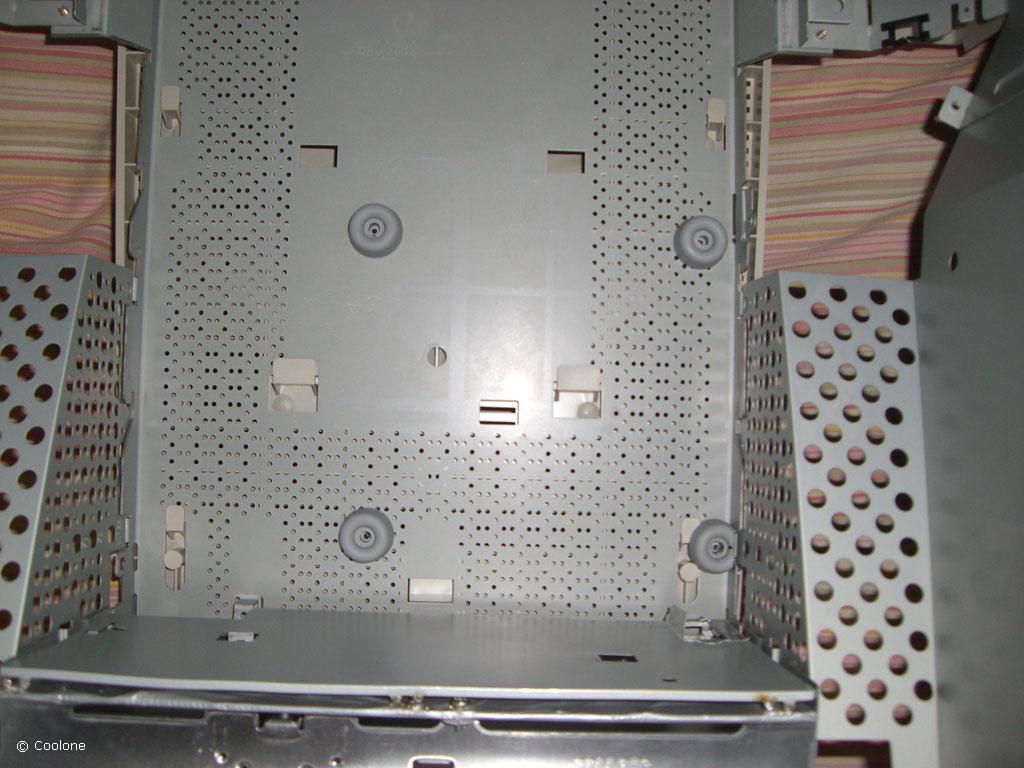

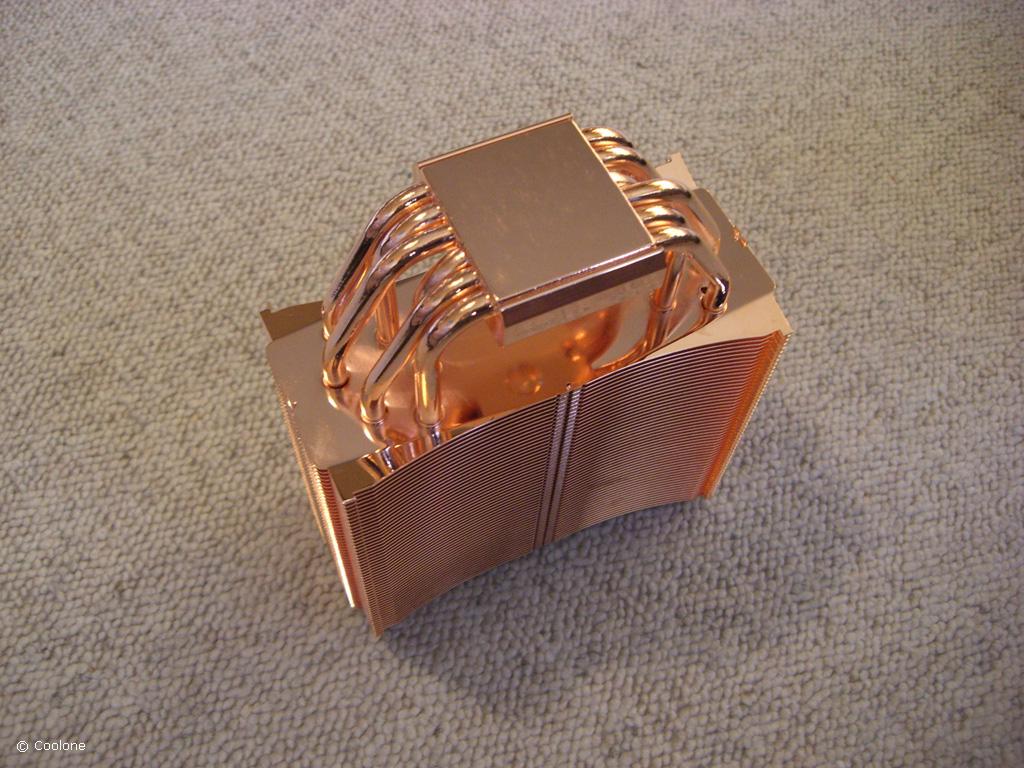

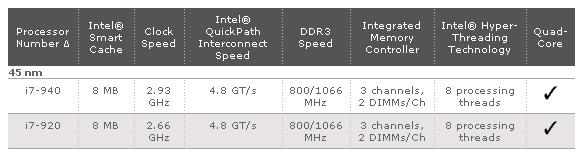

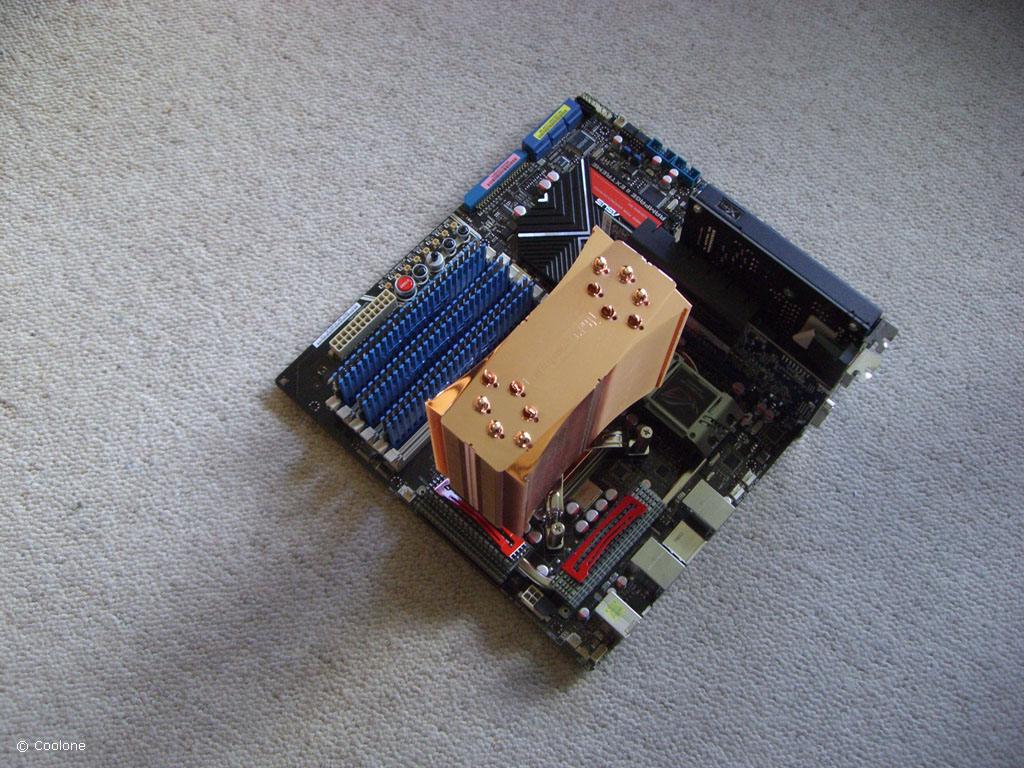

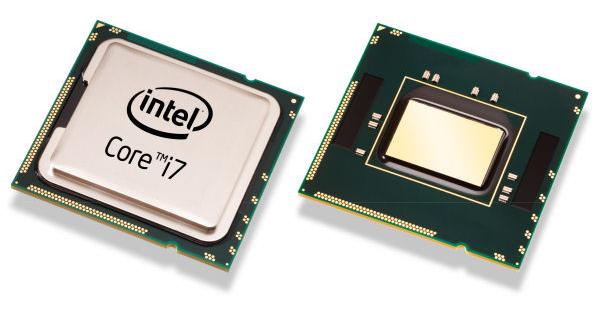

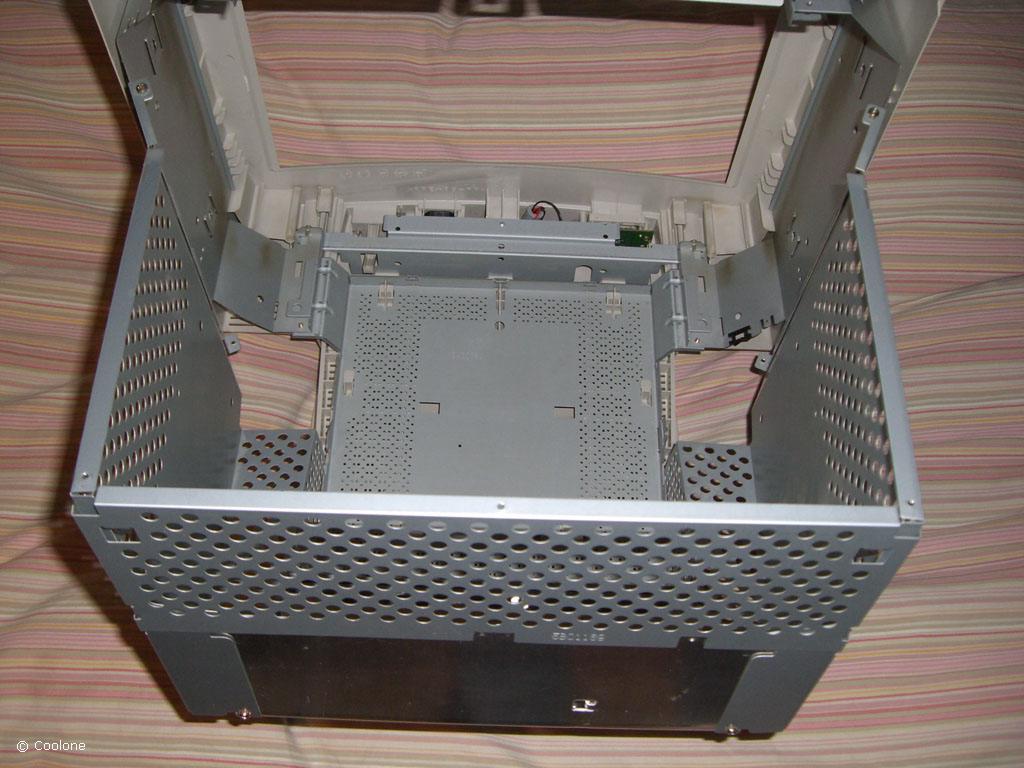

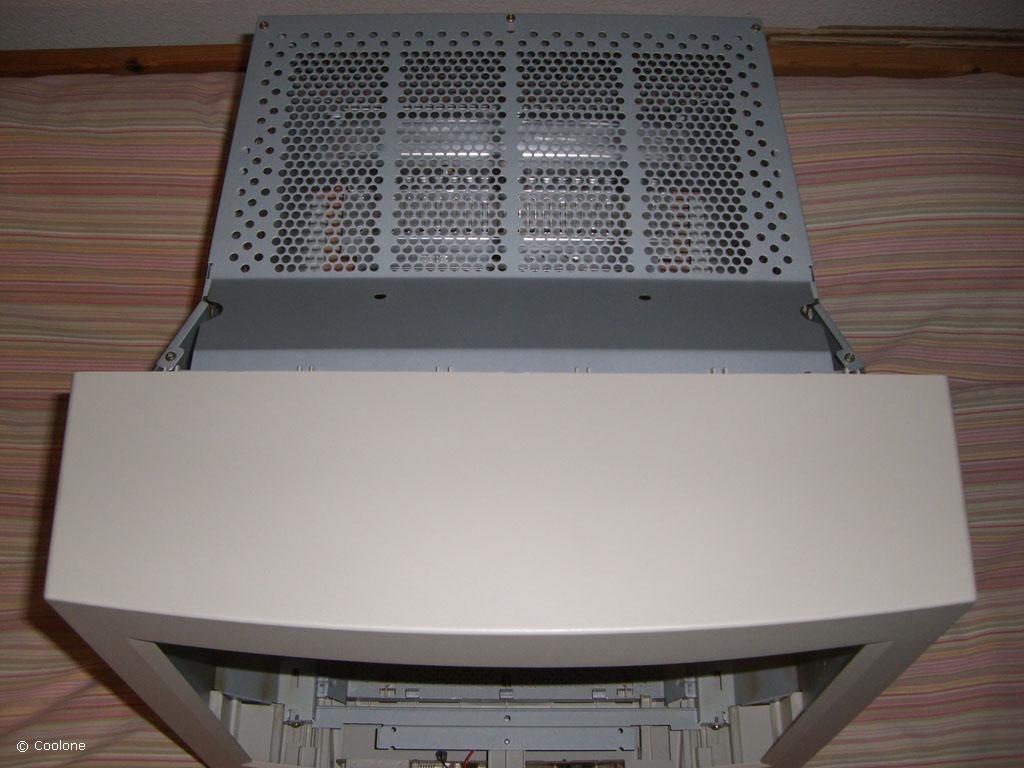

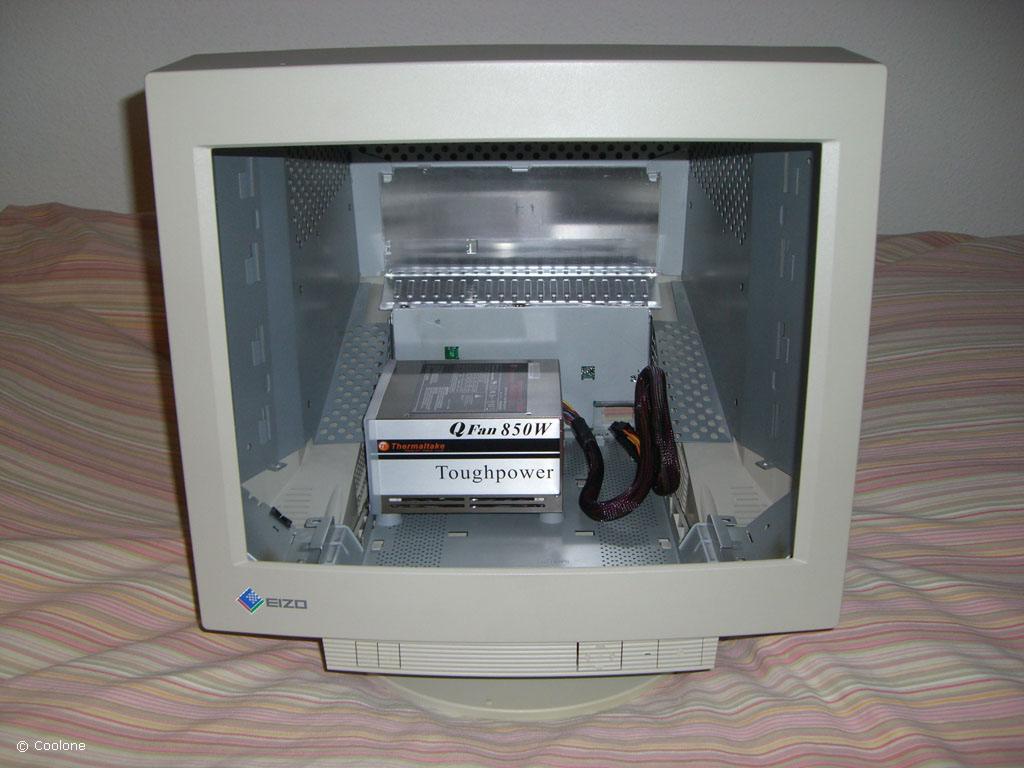

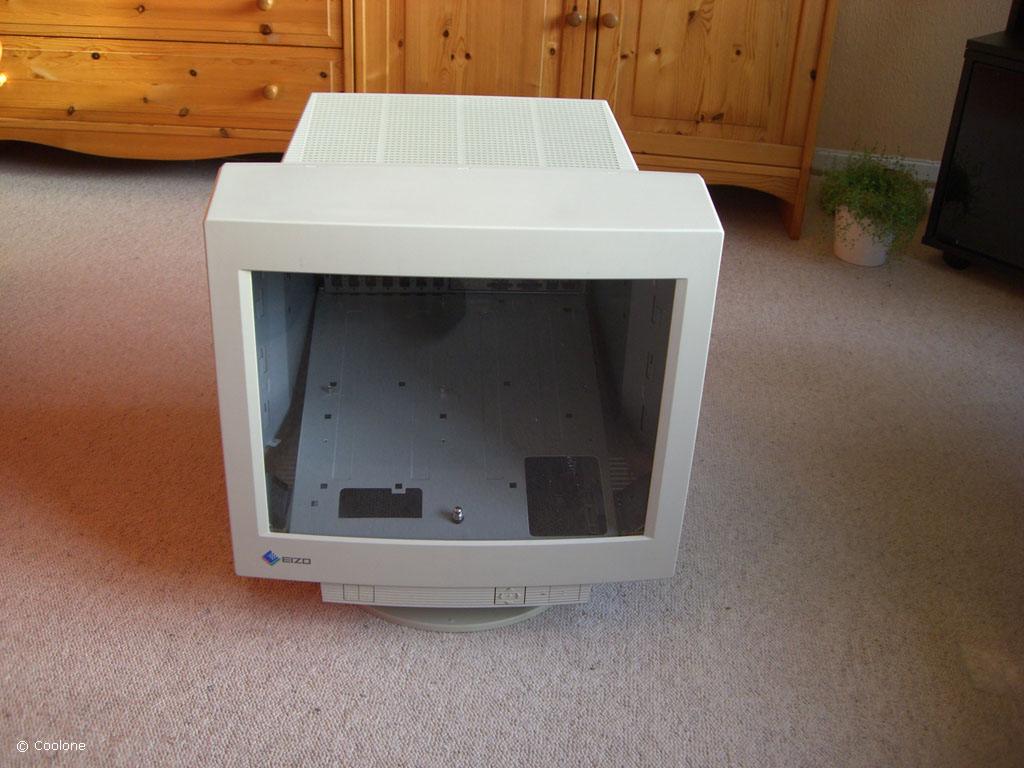

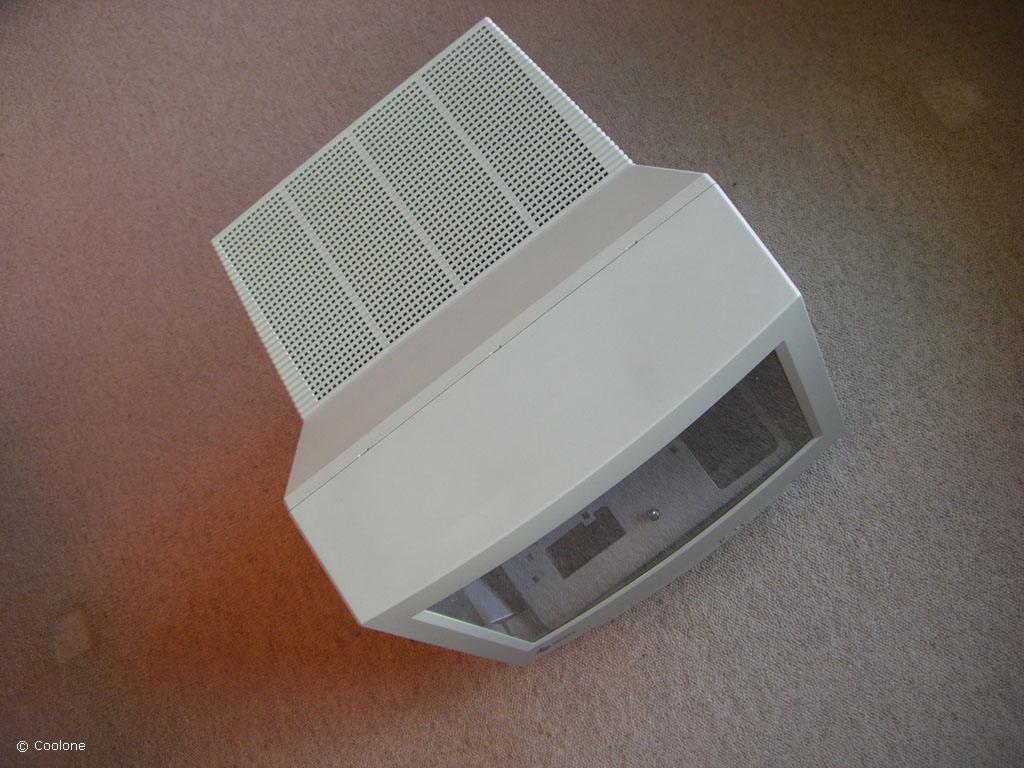

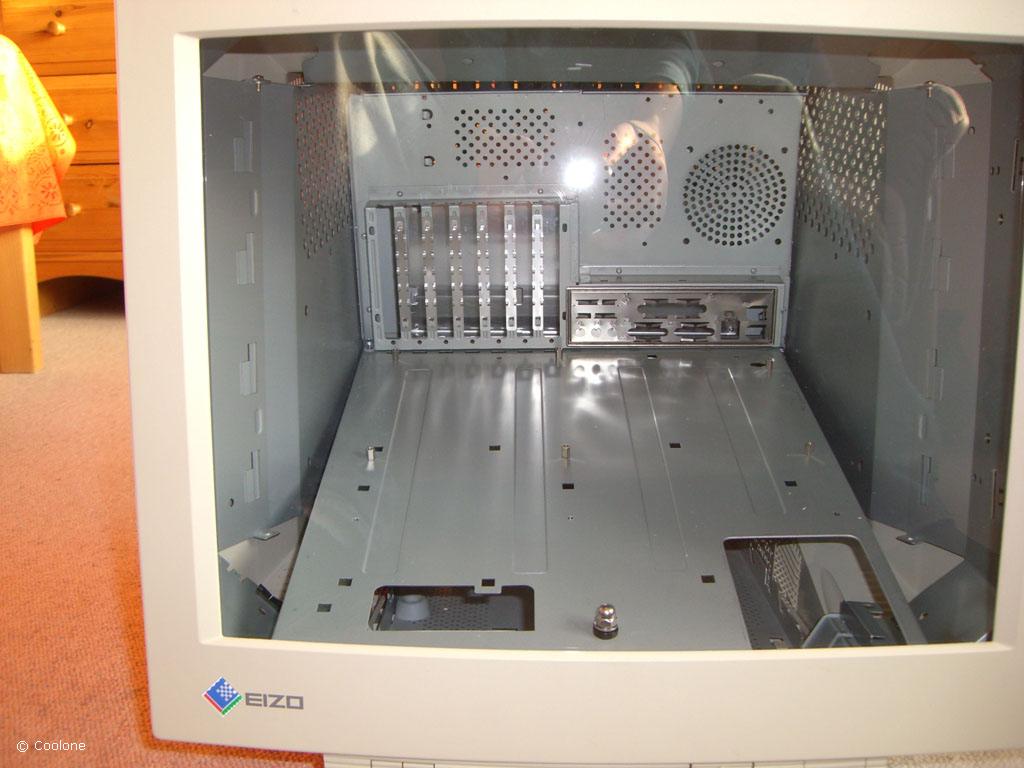

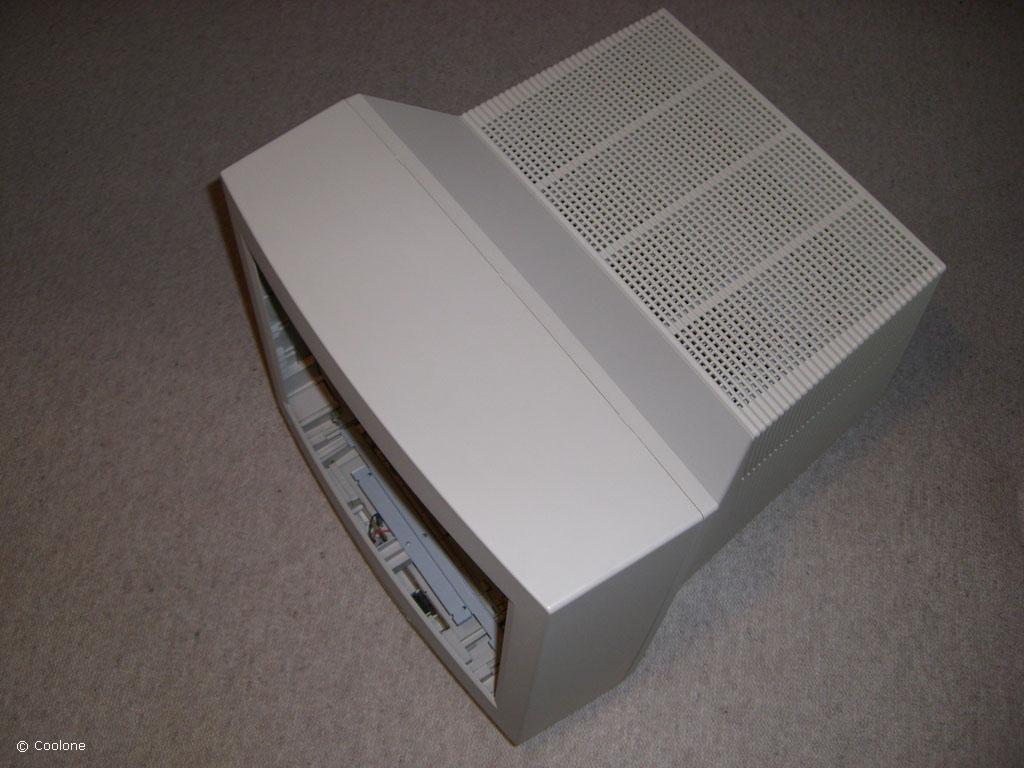

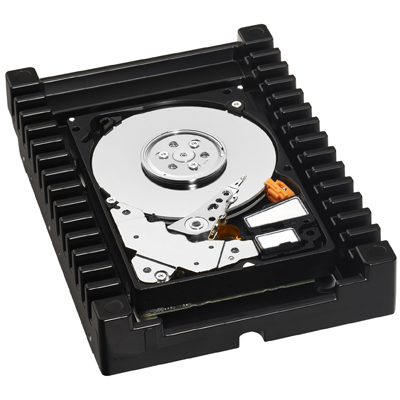

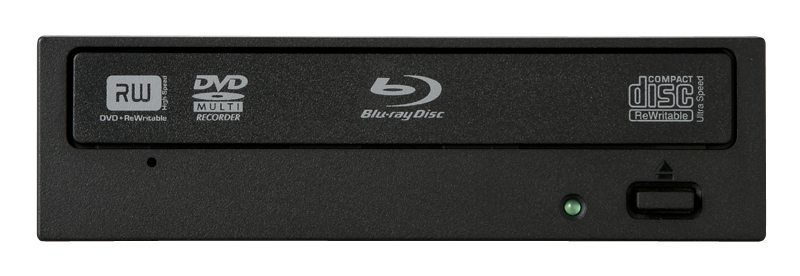

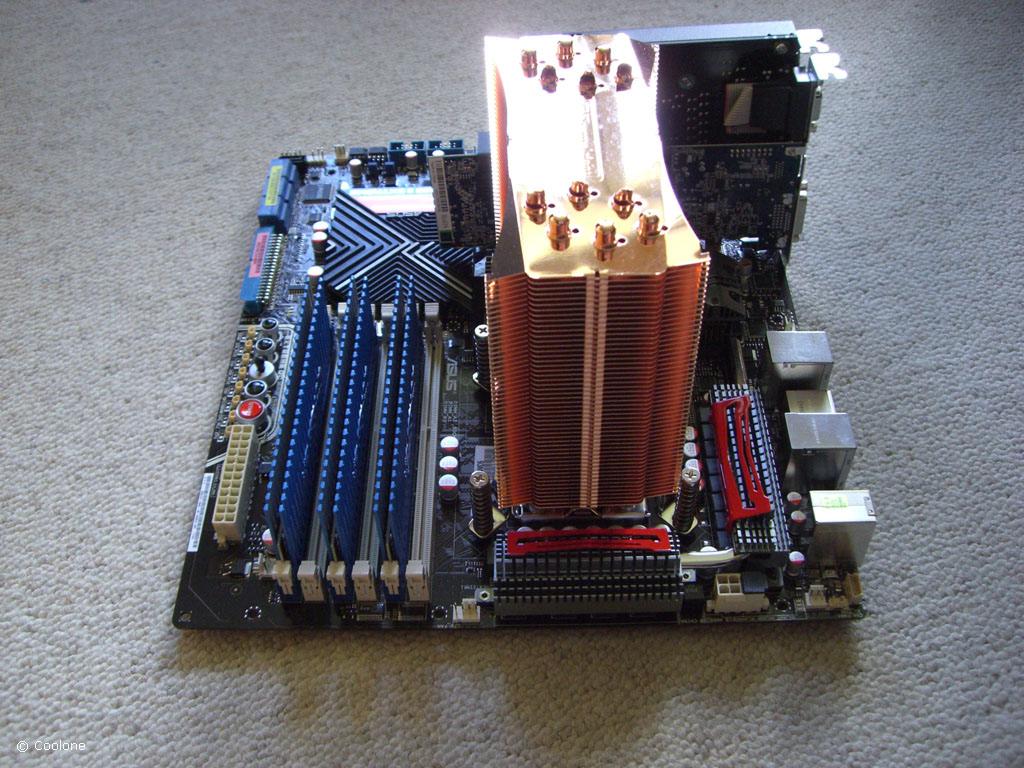

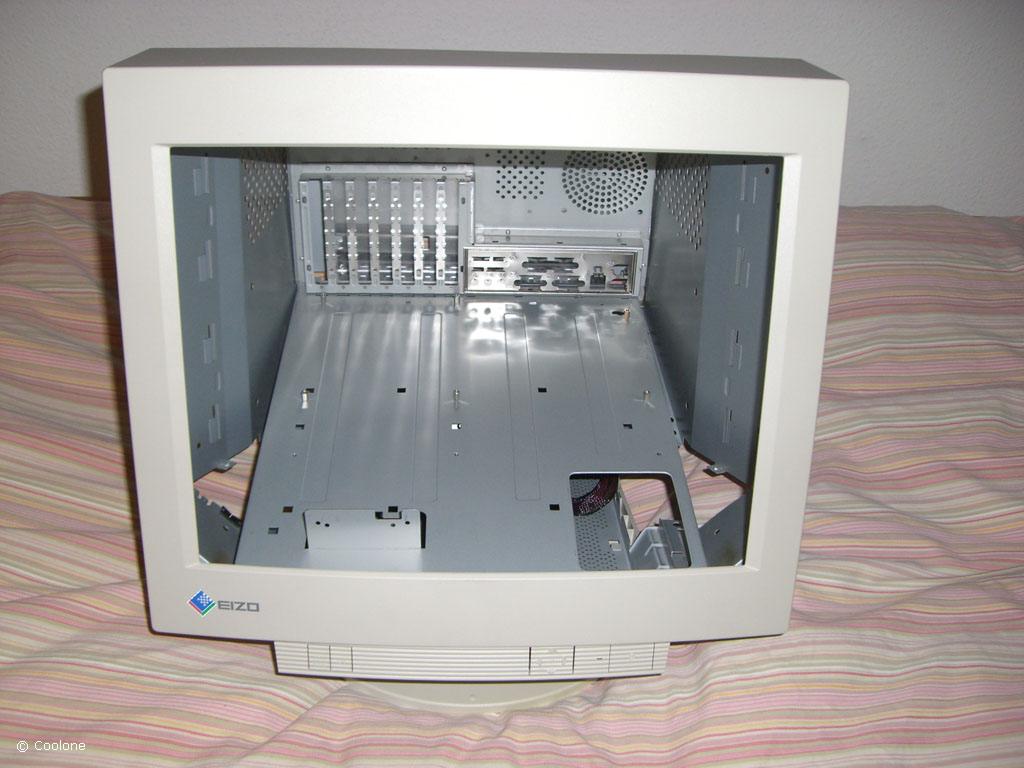

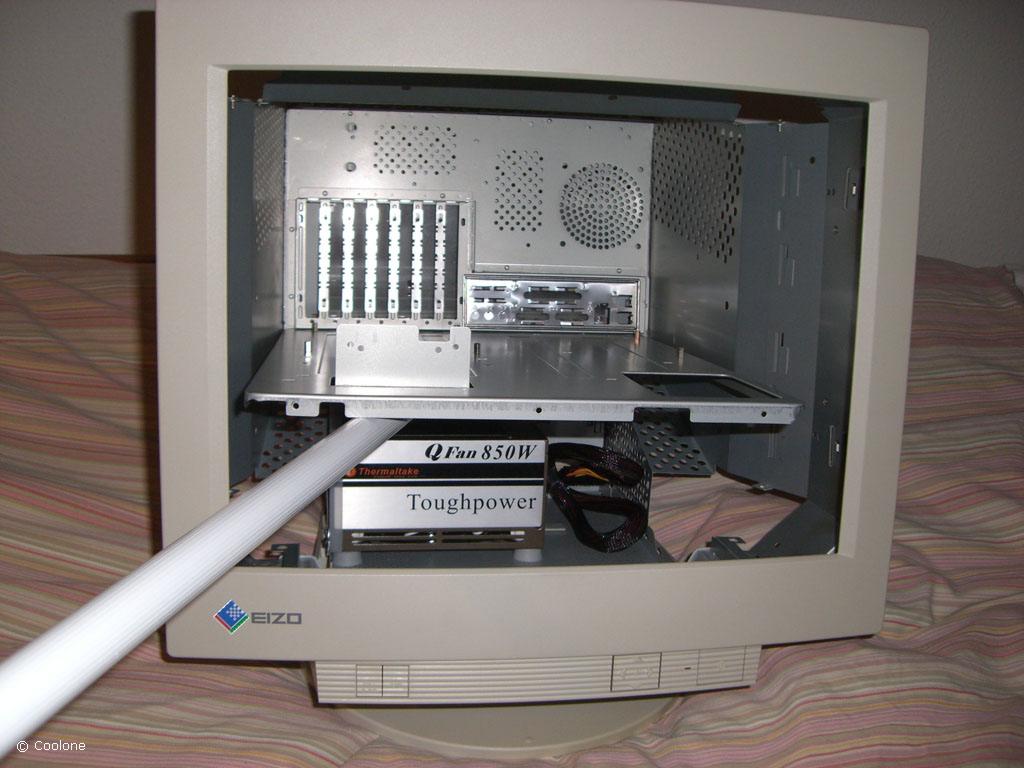

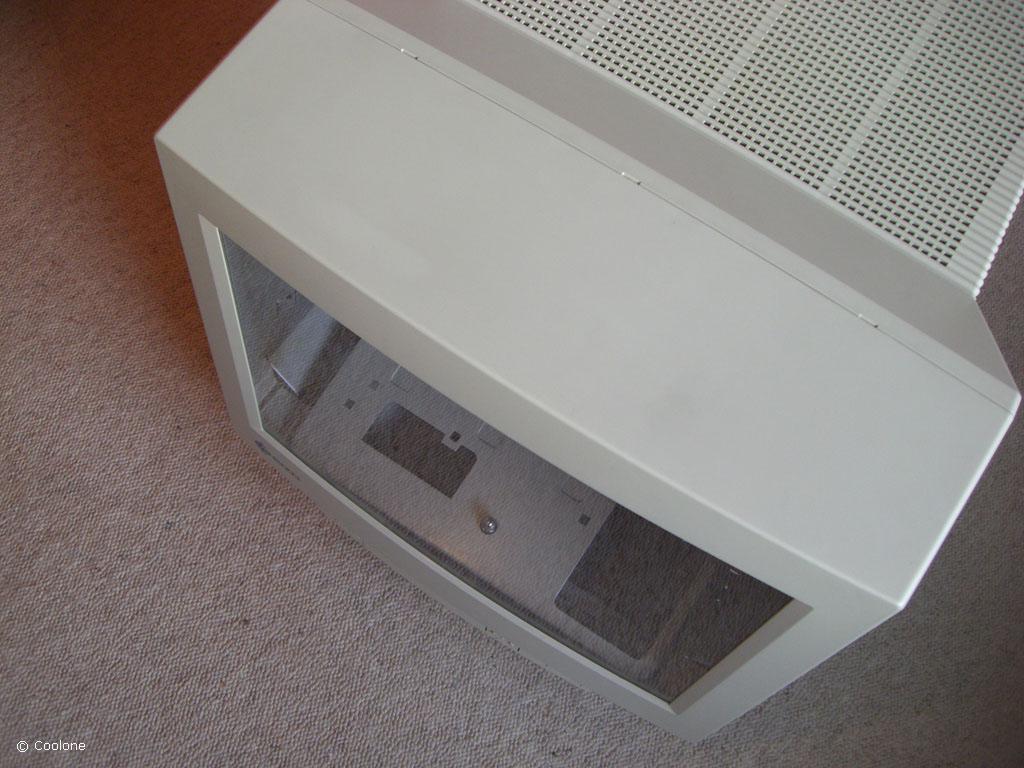

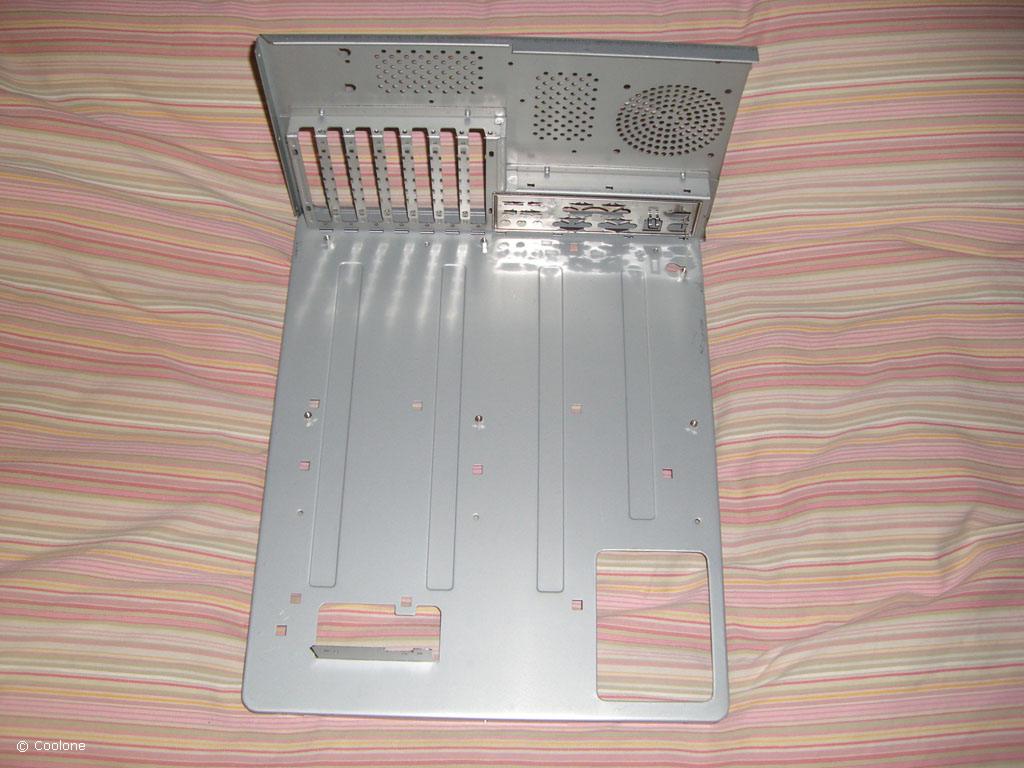

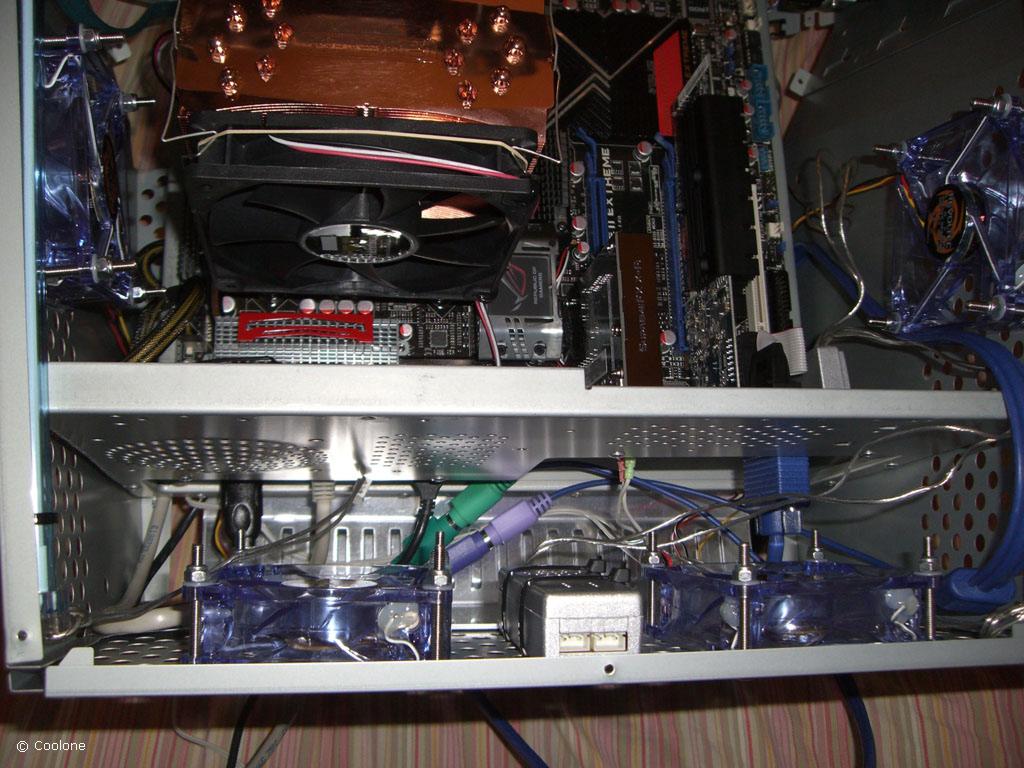

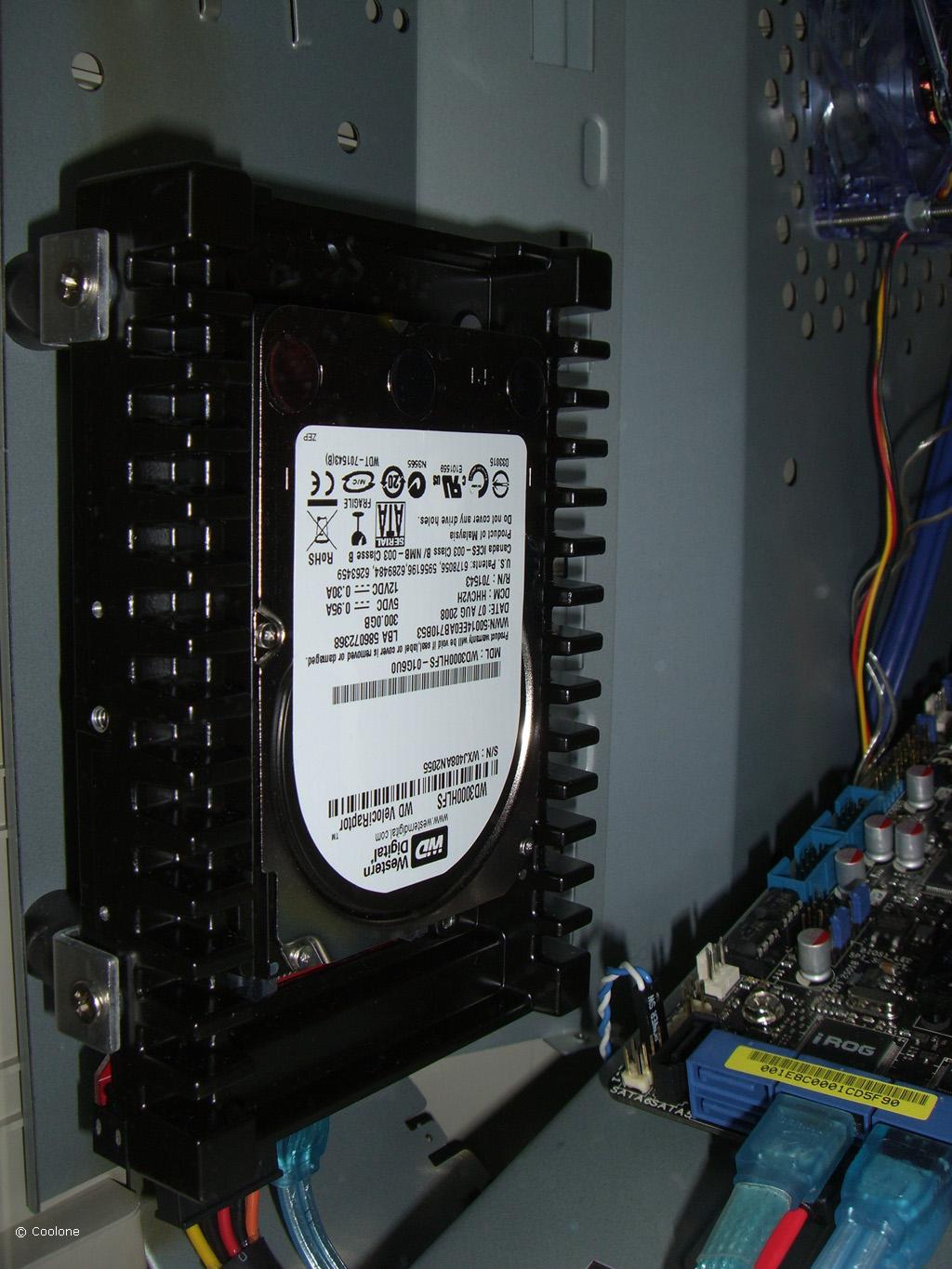

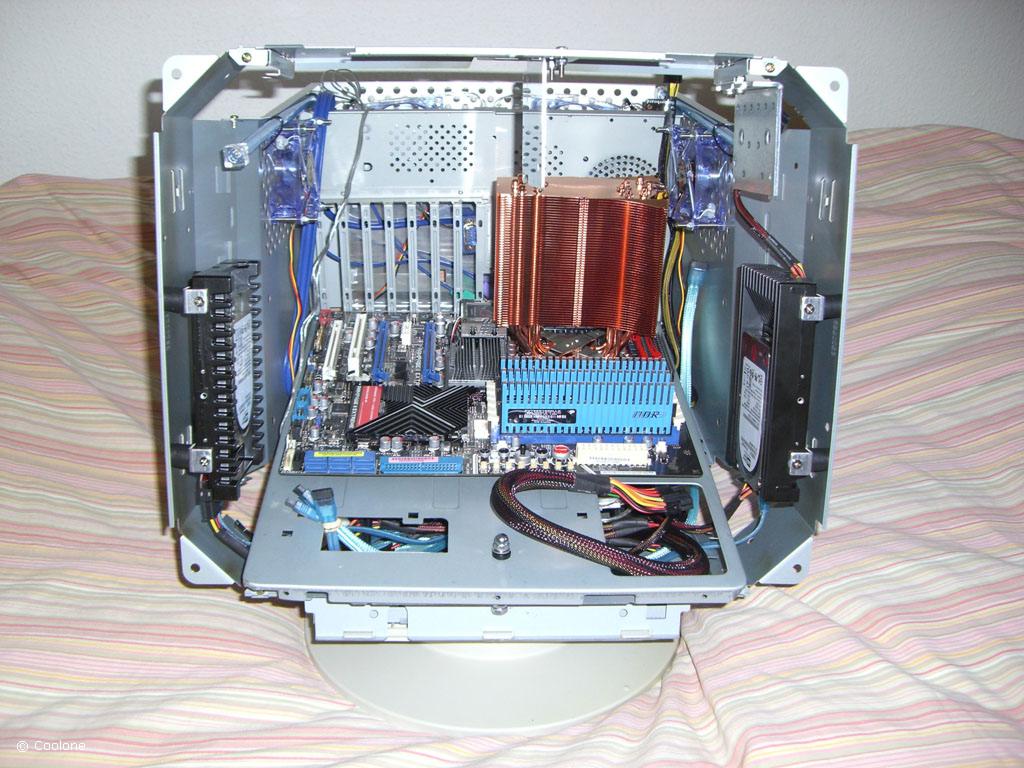

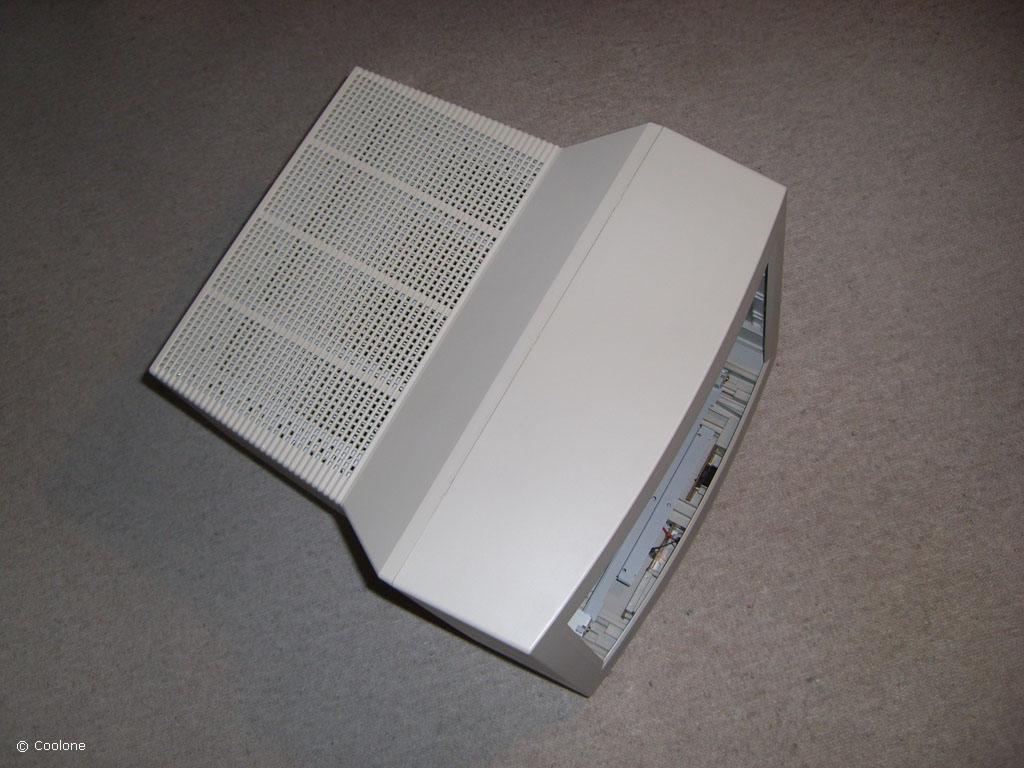

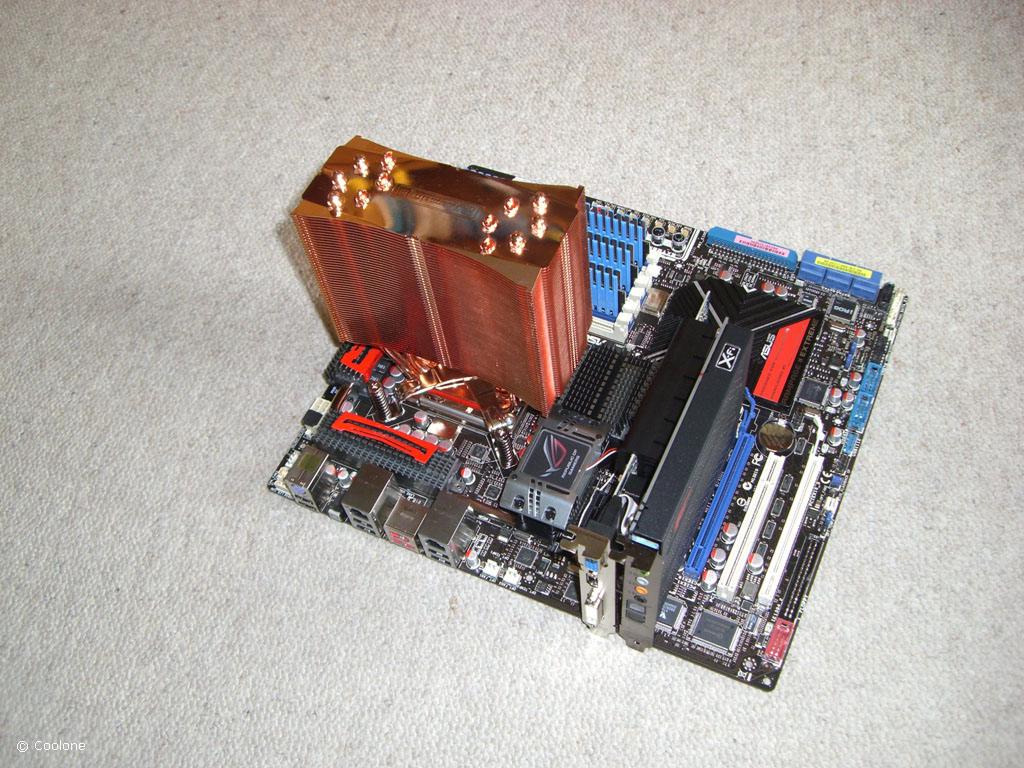

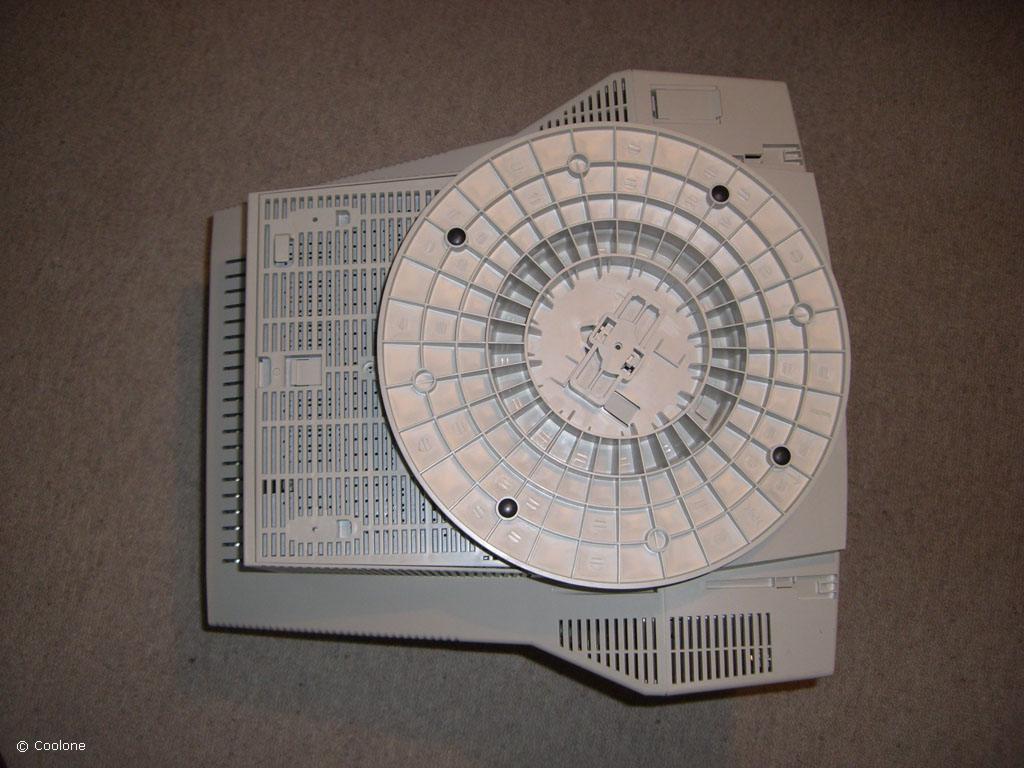

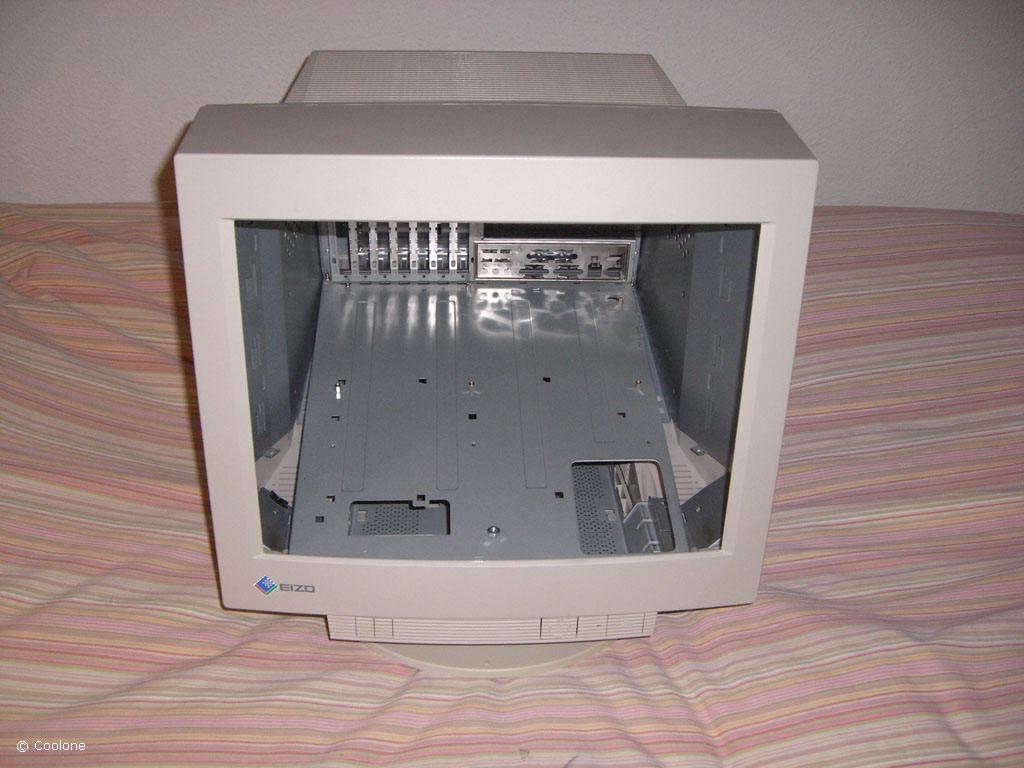

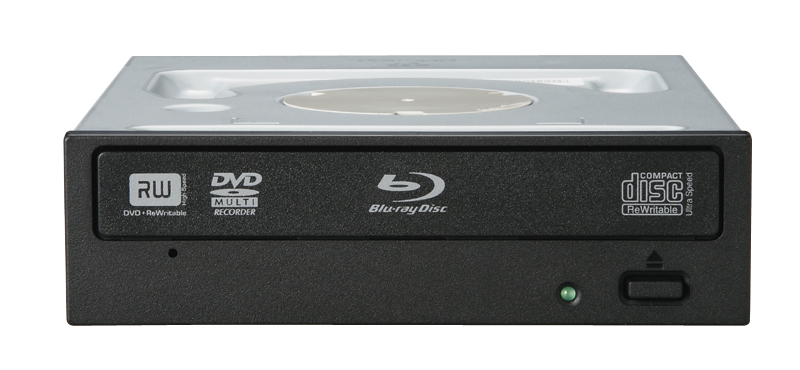

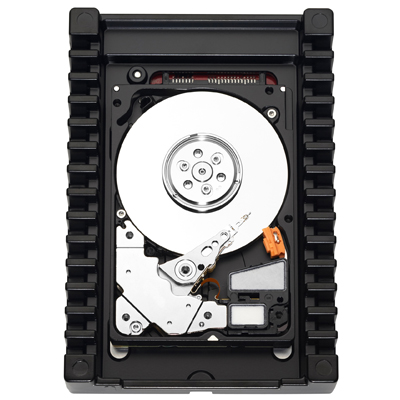

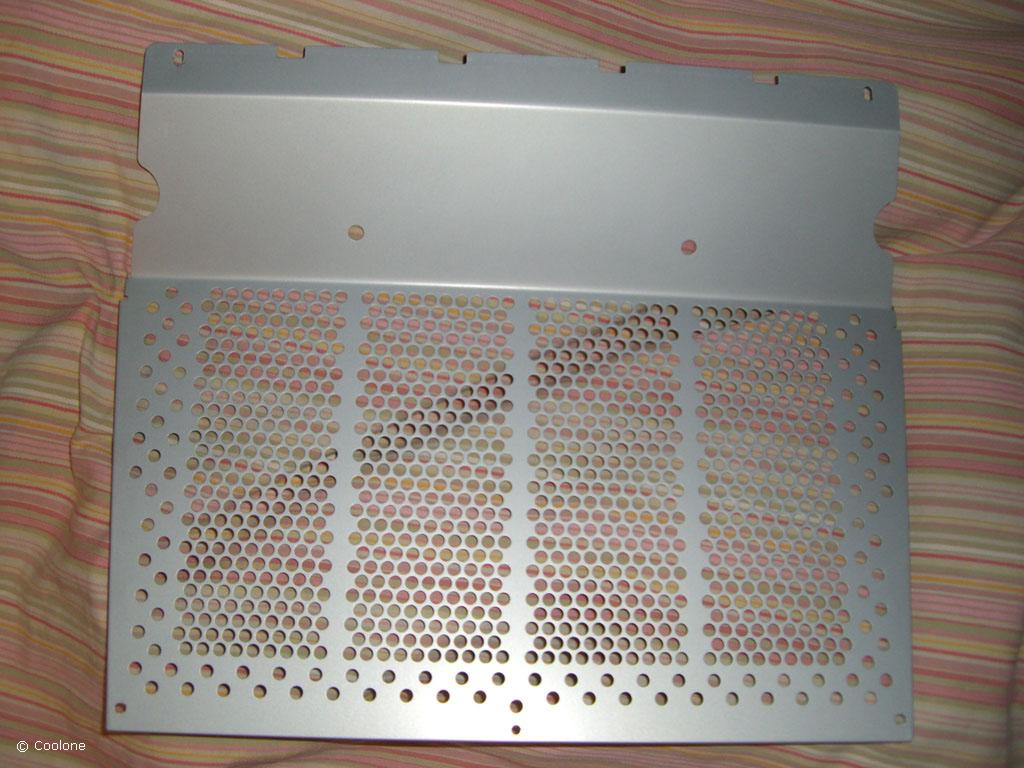

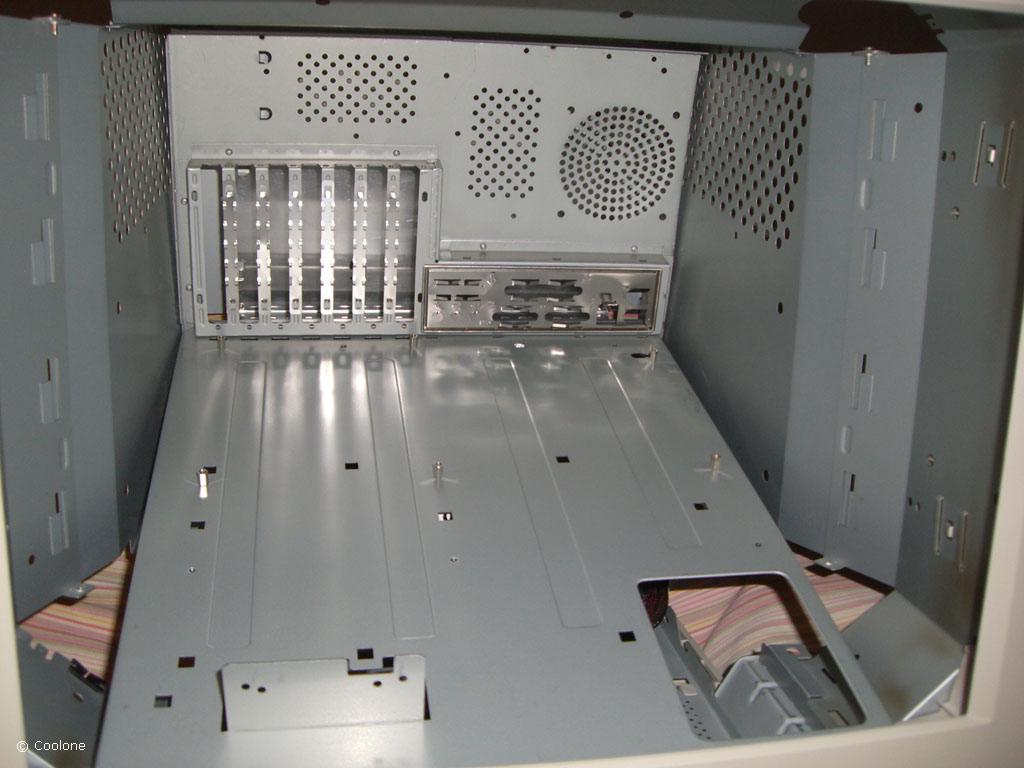

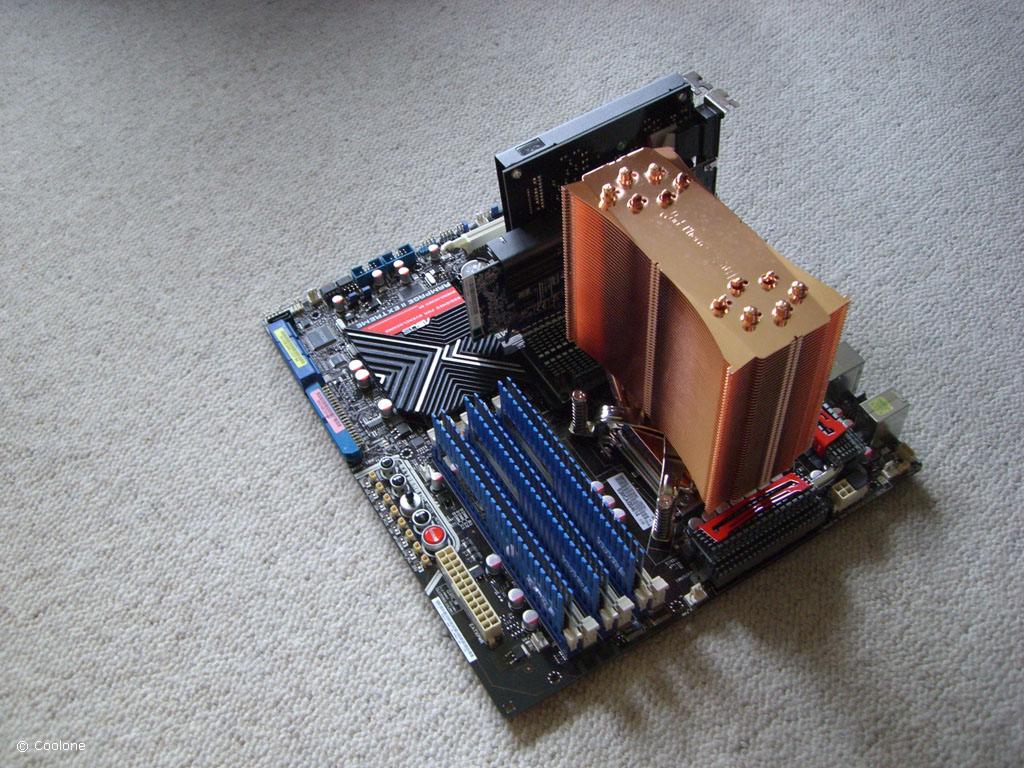

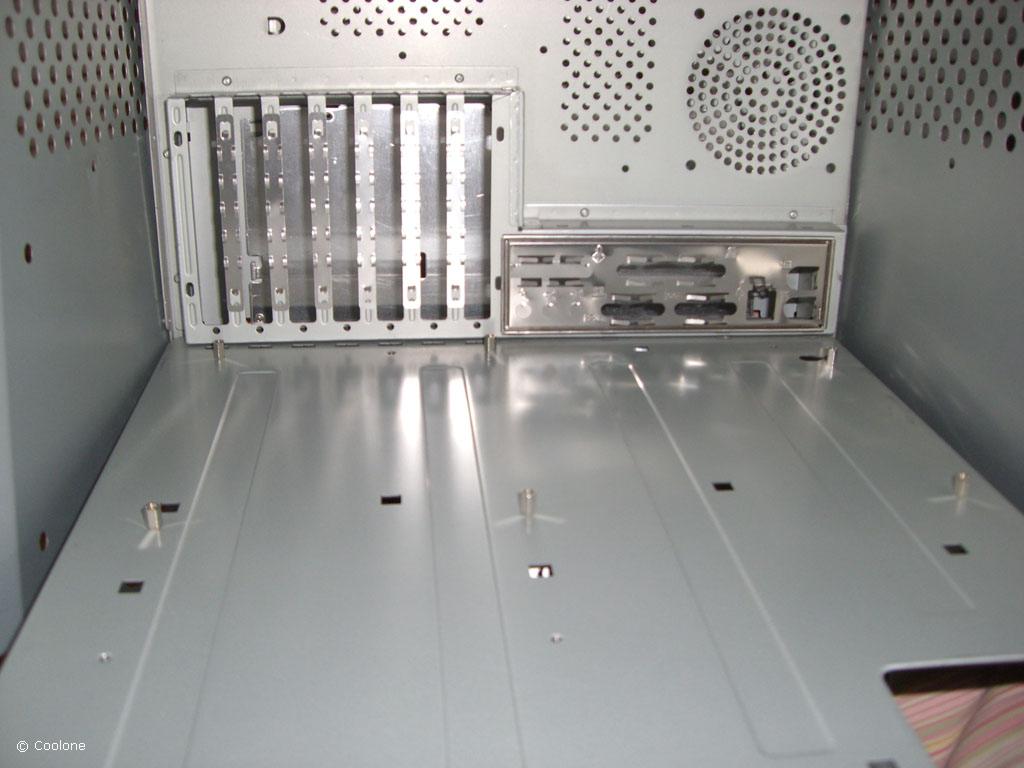

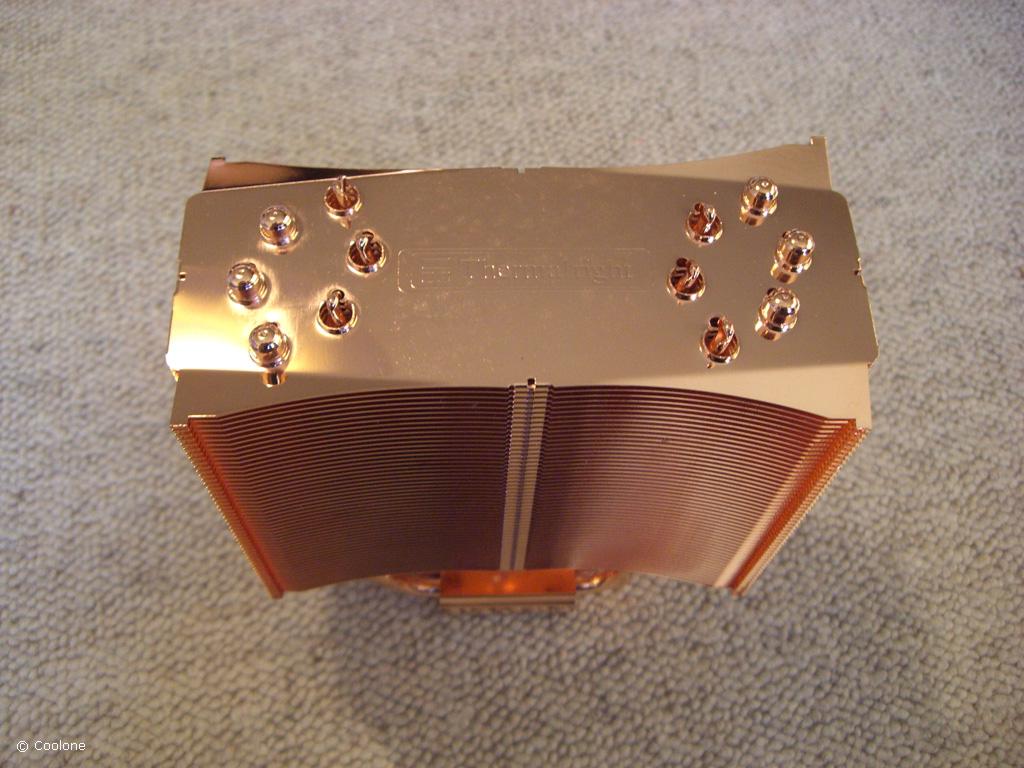

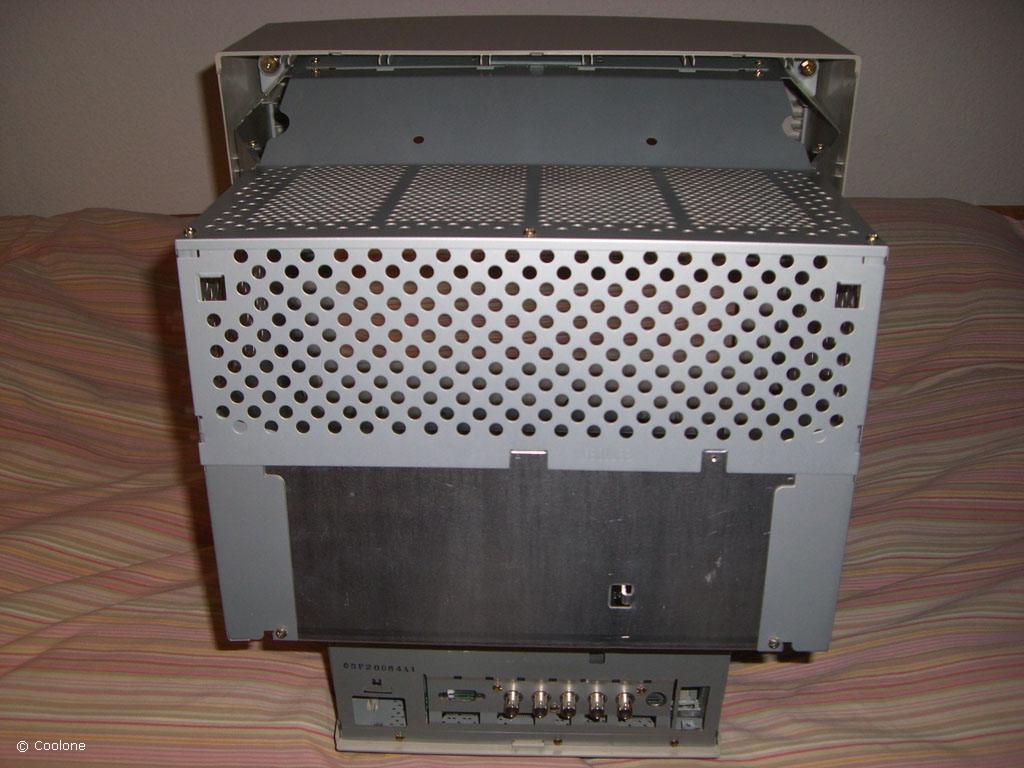

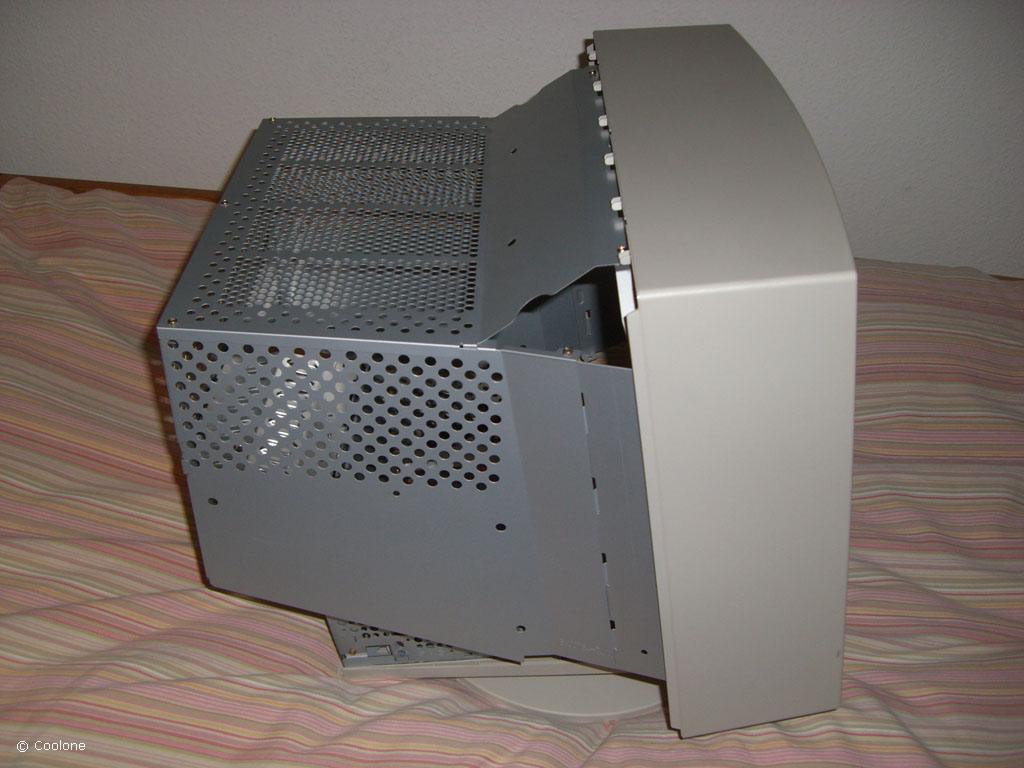

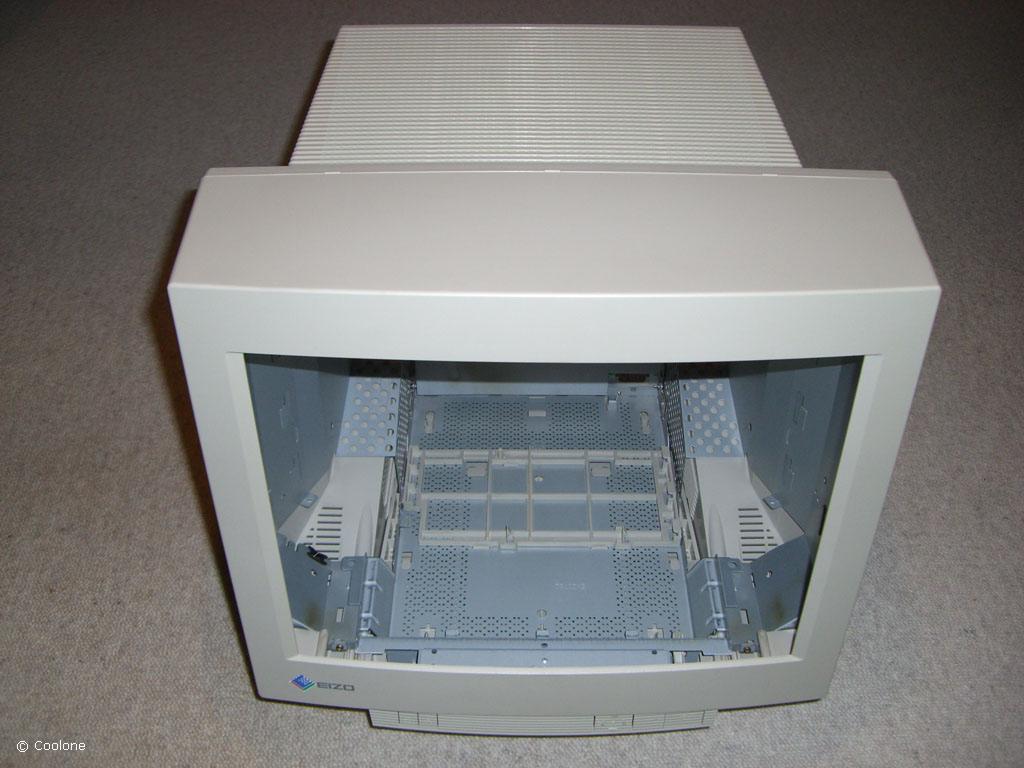

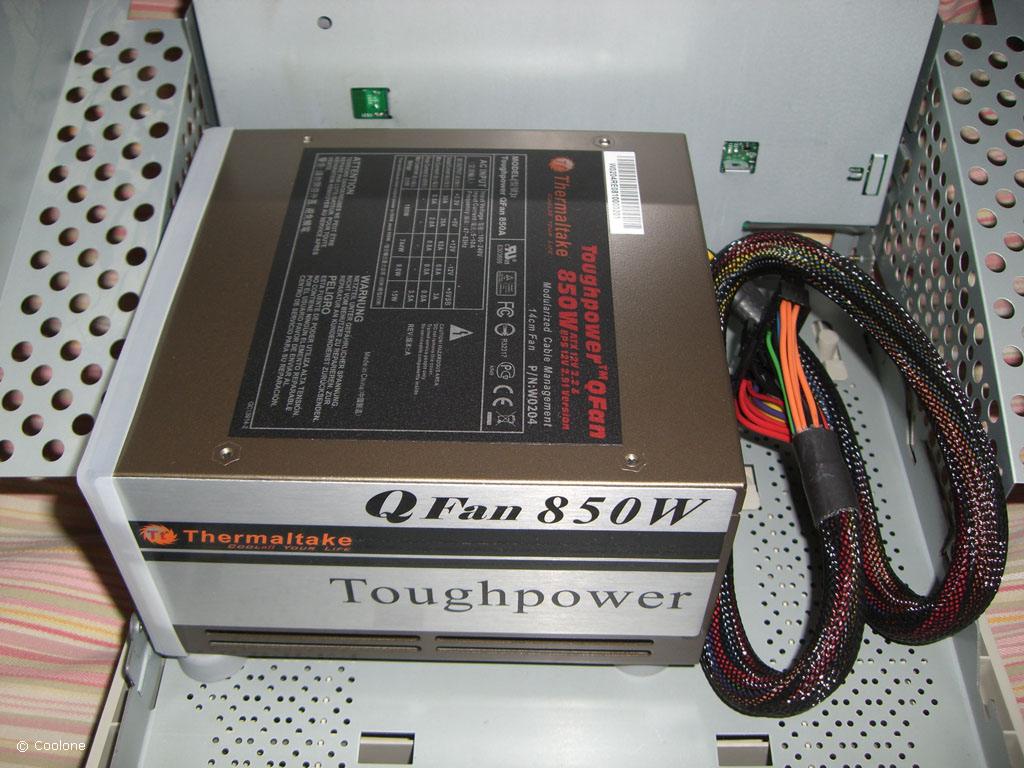

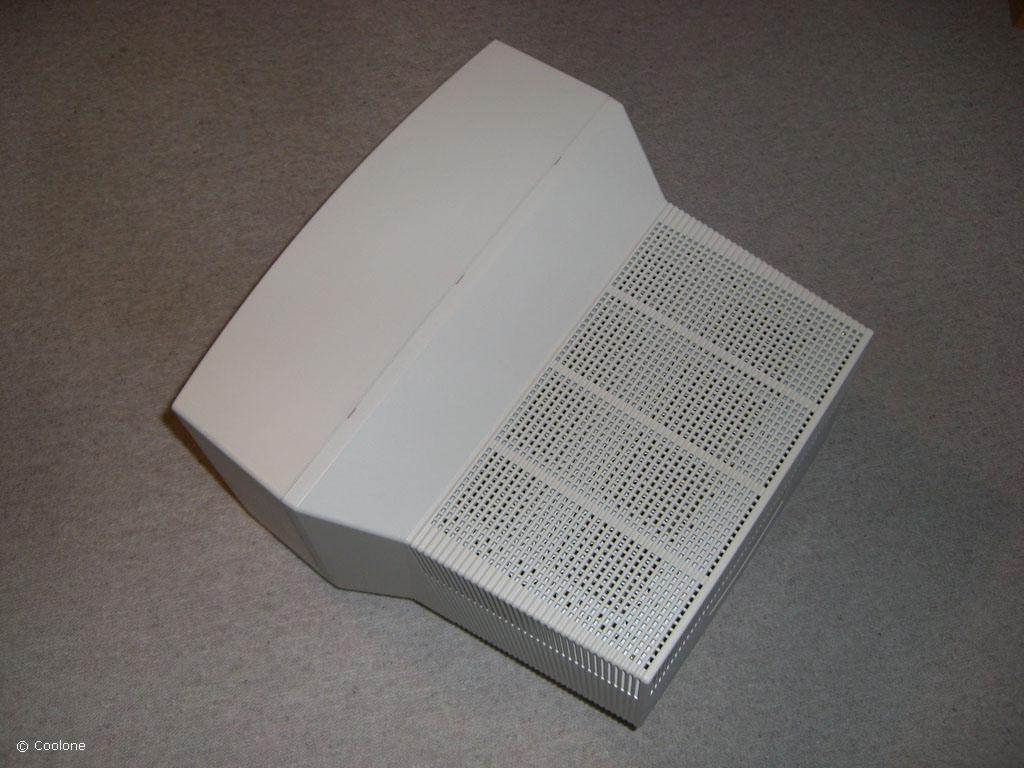

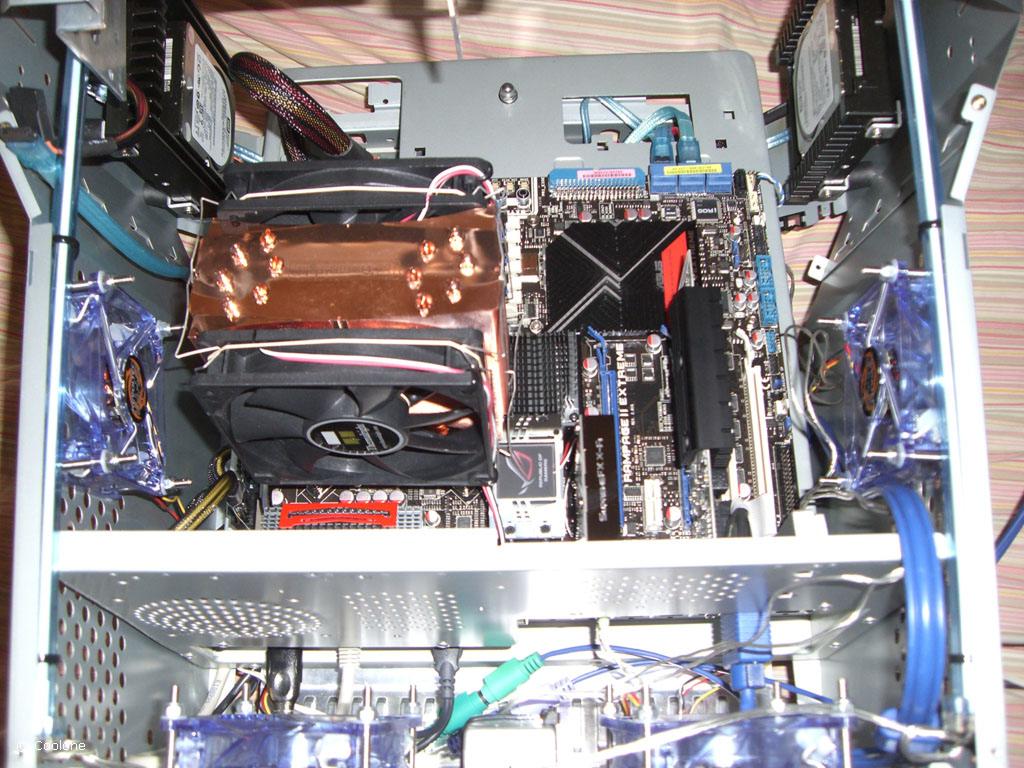

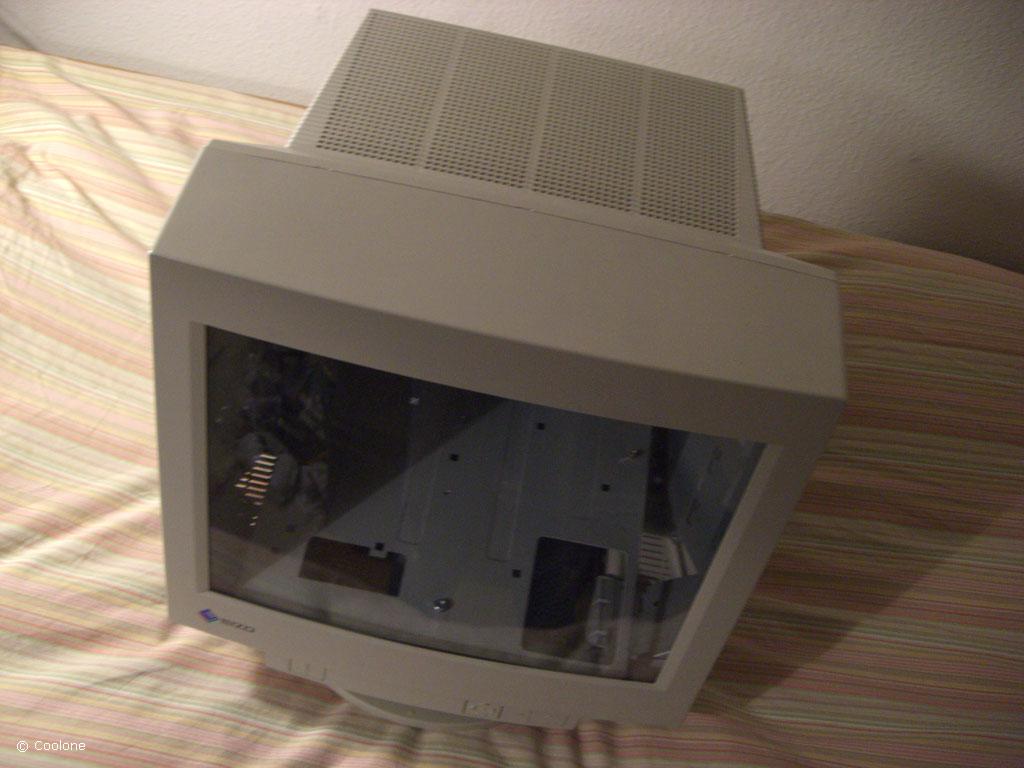

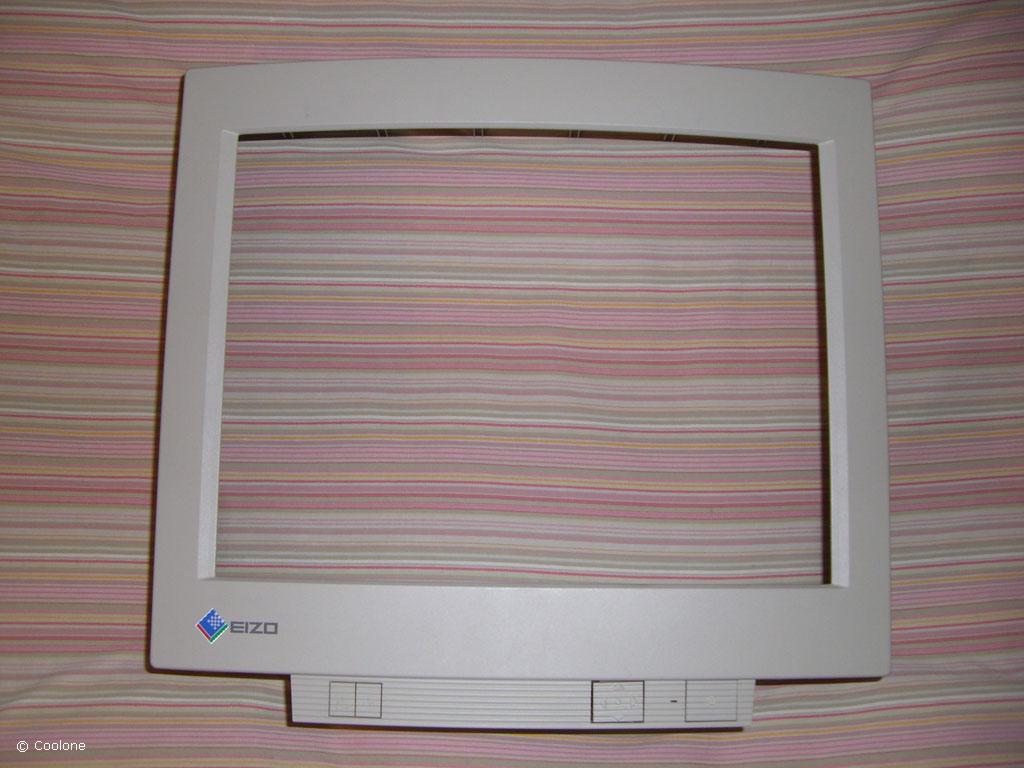

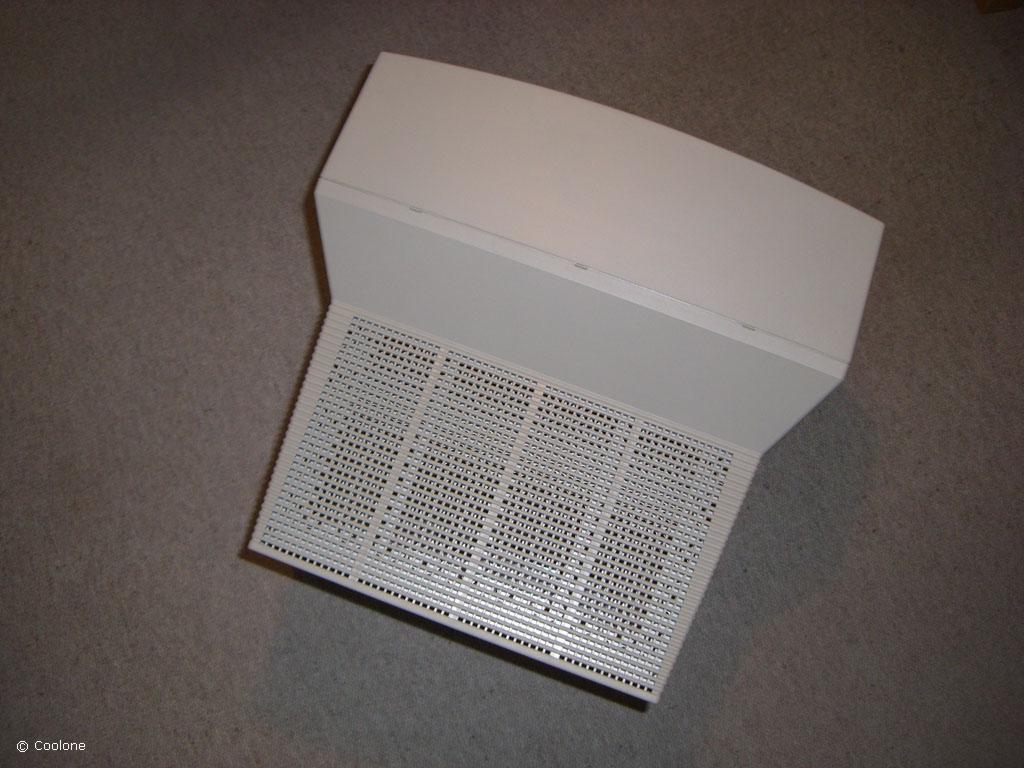

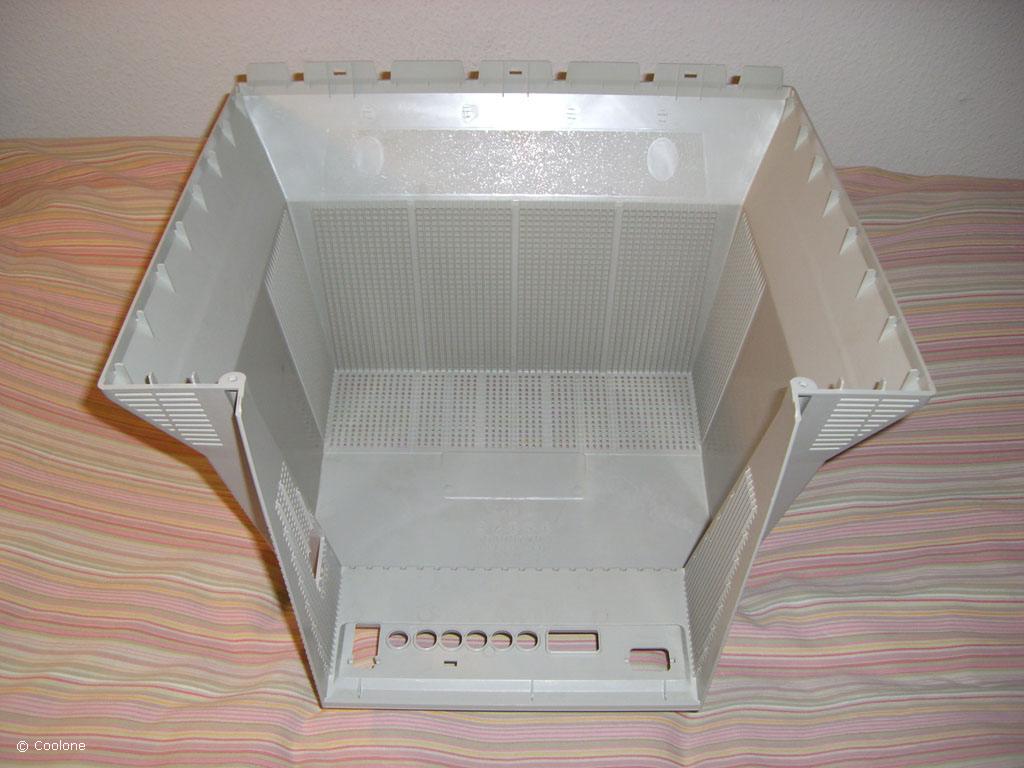

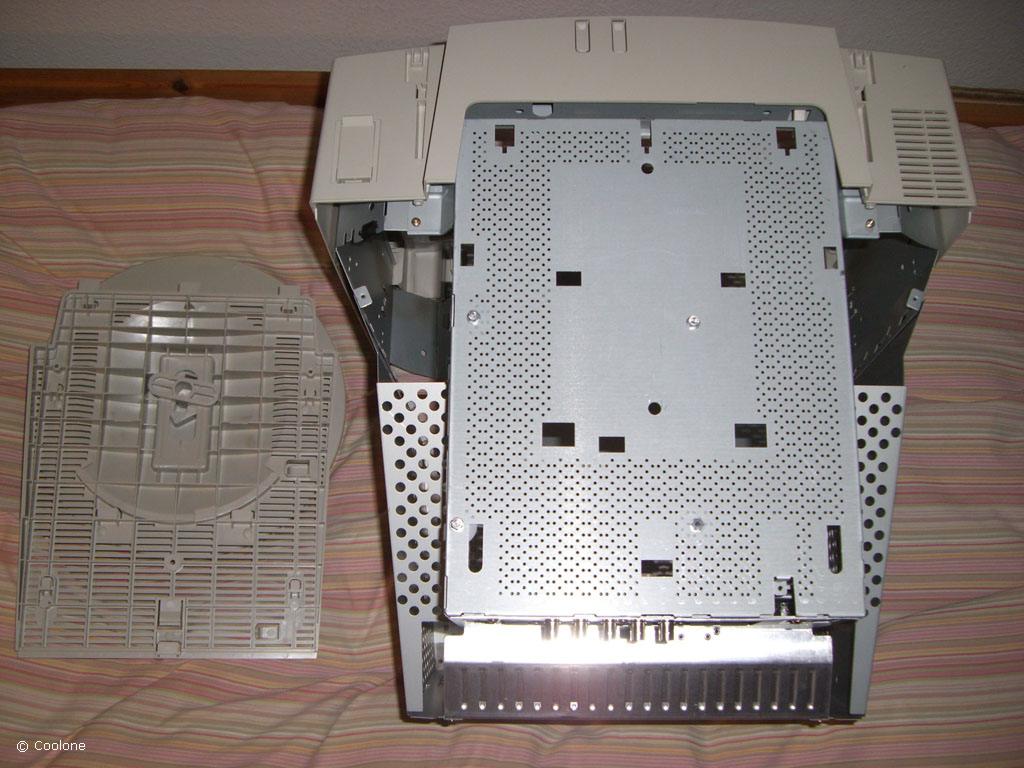

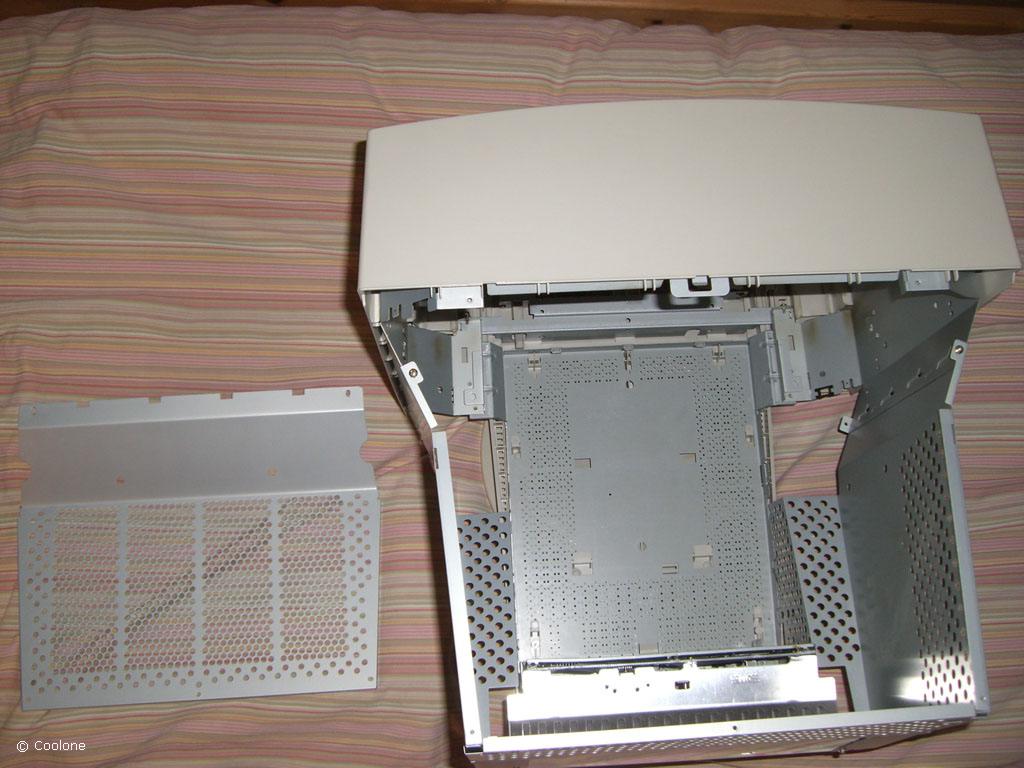

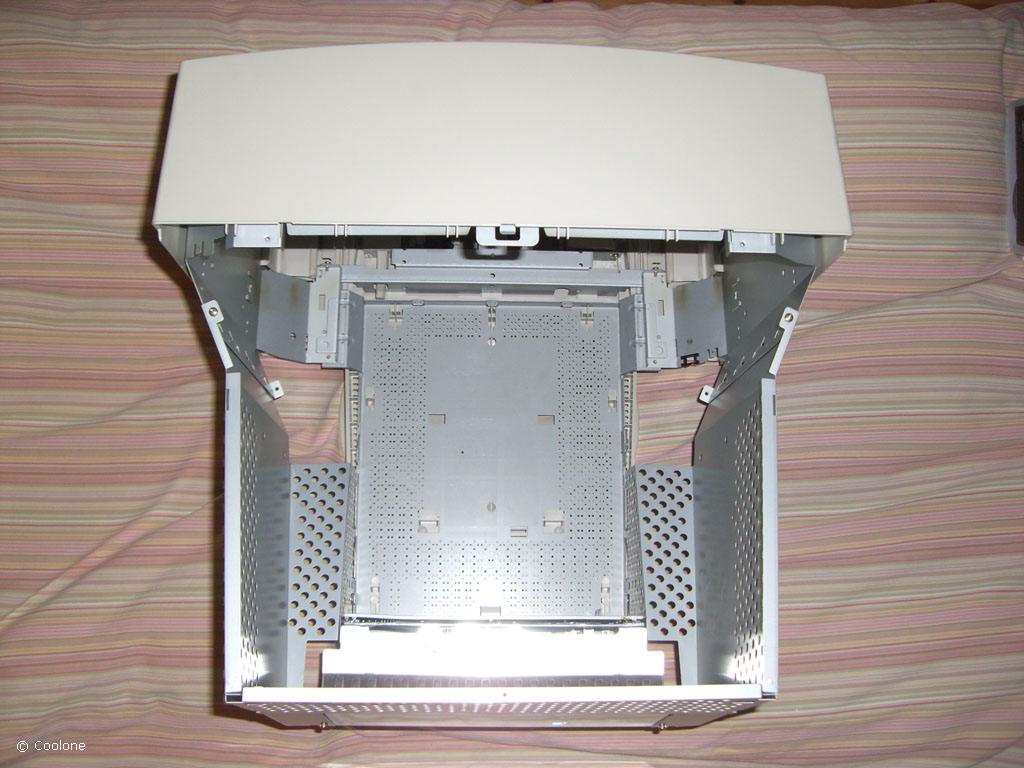

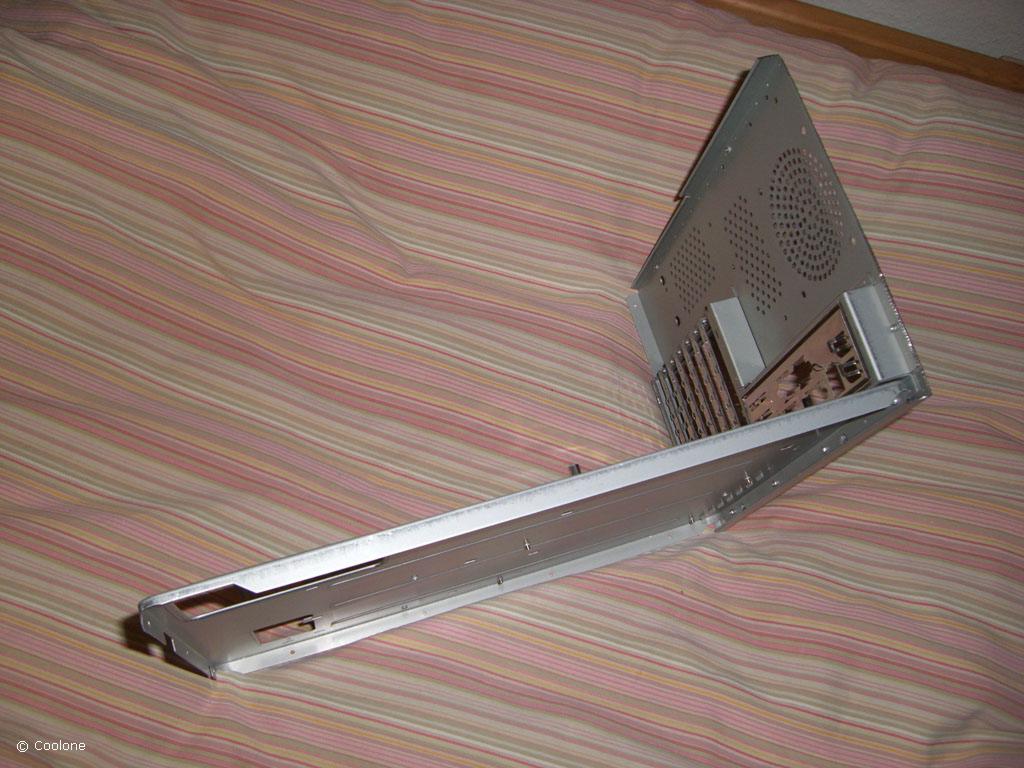

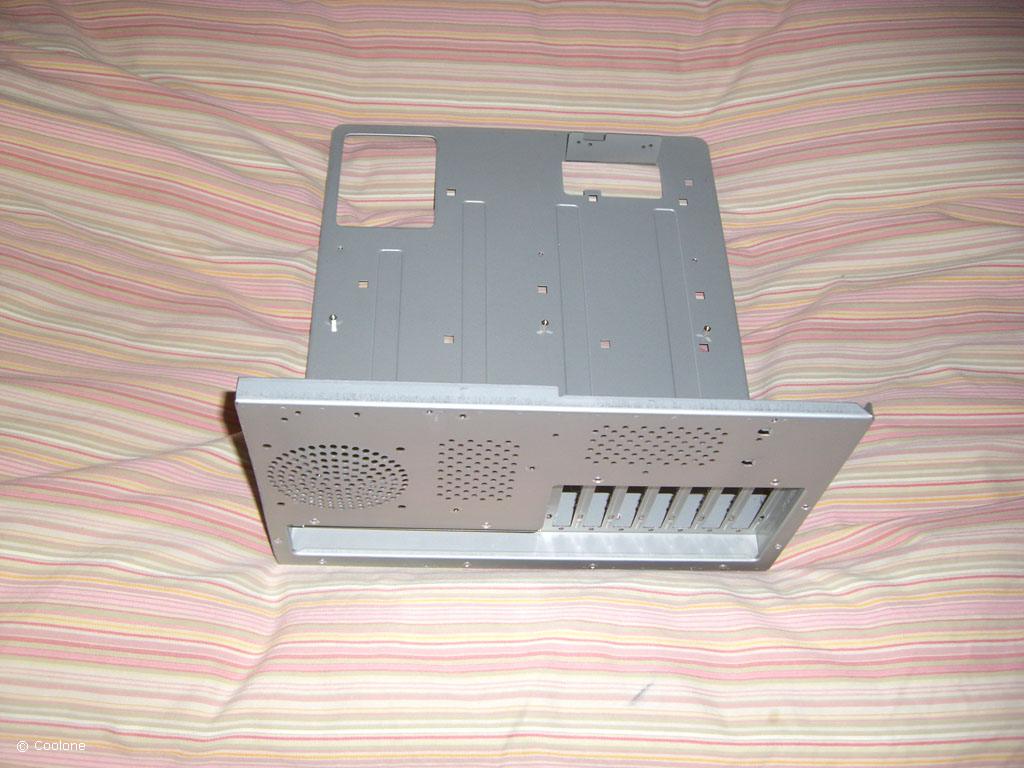

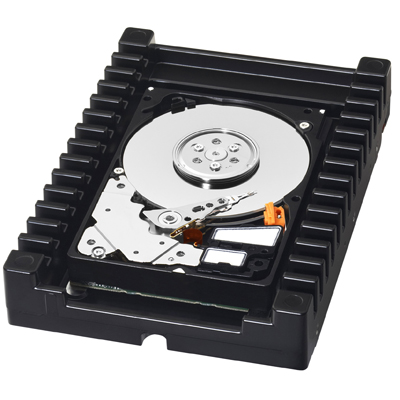

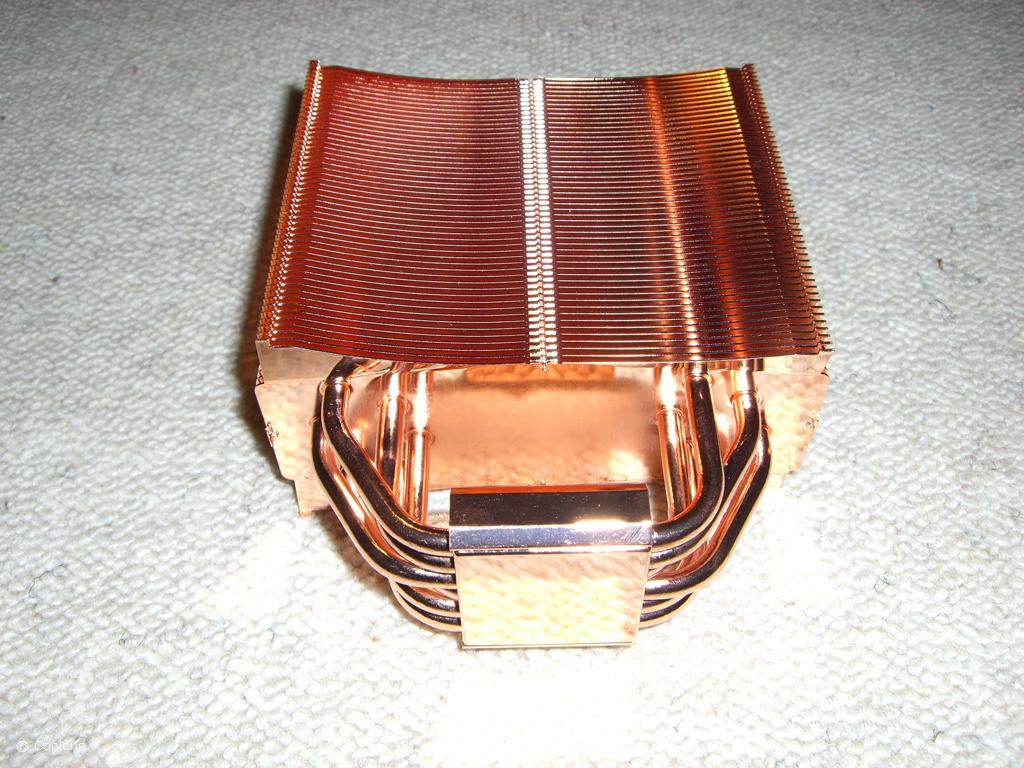

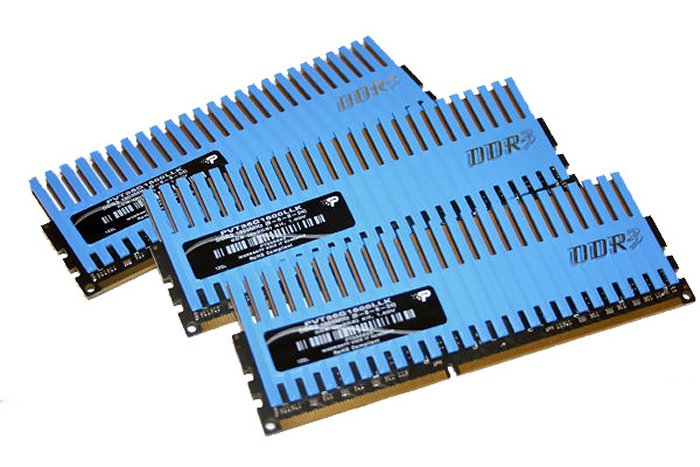

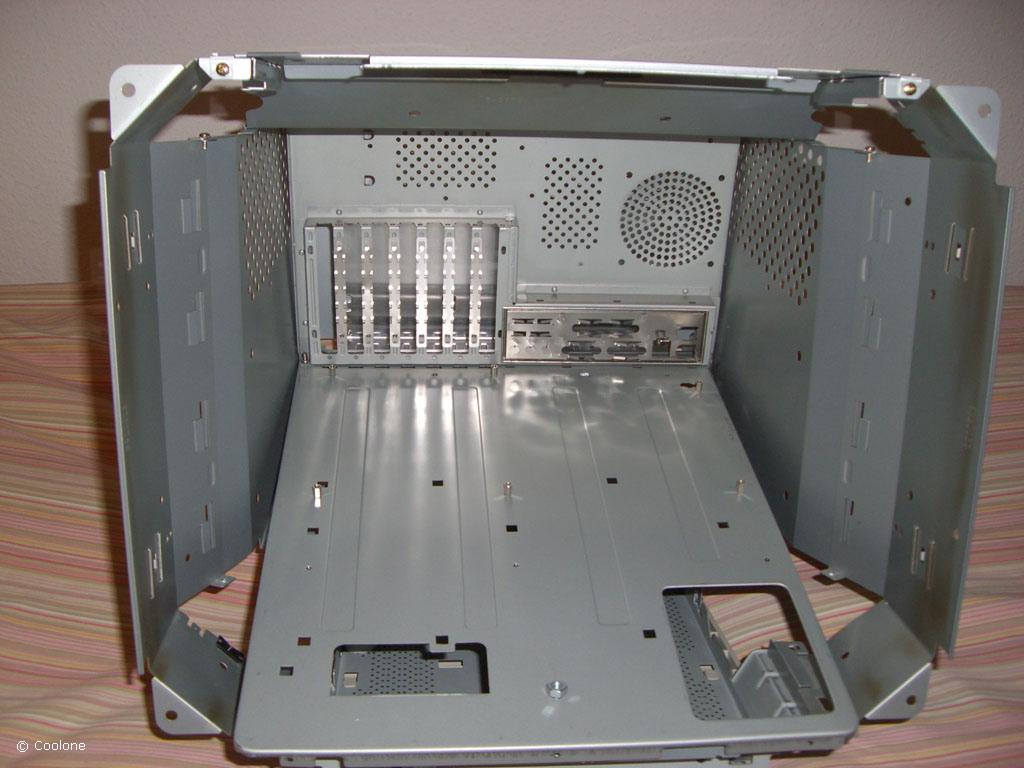

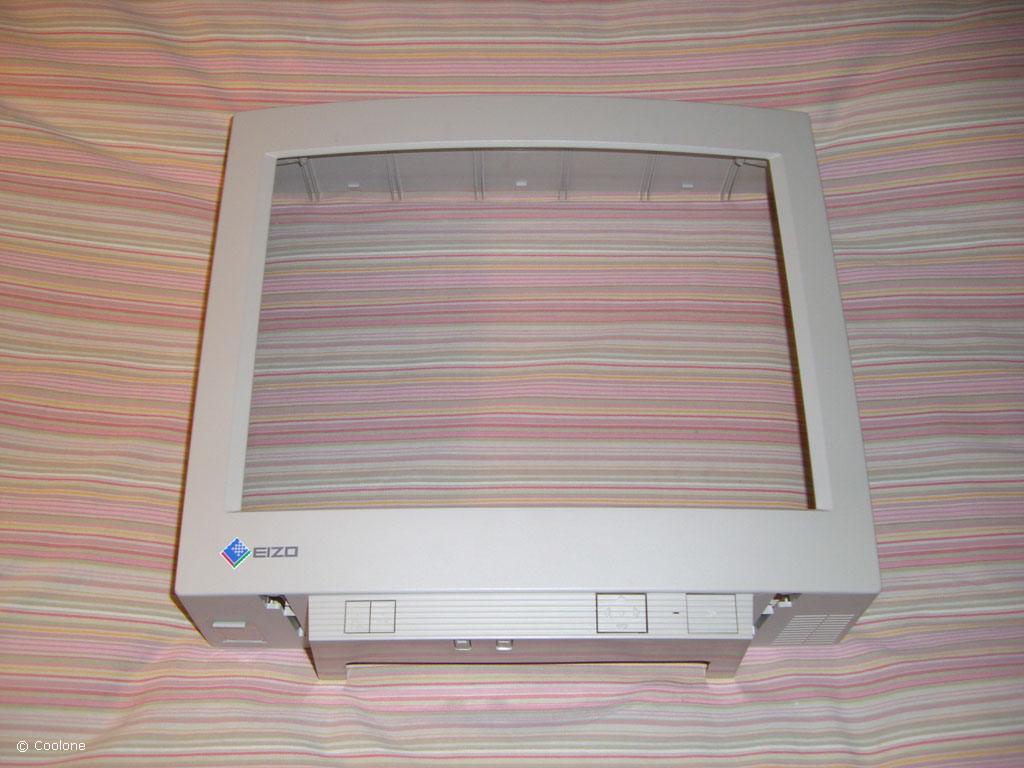

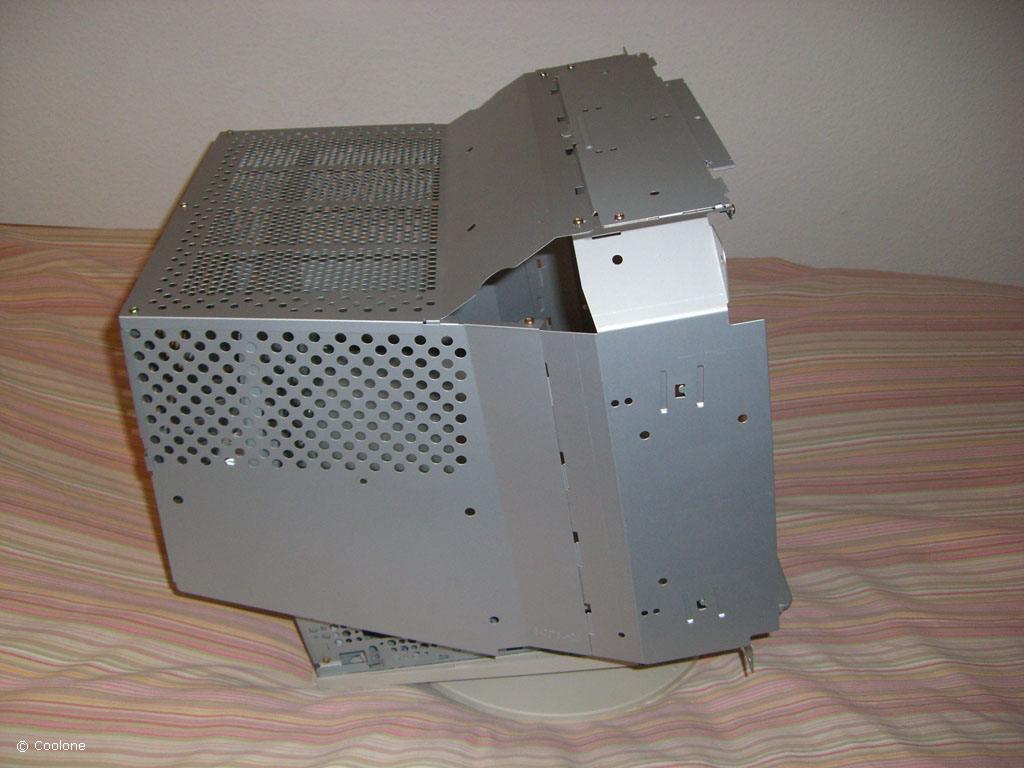

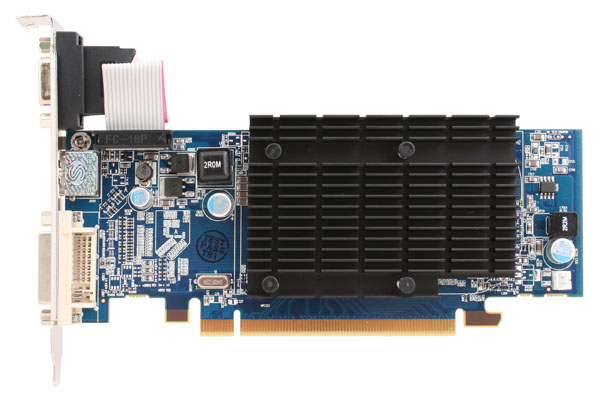

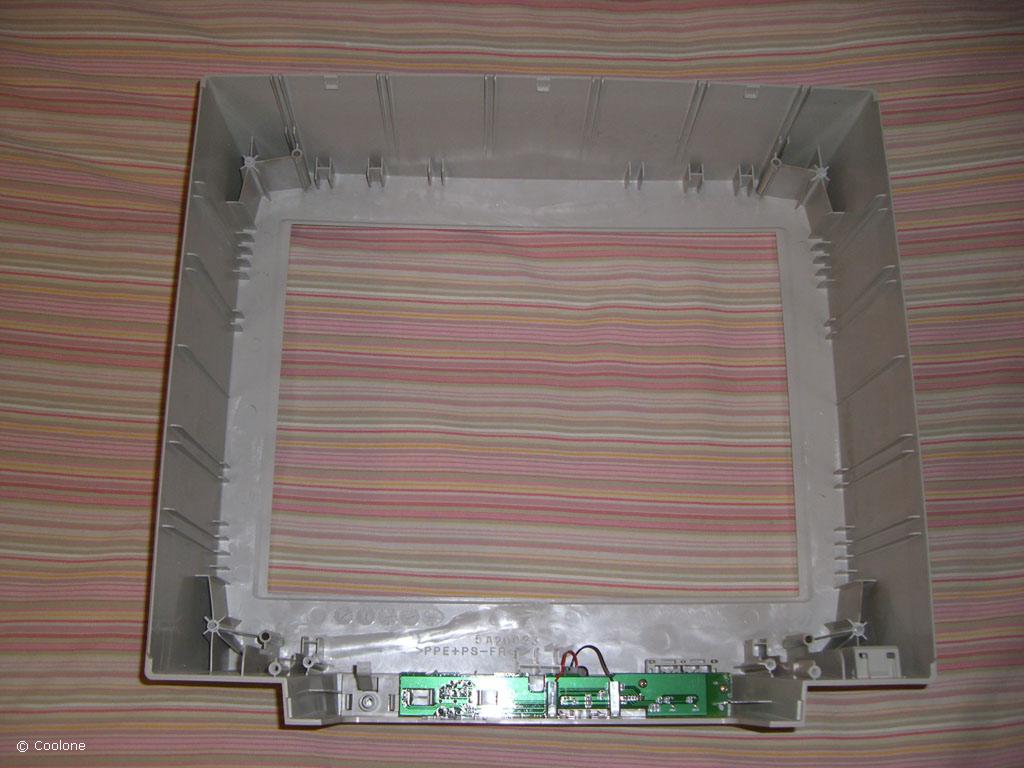

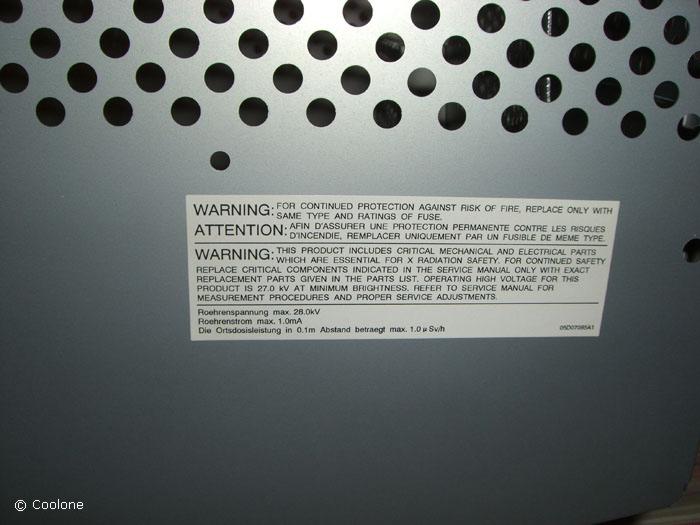

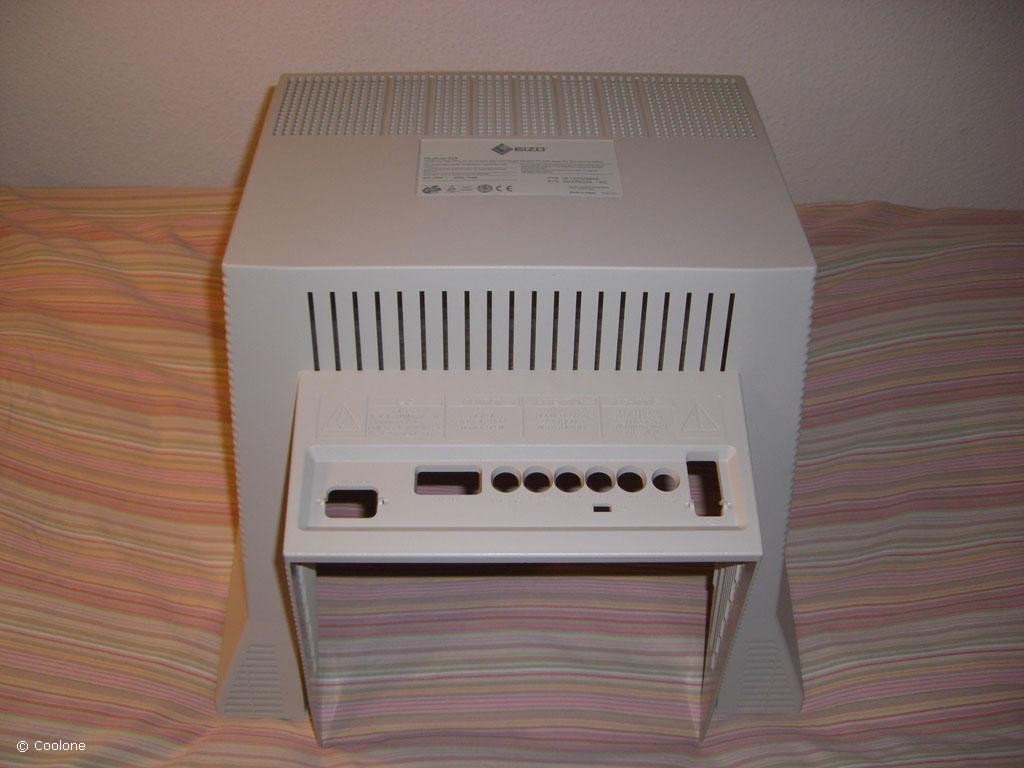

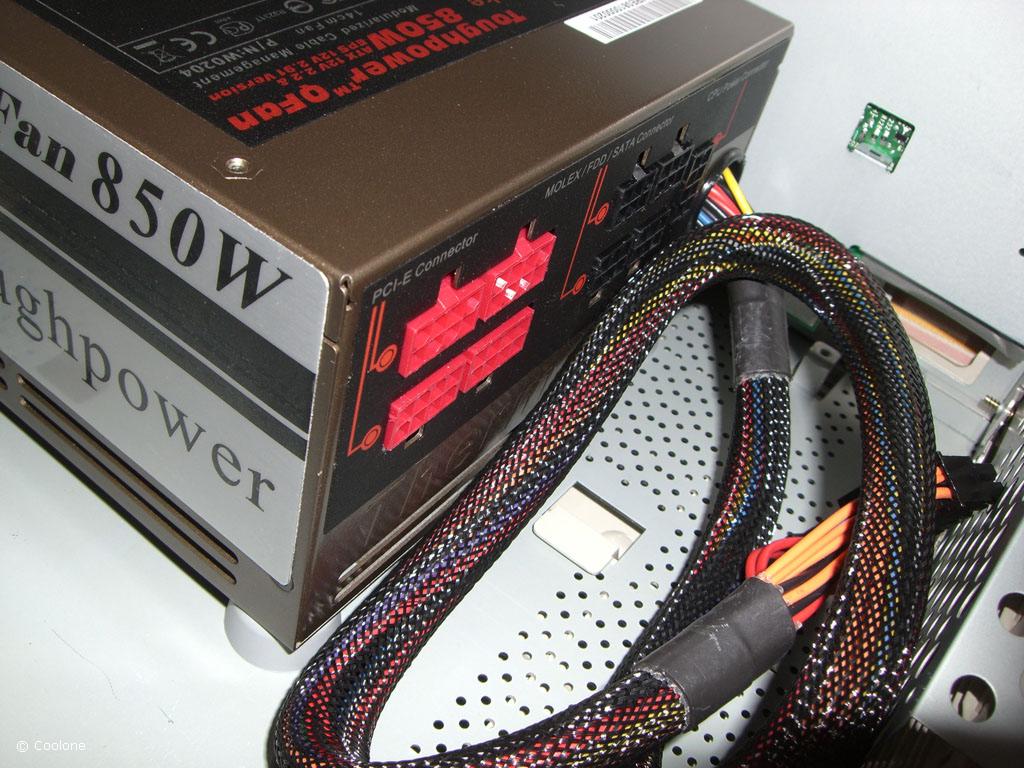

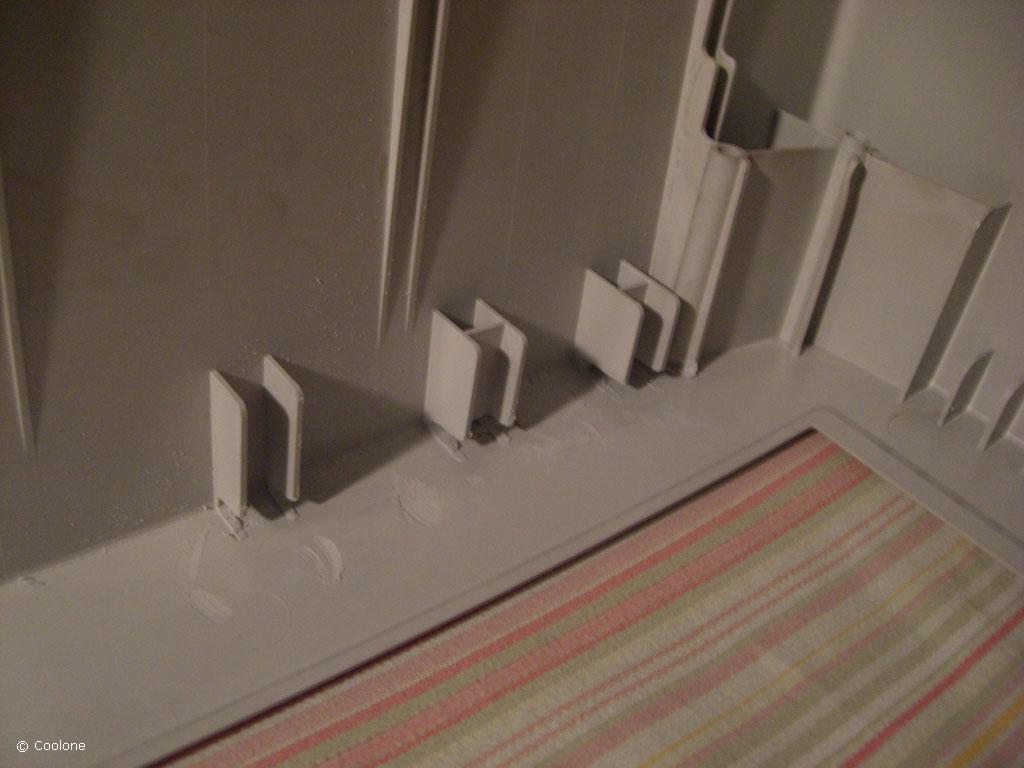

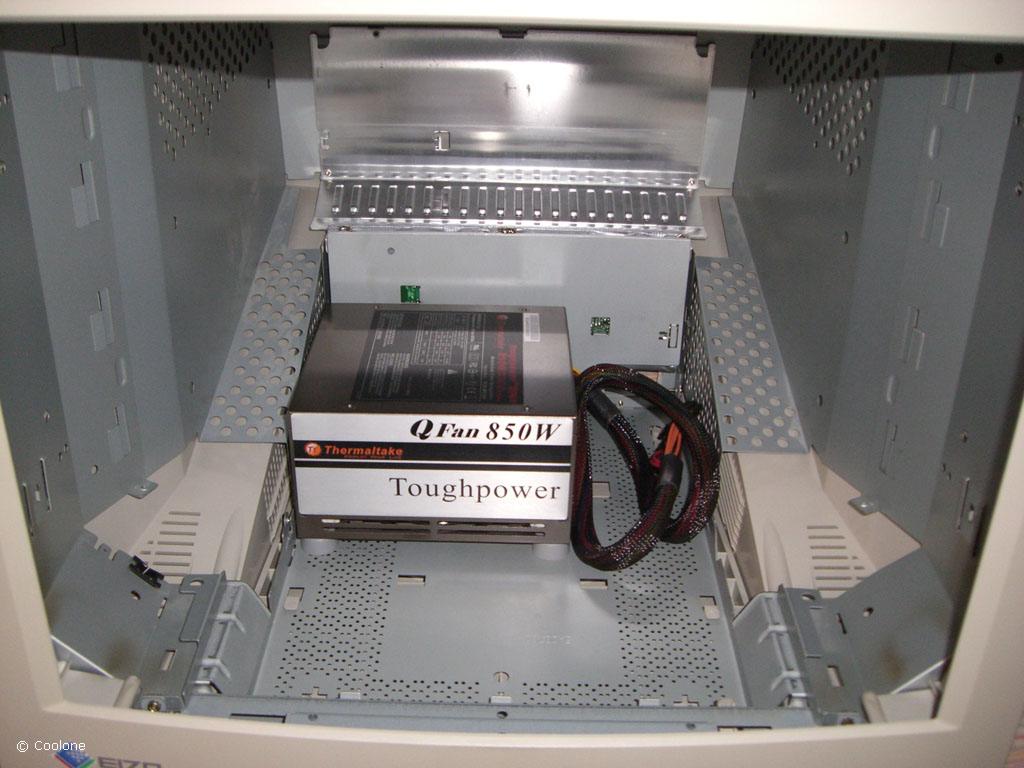

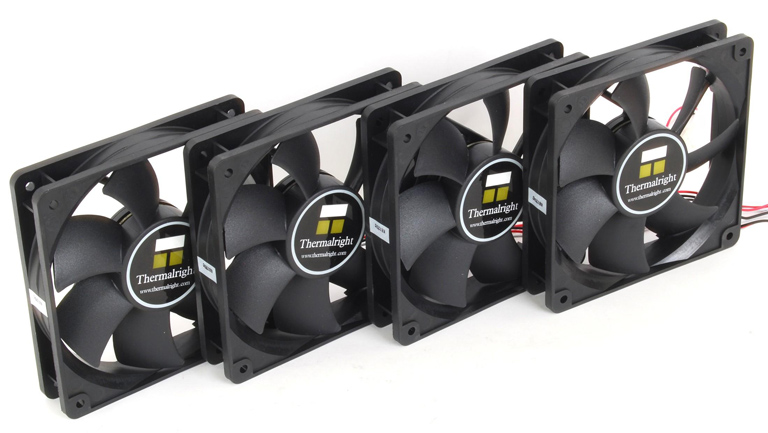

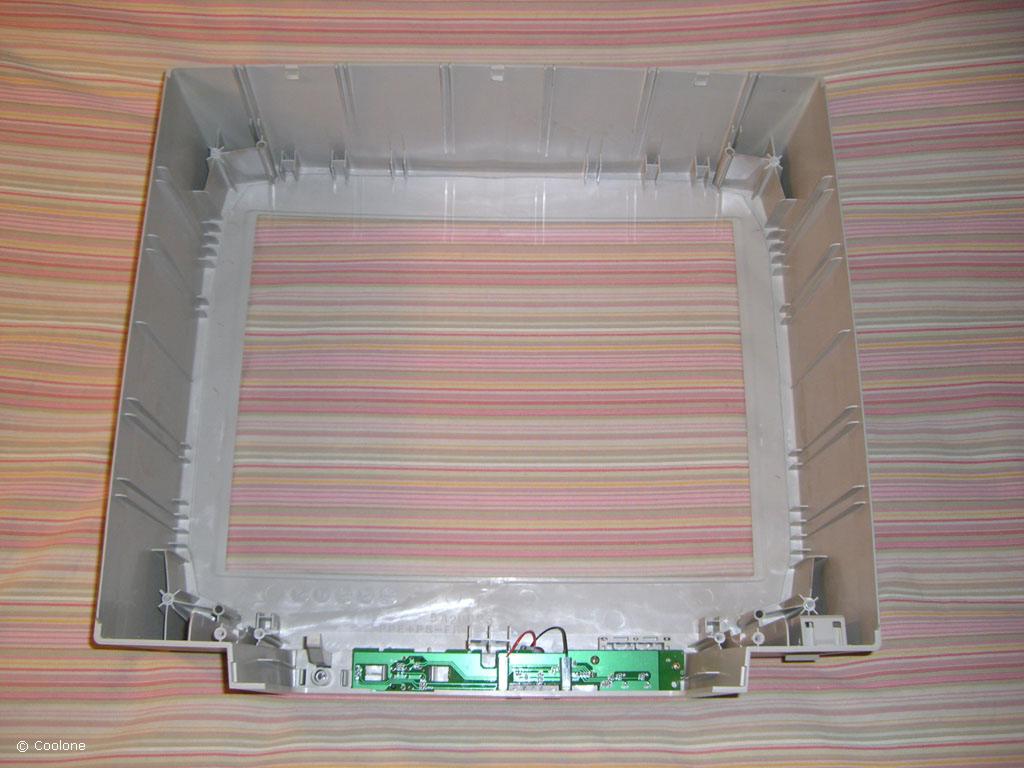

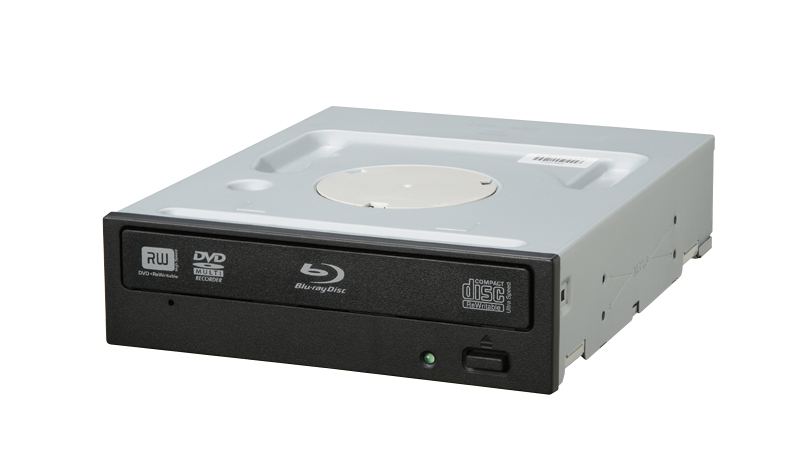

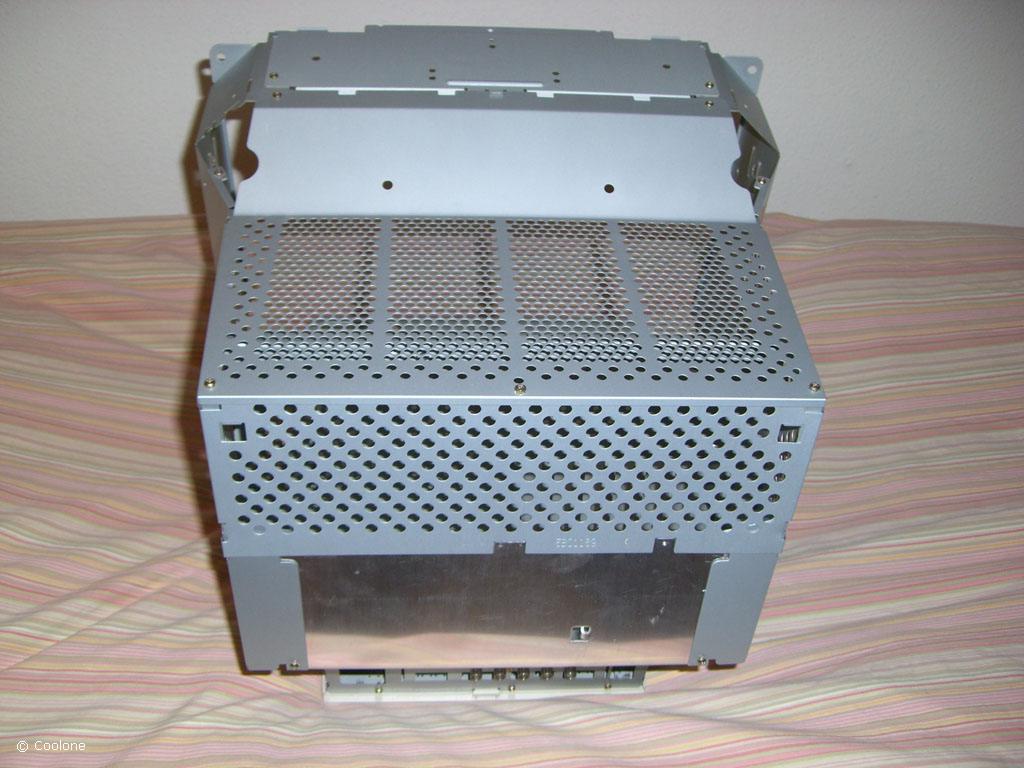

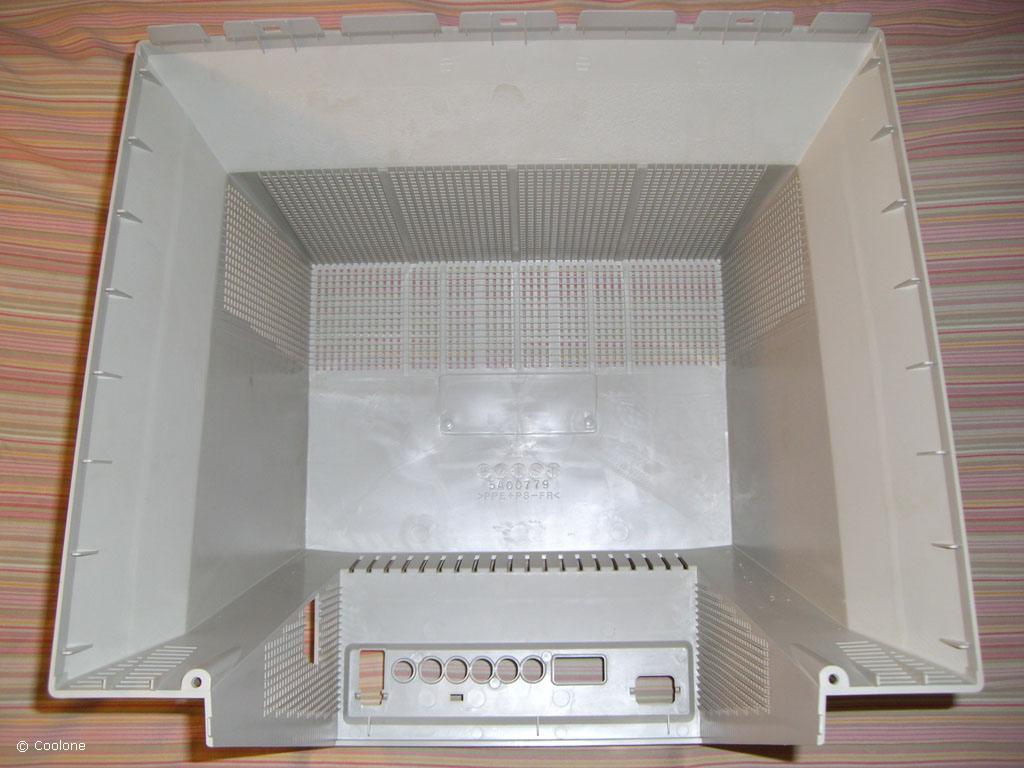

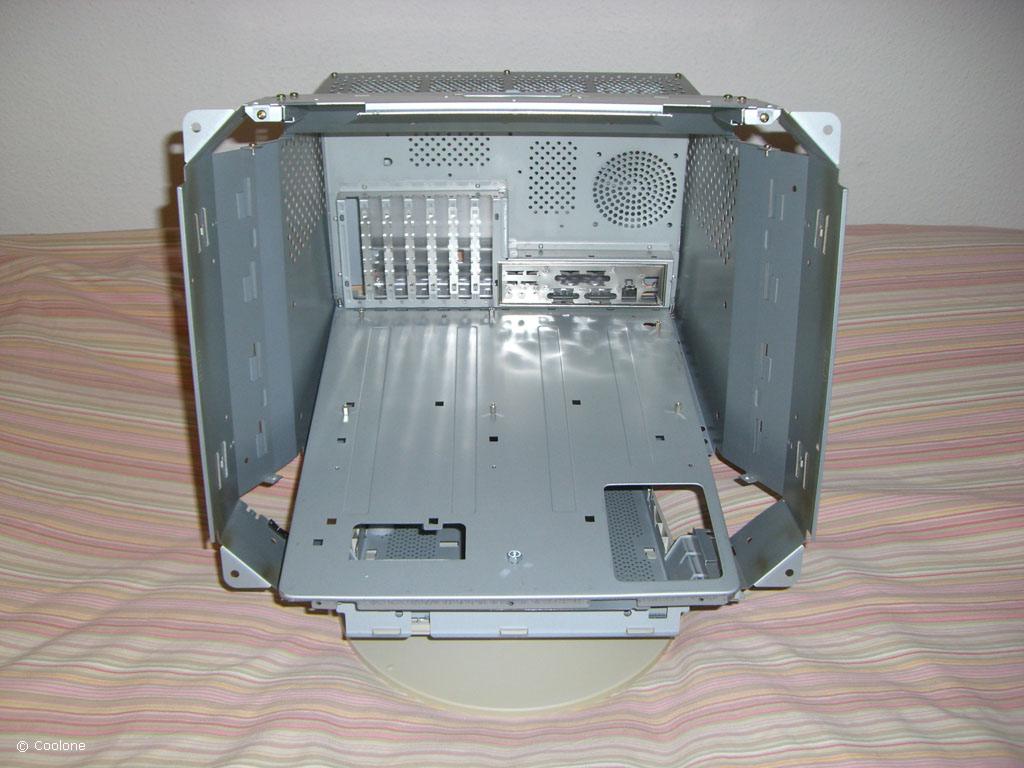

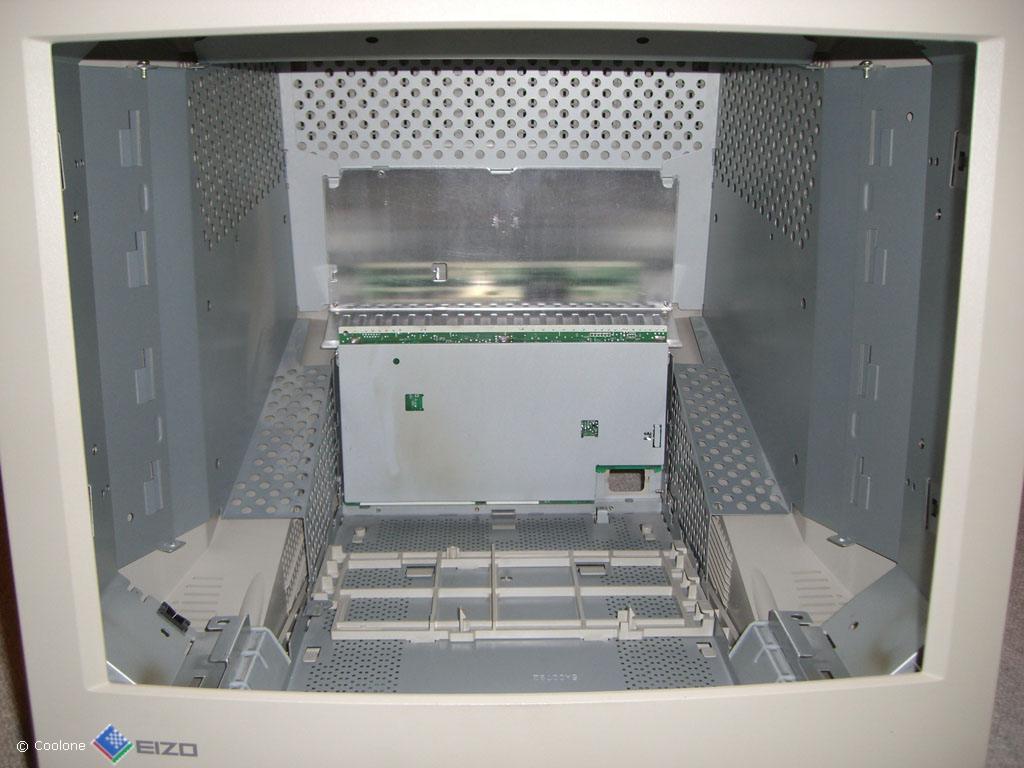

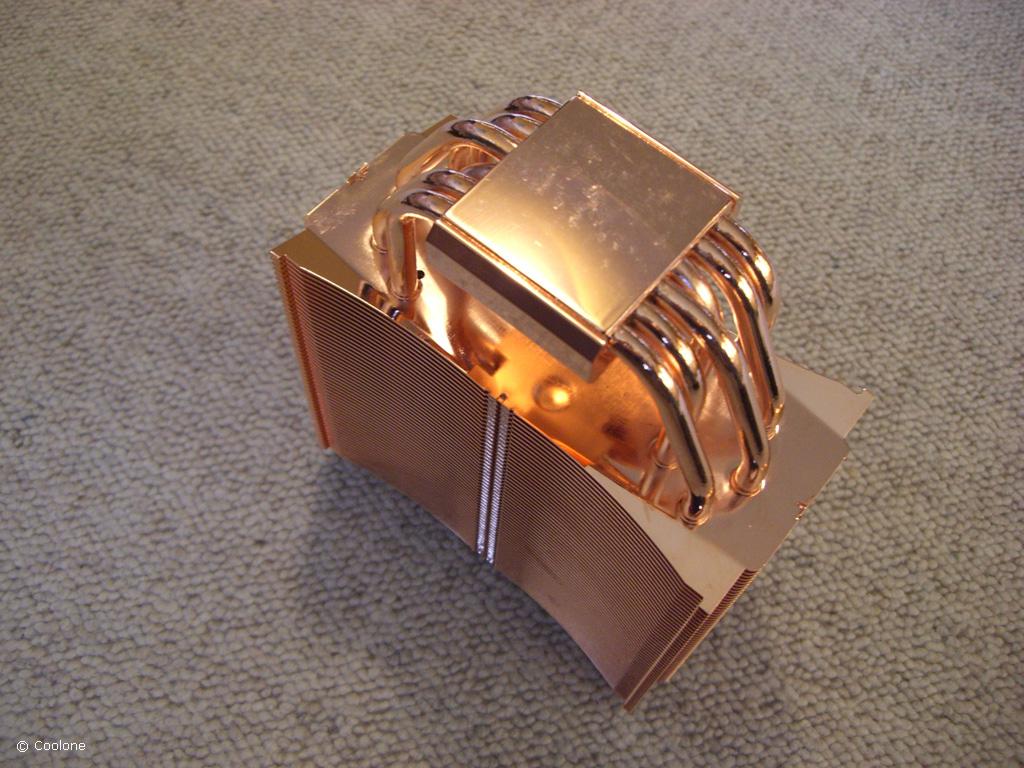

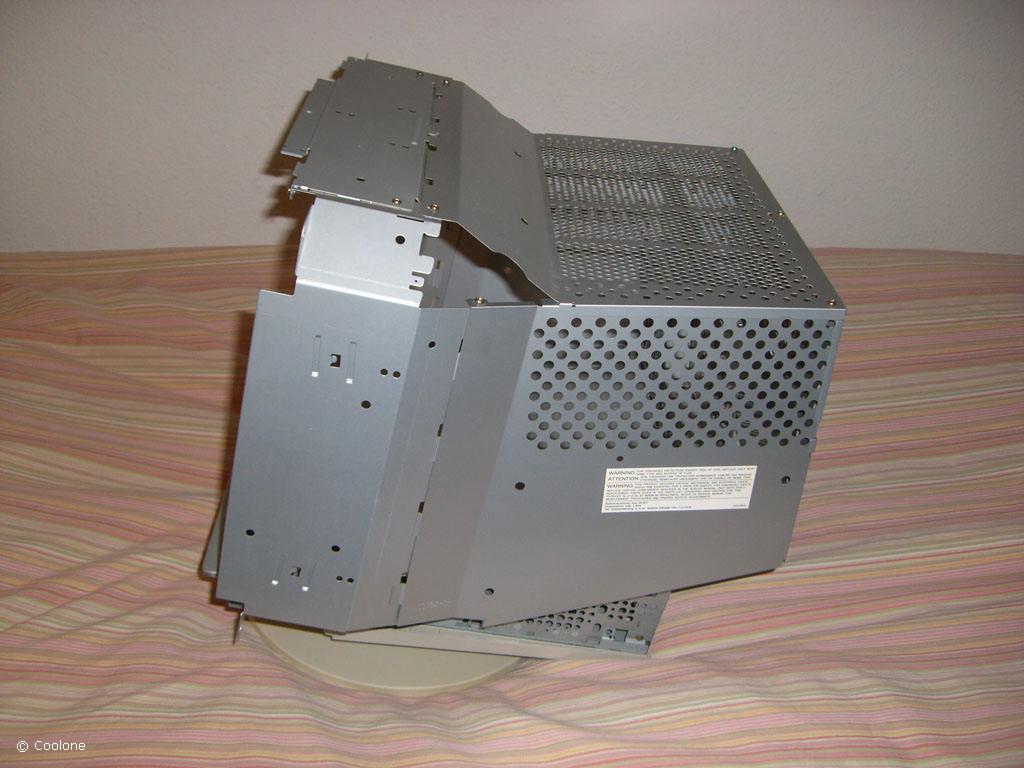

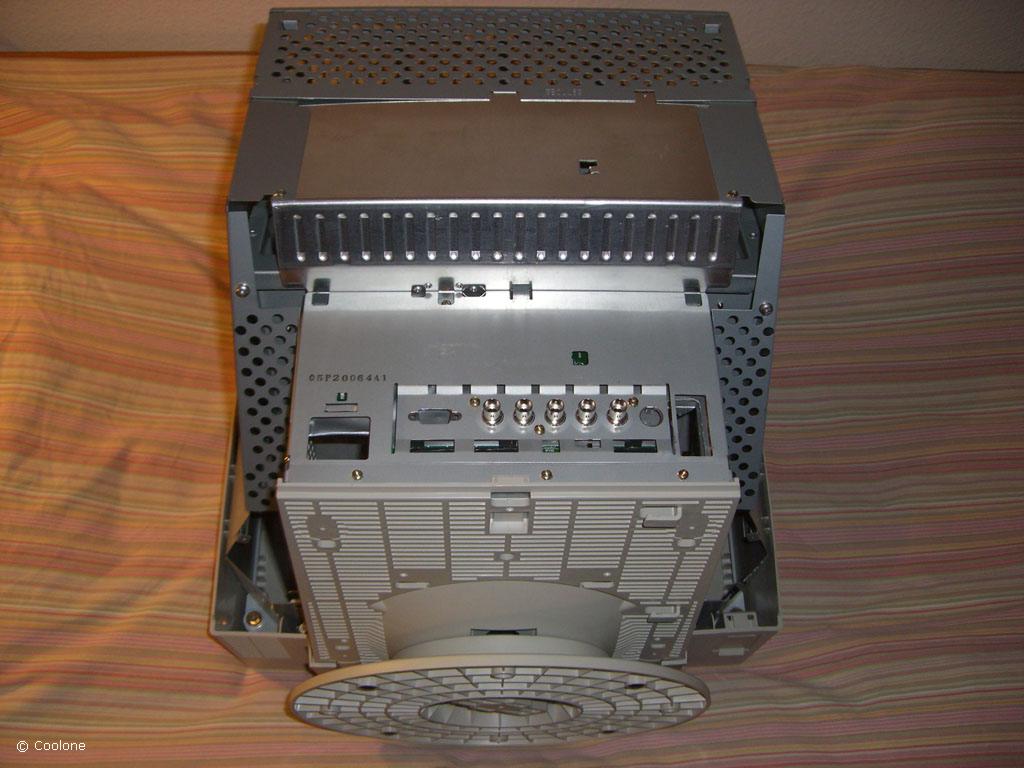

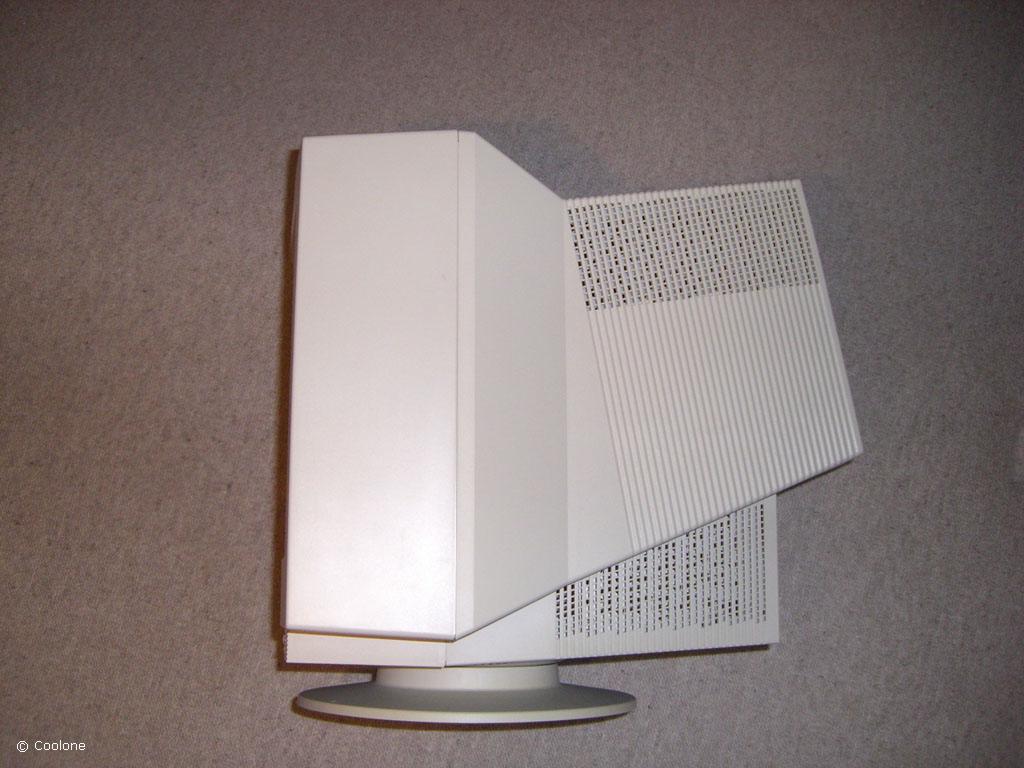

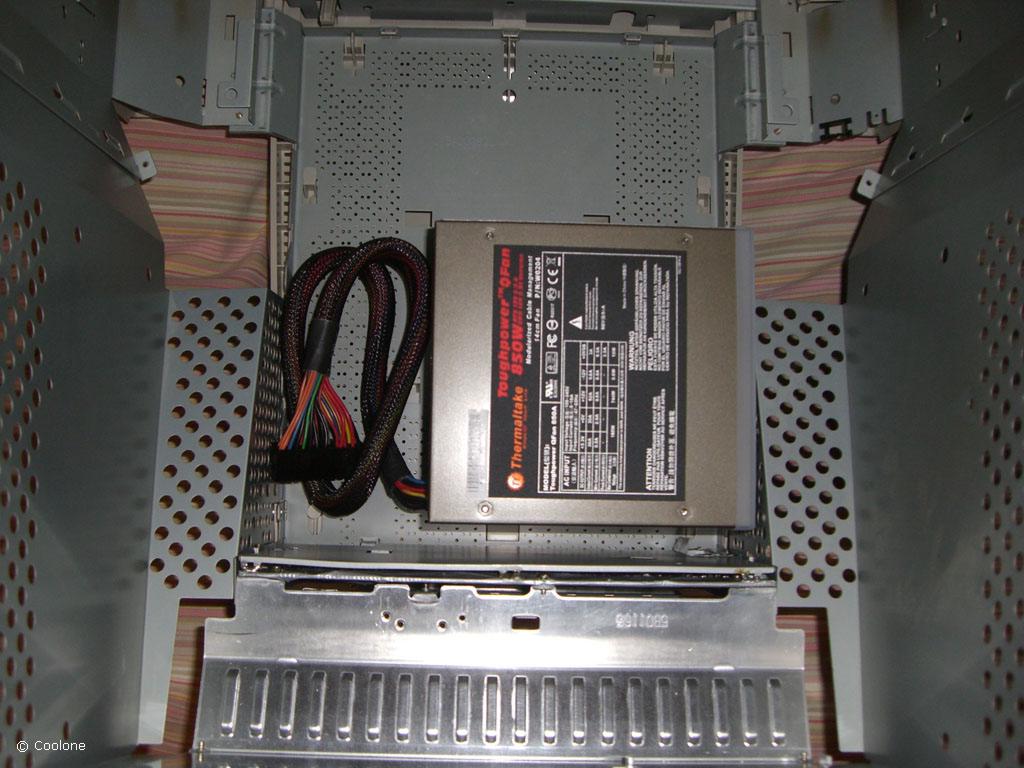

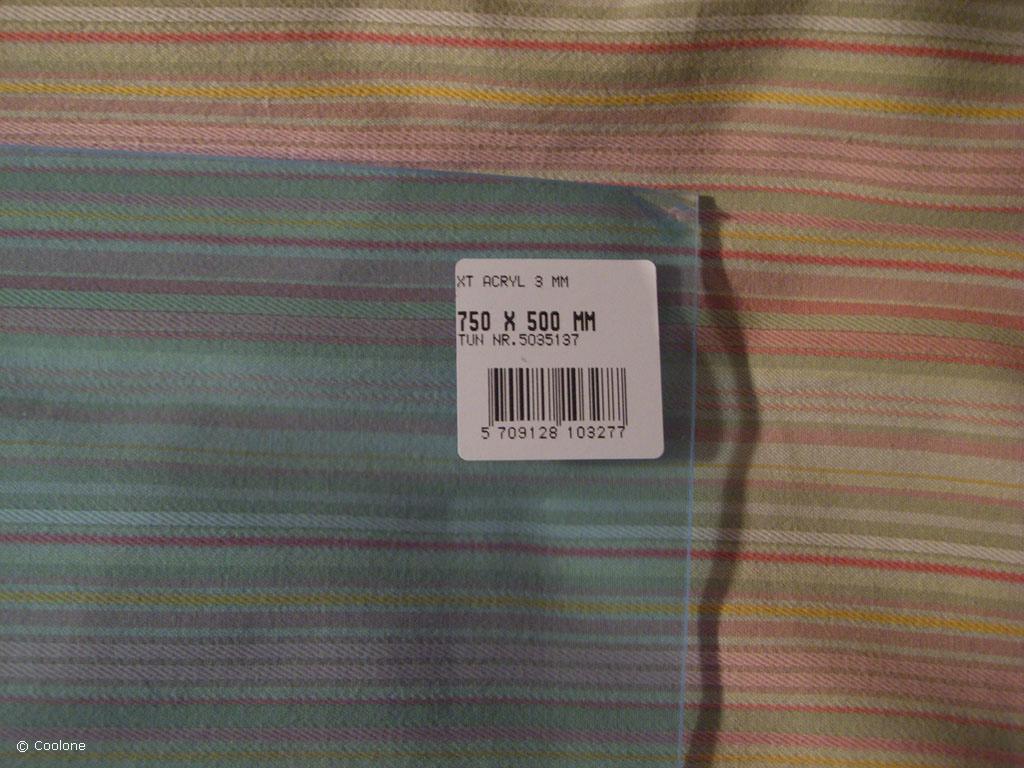

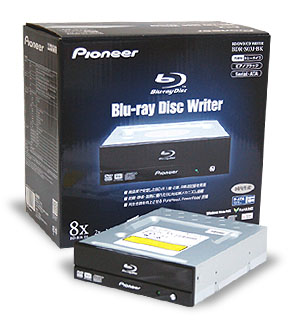

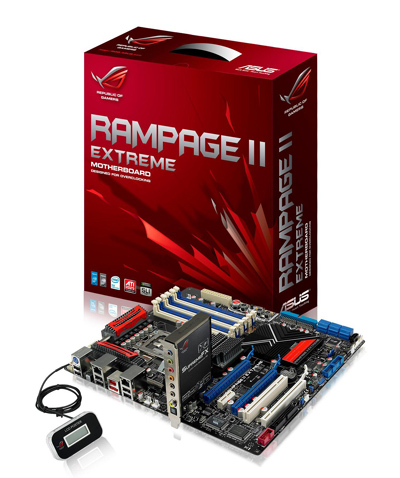

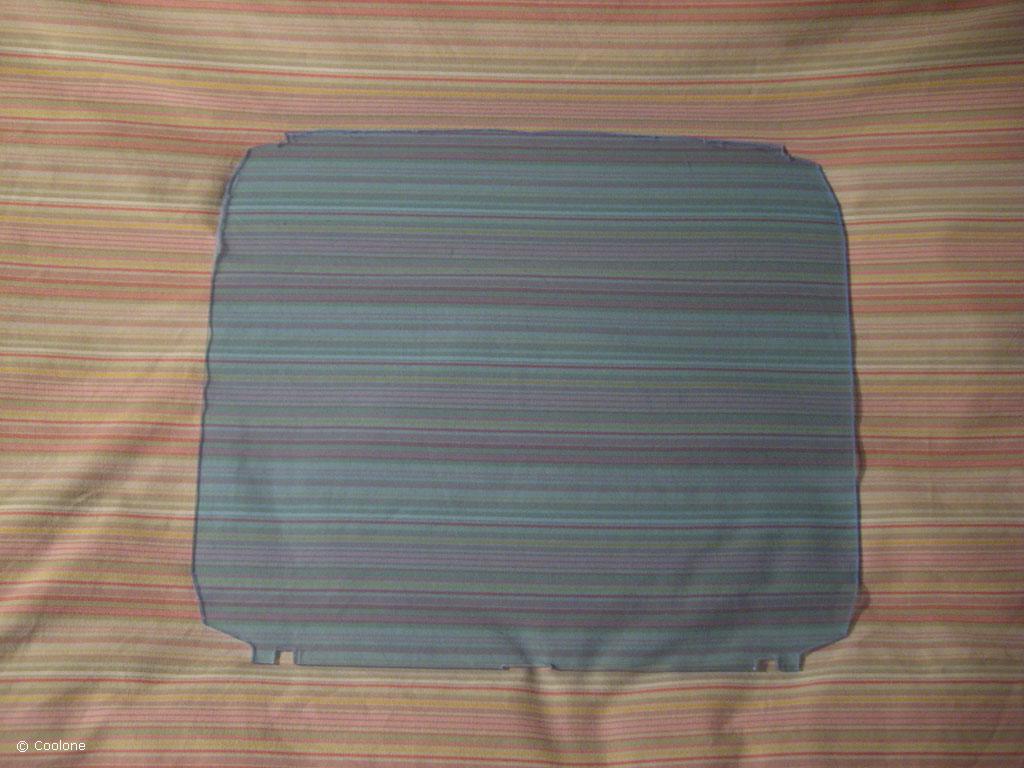

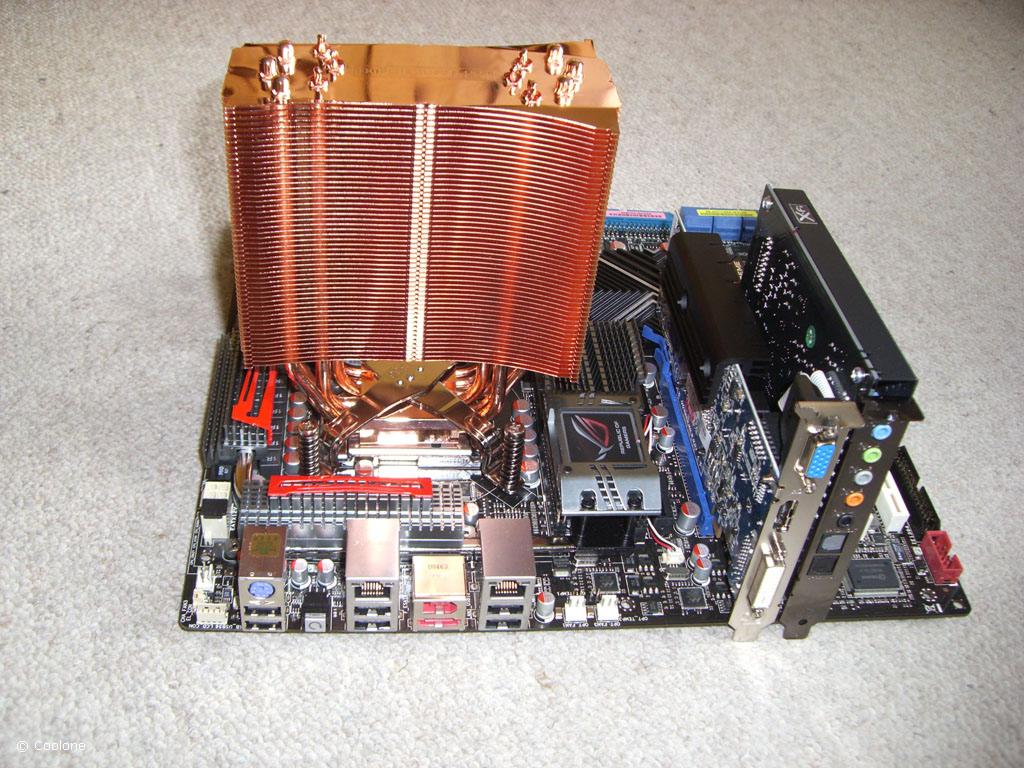

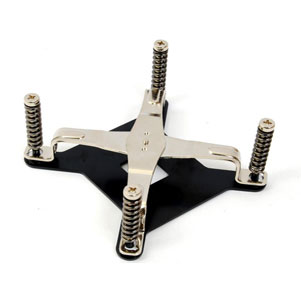

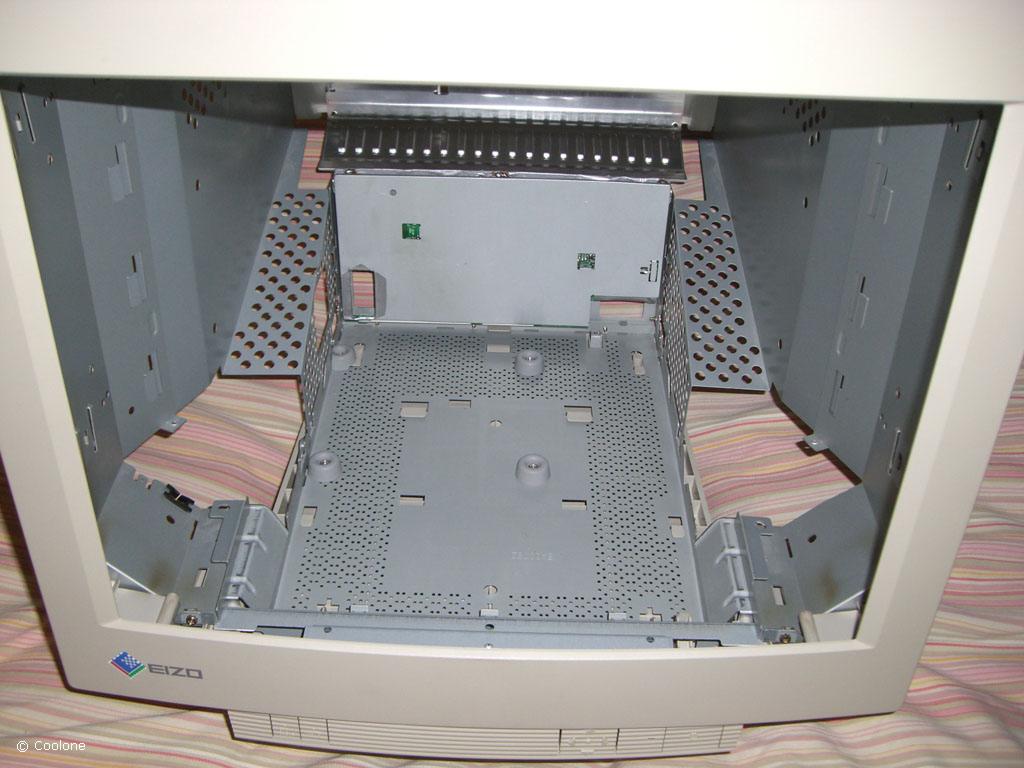

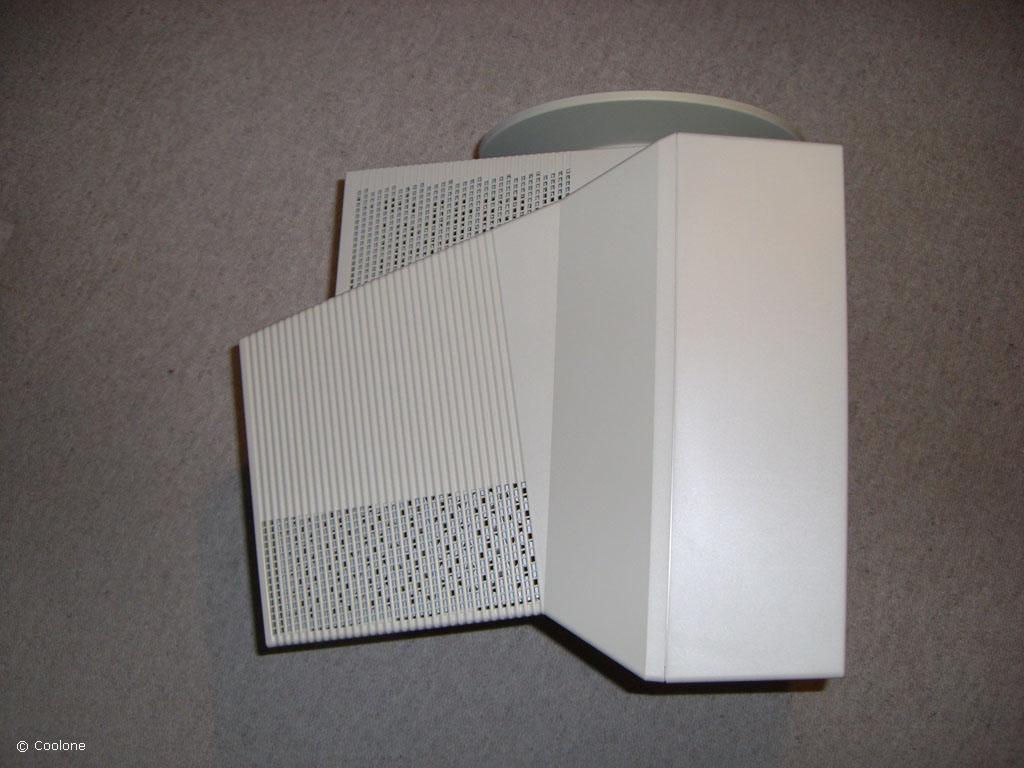

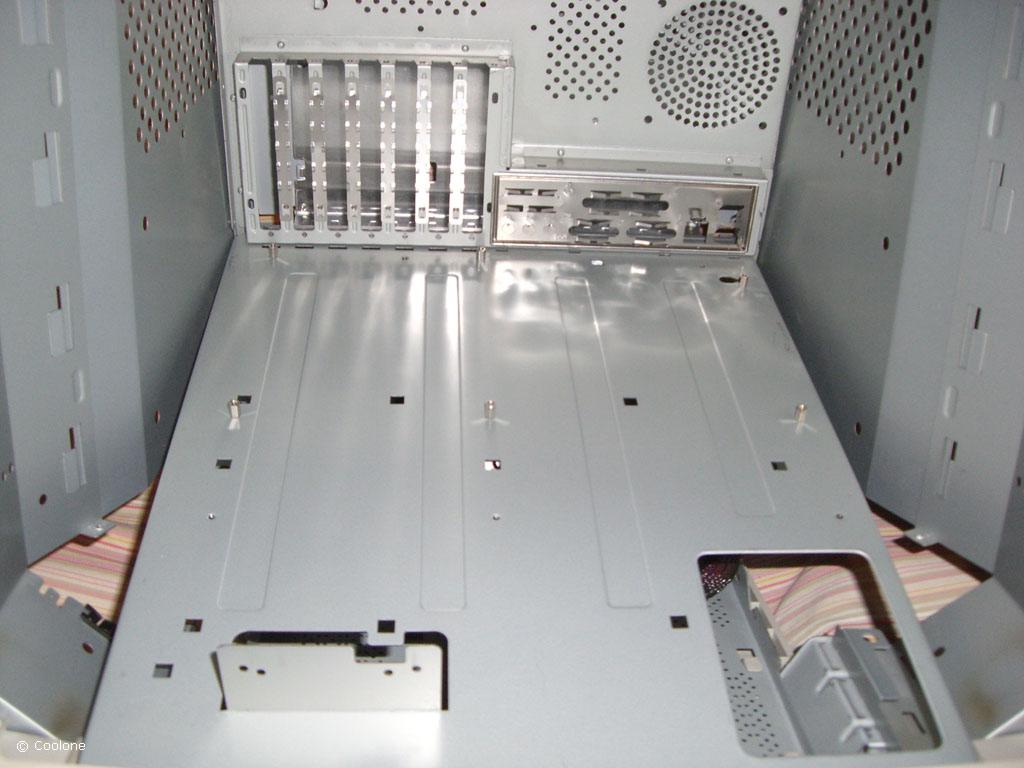

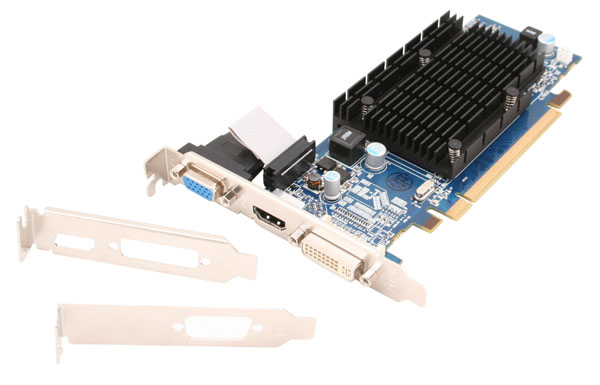

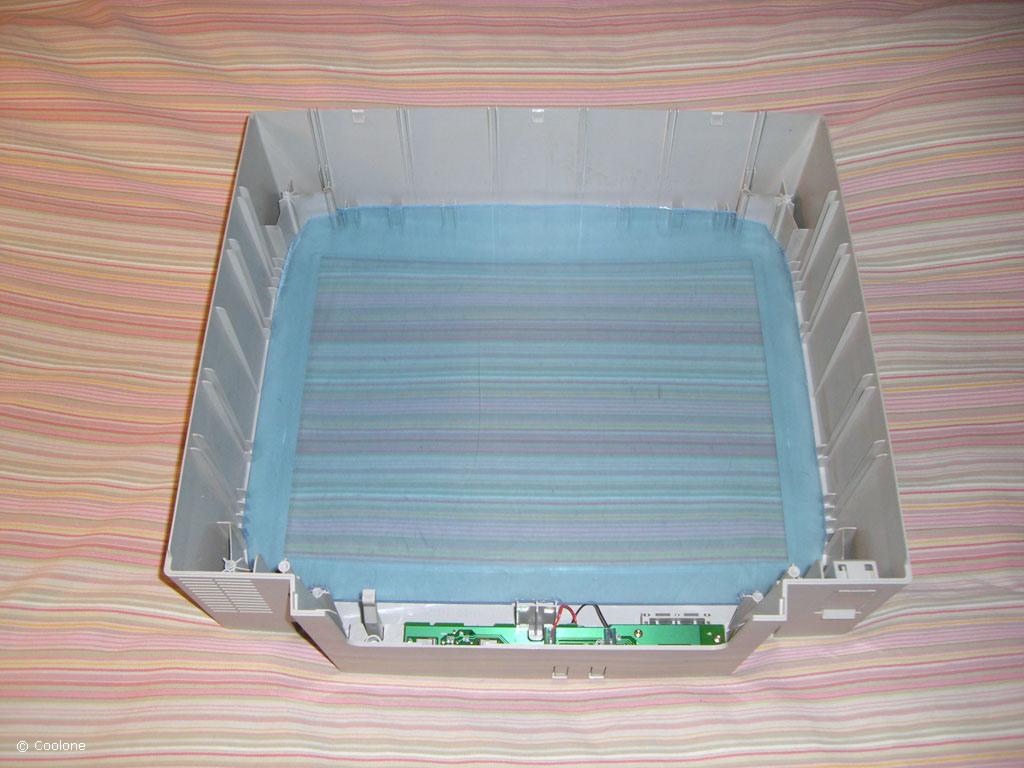

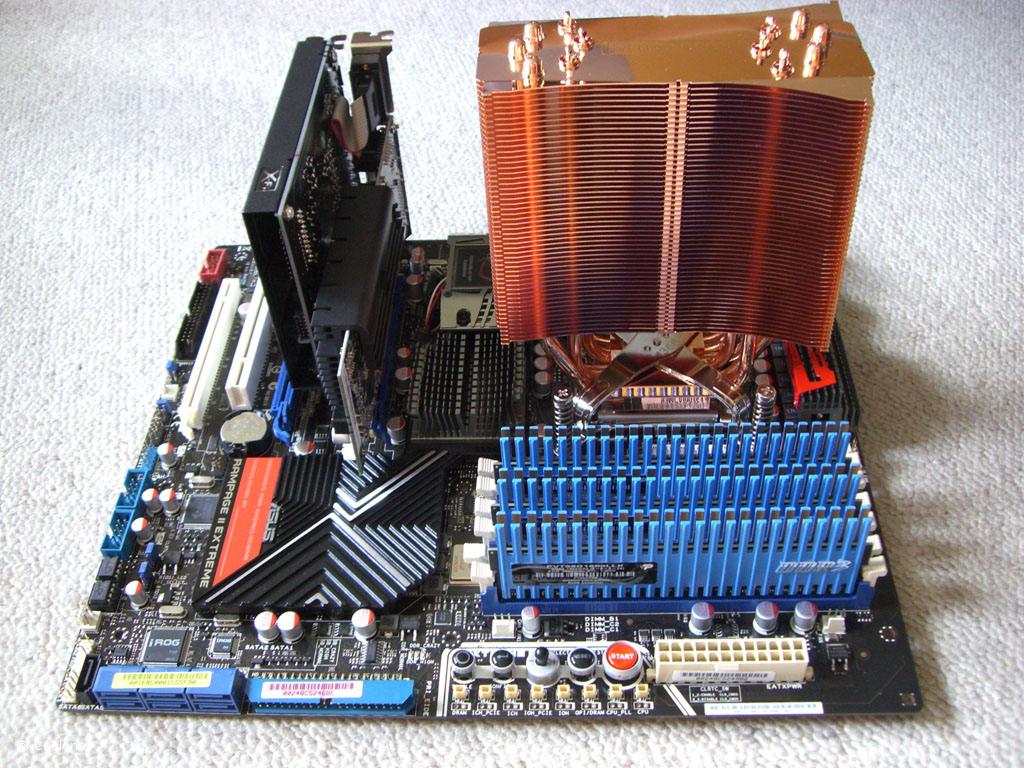

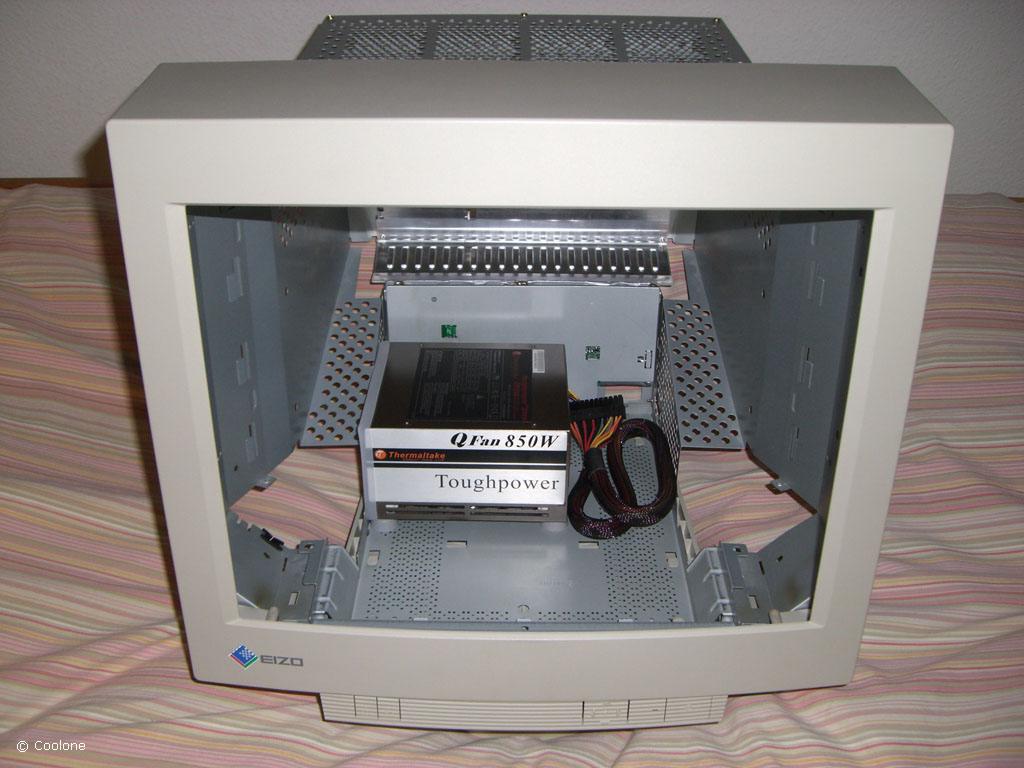

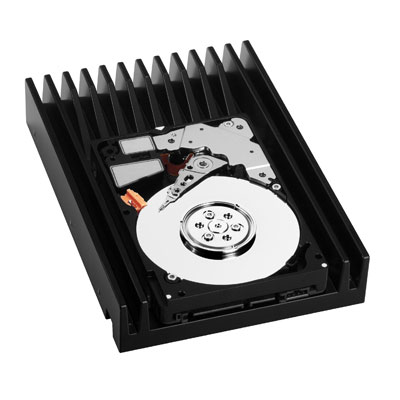

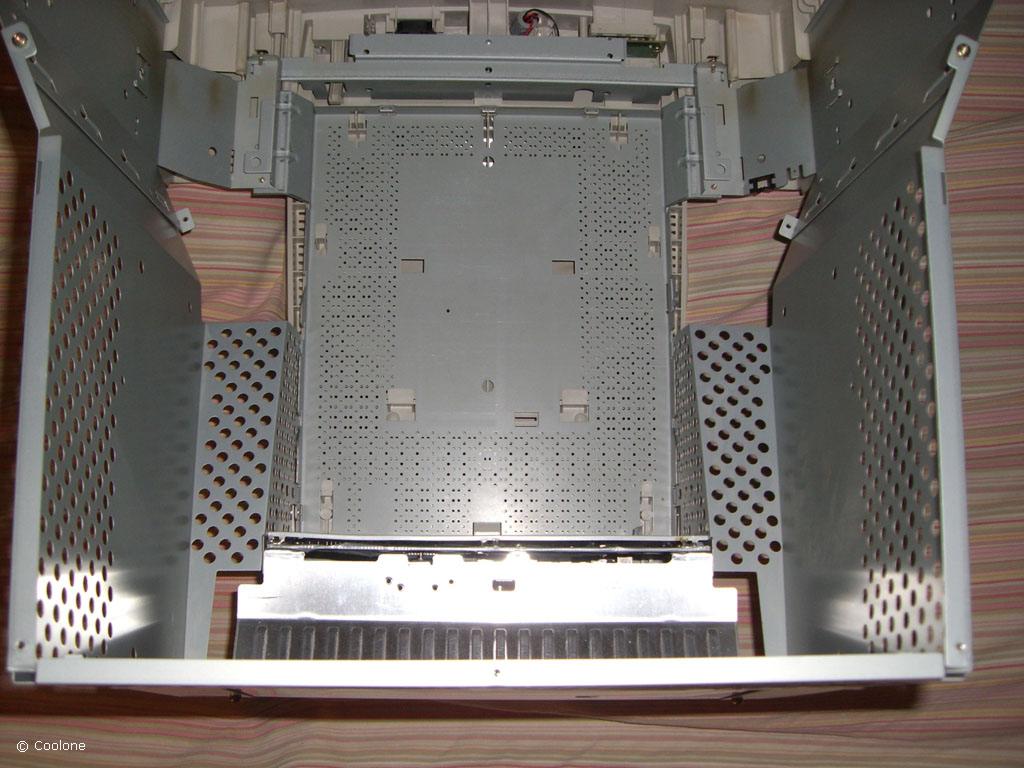

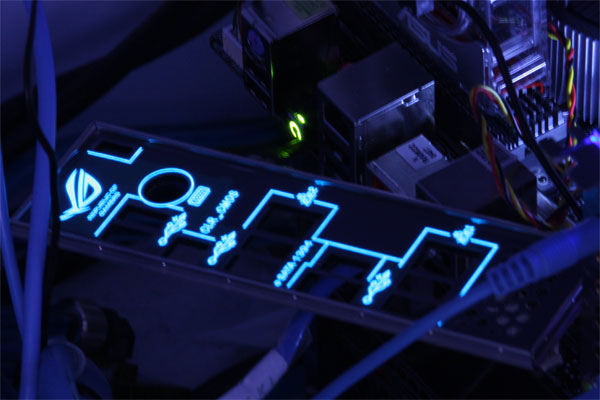

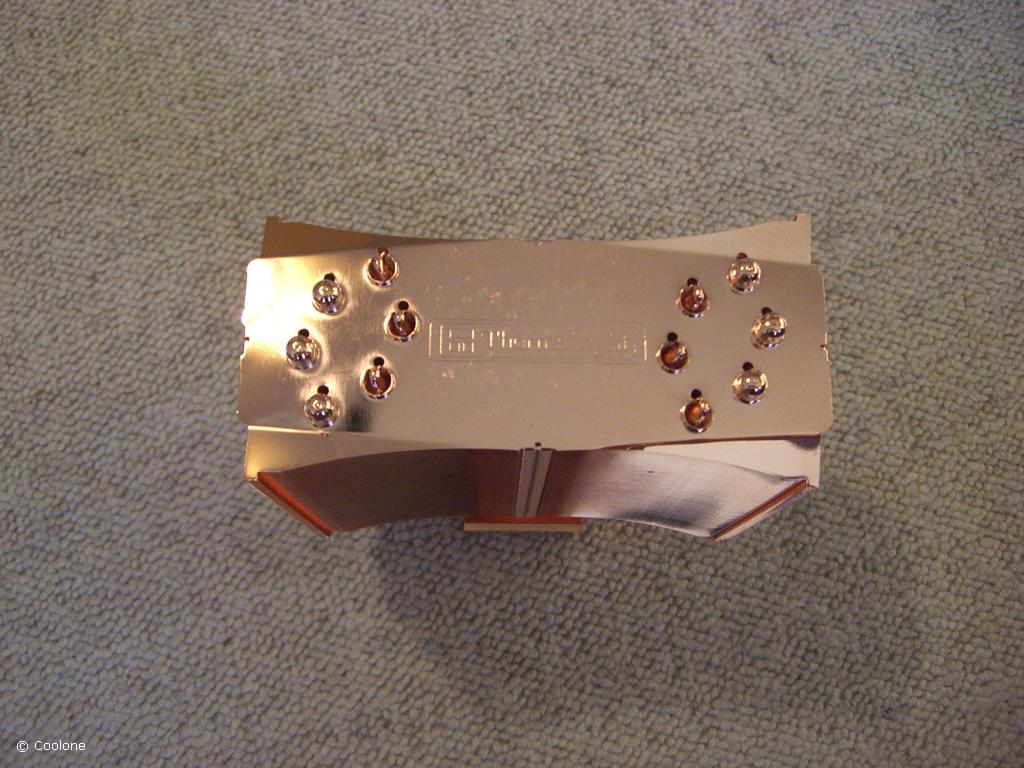

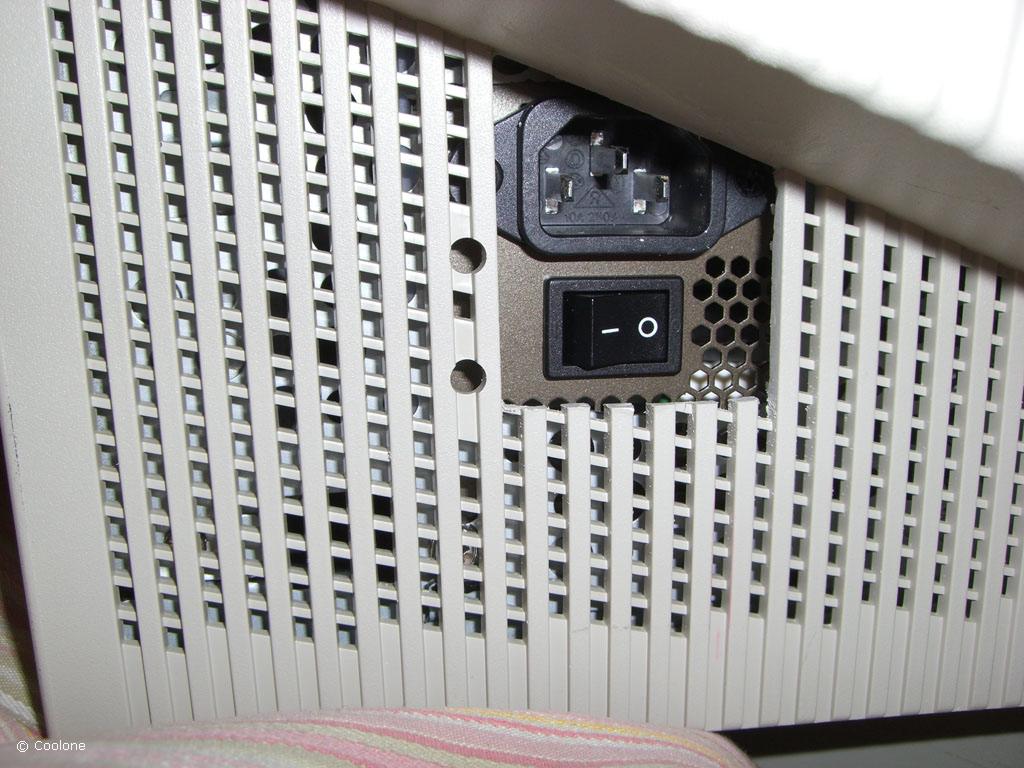

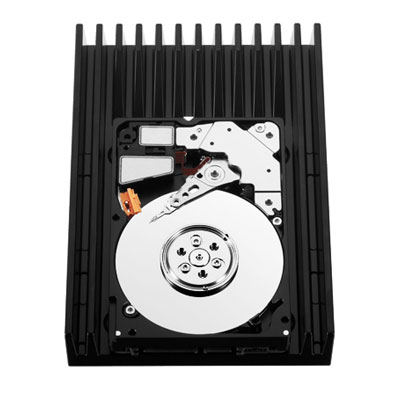

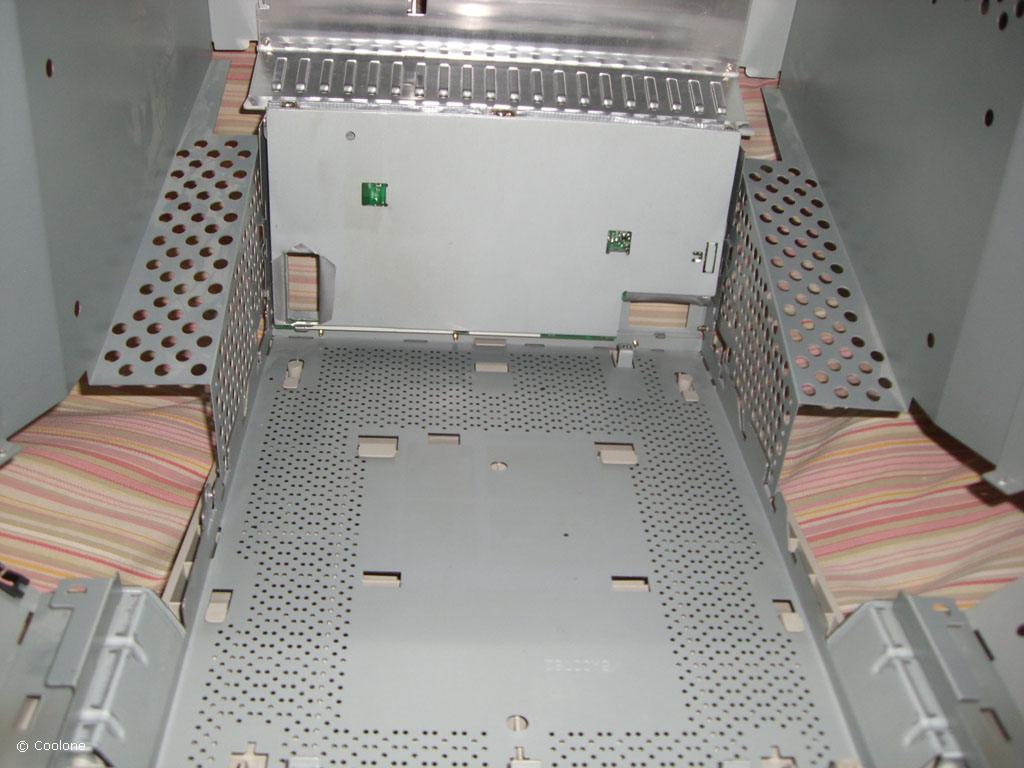

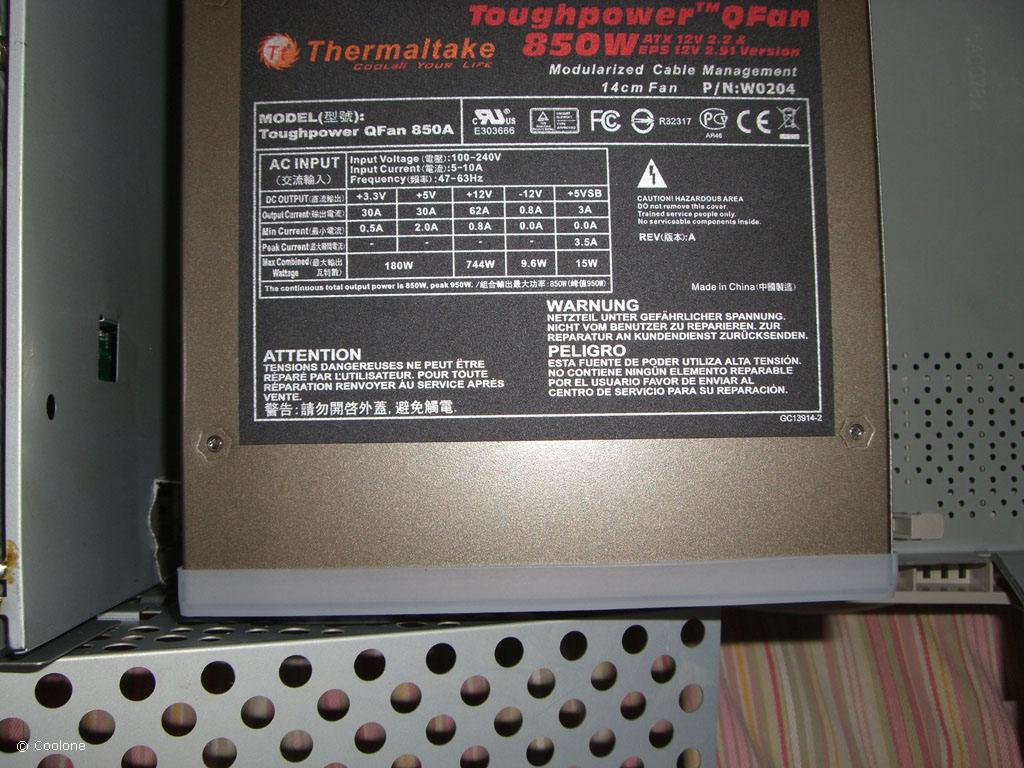

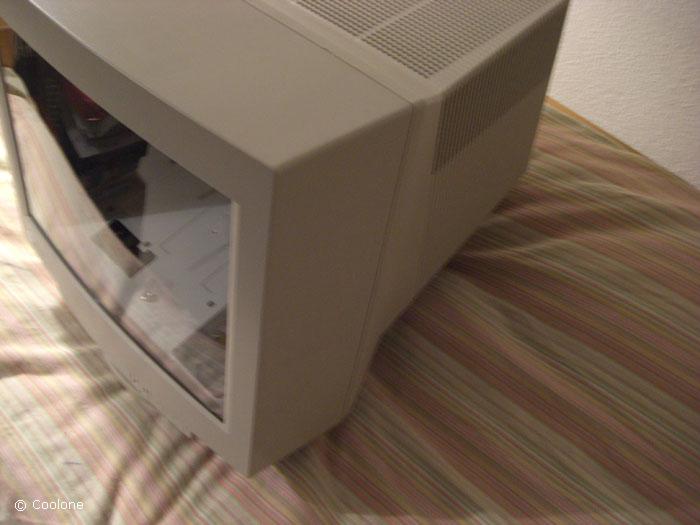

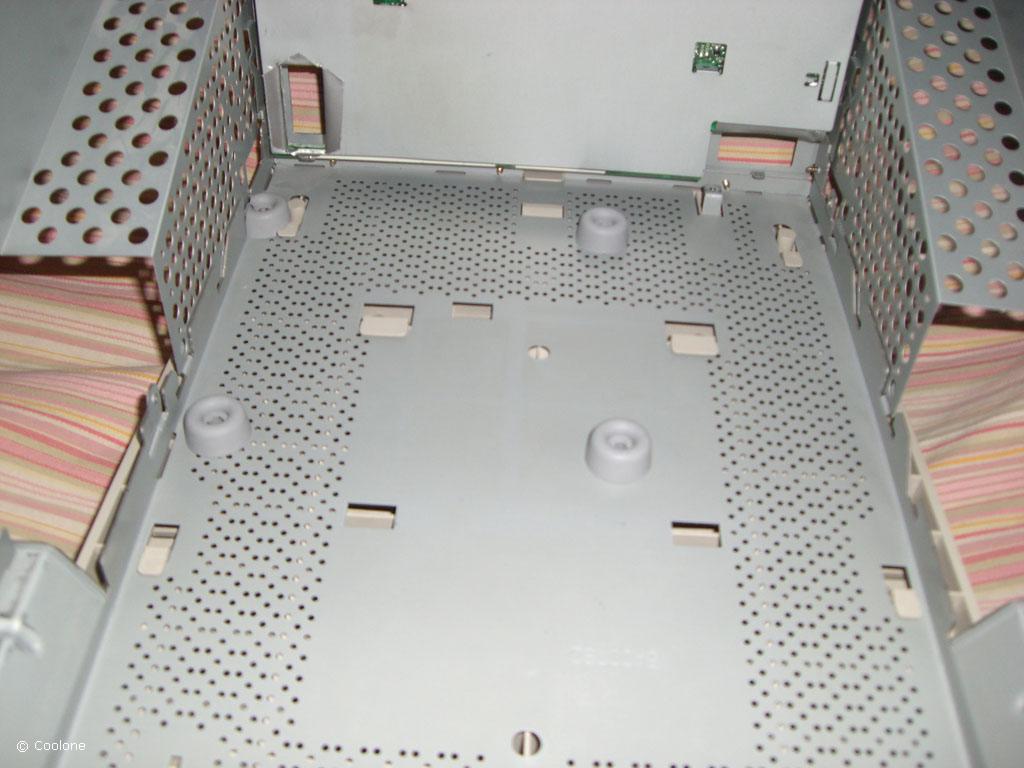

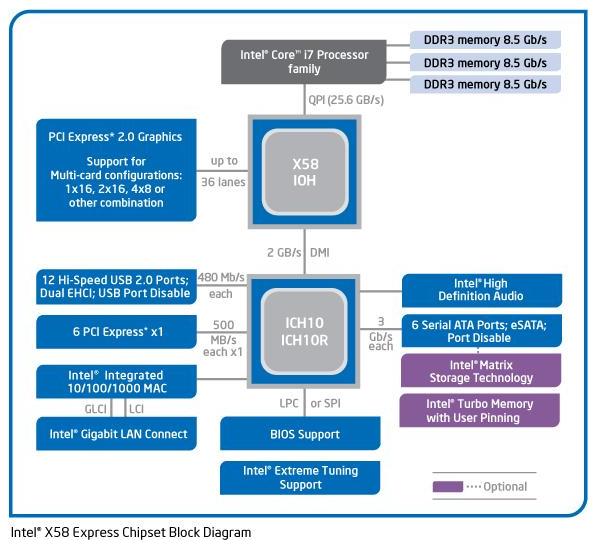

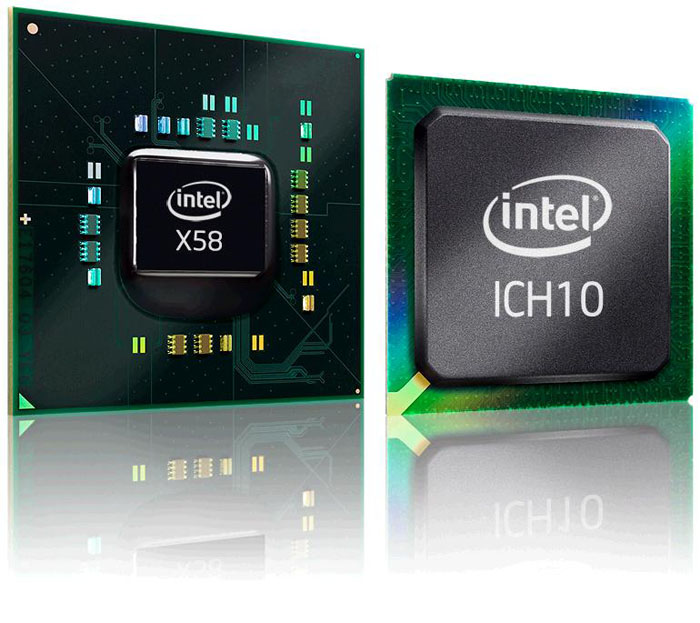

Coolone Posted May 17, 2009 Posted May 17, 2009 EIZO FlexScan T68 Monitor – Gaming Case Mod 2009 Worklog By Coolone a. Name of mod: EIZO FlexScan T68 Monitor – Gaming Case Mod 2009 b. Description of my case: Idea When my fantastic EIZO FlexScan T68 died I felled very sorry since we already have been friends through 8 years where the EIZO FlexScan T68 monitor have given me the best pictures I ever have seen on a monitor. So I thought this should not be the end of my great EIZO so my imagination was questioned how could I still get anything out of my old monitor, even if it not could deliver any pictures anymore? Since I like to have a PC case with my one touch I thought it could be nice to make a case mod where nearby all used hardware was visible. This was the beginning of my EIZO FlexScan T68 case mod project, where you could see the hardware I have used for my project through the acrylic glass I have build into the front of my old monitor. EIZO FlexScan® T68 (CRT Monitors) http://www.eizo.com/Support/discontinued/crt/t68.asp c. Hardware used for my case mod: Some description and pictures of the hardware I have used for my EIZO FlexScan T68 Monitor – Gaming Case Mod 2009. Processor Intel® Coreâ„¢ i7 processor – 920 http://www.intel.com/products/processor/corei7/index.htm?iid=prod_desktopcore+body_corei7badge With faster, intelligent multi-core technology that automatically applies processing power where it's needed most, new Intel® Coreâ„¢ i7 processors deliver an incredible breakthrough in PC performance. They're the best desktop processors on the planet. Product information 2.66 GHz core speed 8 processing threads with Intel® HT technology 8 MB of Intel® Smart Cache 3 Channels of DDR3 1066 MHz memory Chipset Intel® X58 Express Chipset http://www.intel.com/products/desktop/chipsets/x58/x58-overview.htm Desktop PC platforms based on the Intel® X58 Express Chipset, combined with the Intel® Coreâ„¢ i7 processor family, drive breakthrough performance and state-of-the-art technology to performance and mainstream platforms. The Intel X58 Express Chipset supports the latest 45nm Intel Core i7 processor family at 6.4 GT/s and 4.8 GT/s speeds via the Intel® QuickPath Interconnect (Intel® QPI). Additionally, this chipset delivers dual x16 or quad x8 PCI Express* 2.0 graphics card support, and support for Intel® High Performance Solid State Drives on ICH10 and ICH10R consumer SKUs Motherboard ASUS Rampage II Extreme http://www.asus.com/products.aspx?modelmenu=1&model=2619&l1=3&l2=179&l3=815&l4=0 The Ultimate Overclocking Board for Tweaking Fun ASUSTeK Computer Inc. - News http://www.asus.com/news_show.aspx?id=13130 ASUS Unleashes Highest Performing Enthusiast Motherboard to Date: ROG Rampage II Extreme . . . . Best-of-breed Republic of Gamers (ROG) Motherboard Supports 3-Way SLI® and CrossFireXâ„¢ Setups on Latest Intel Platform to Deliver Unprecedented Gaming and Benchmarking Performance . . . . Memory Patriot Extreme Performance Viper Series DDR3 6GB (3 x 2GB) PC3-16000 (2000MHz) Low Latency DIMM Kit Patriot Memory PVT36G2000LLK http://patriotmemory.com/products/groupdetailp.jsp?prodgroupid=82&prodline=5&group=PC3-16000-2000MHzMemoryModules&catid=23 Patriot Memory PVT36G2000LLK Specs http://patriotmemory.com/products/detailp.jsp?prodline=5&catid=23&prodgroupid=82&id=795&type=1 Patriot Extreme Performance (EP) line is engineered to expand your gaming options. These modules are designed to operate at 2000MHz and is available in 2GB kit capacity. Equipped with Patriot ACC (Aluminum Copper Composite) technology, these modules are designed for maximum performance and stability under extreme overclocking conditions. Engineered with quality and Performance in mind, Patriot Extreme Performance line is the ultimate solution for extreme overclockers, gamers, and PC enthusiasts. Graphics Card SAPPHIRE http://www.sapphiretech.com SAPPHIRE HD 4550 512MB DDR3 PCI-E 1G HM HDMI http://www.sapphiretech.com/presentation/product/?psn=000101&pid=209 . . With all the latest features, the ATI Radeonâ„¢ HD 4550 graphics cards deliver an incredible visual experience with best in classperformance. Enjoy unprecedented levels of graphics realism and play the latest games with support for Microsoft DirectX®10.1. Add this graphics card to your PC and watch Blu-ray movies and HD content play with incredible visual fidelity1, and view digital photos with over 1 billion colors2. Do it all with break-through efficiency that doesn’t compromise performance. Hard Drives Western Digital VelociRaptor 300 GB SATA Hard Drives ( WD3000HLFS ) 3.5-inch (backplane-ready) http://www.westerndigital.com/en/products/Products.asp?DriveID=495 . . 300 GB, 3 Gb/s, 16 MB Cache, 10,000 RPM The evolution of 10,000 RPM SATA technology. Western Digital VelociRaptor 300 GB SATA Hard Drives ( WD3000GLFS ) 3.5-inch (SATA cable connect) http://www.westerndigital.com/en/products/products.asp?DriveID=459 . . 300 GB, 3 Gb/s, 16 MB Cache, 10,000 RPM The evolution of 10,000 RPM SATA technology. Cooling CPU-Cooling To cool the Intel® Coreâ„¢ i7 processor I have chosen this great Thermalright TRUE Copper cooling solution. Thermalright TRUE Copper CPU Heatsink http://www.thermalright.com/new_a_page/product_page/cpu/true-copper/product_cpu_cooler_t_copper.html . . . . . . . . . . . . Thermalright LGA1366 Bolt-Thru-Kit http://www.thermalright.com/new_a_page/product_page/product_accessories.html#lga1366boltnew Thermalright TR-FDB-1600 Fan (1600RPM) http://www.thermalright.com/new_a_page/product_page/fan/product_tr_fdb_fan.html . On the following website you could see how well the Thermalright TRUE Copper CPU Heatsink is designed. http://www.viddler.com/explore/KBrozio/videos/2/1.243/ “CASEâ€-Cooling To cool my case mod I have chosen some 120mm Cooler Master case fans. Cooler Master 120mm Switch-Fan R4-L2S-12KB-GP - Sonic Blue http://www.coolermaster.com/products/product.php?language=en&act=detail&tbcate=36&id=2579 Introduction Features Specifications Gallery Reviews Support Higher transparency fan frame and brighter LED LED On/Off control connector to turn on or shut off LED based on user’s need With one control panel to connect up to 3 LED On/Off Fans Higher air flow to enhance cooling performance Silent operation for excellent case cooling RoHS compliance for protecting the environment Optical Drives Pioneer BDR-203BK http://www.pioneer.eu/eur/products/45/75/442/BDR-203BK/specs.html Blu-Ray DVD & Pro Blu-Ray - DVD Writer (Blu-Ray & DVD Burner) . . The BDR-203BK offers 8X reading for single layer BD-ROM/R/RE discs and 6X reading for dual layer BD-ROM discs, along with 8X writing for BD-R and 2X writing for BD-RE single layer discs, 16X writing for DVD-R/+R, 6X for DVD-RW/+RW, 8X for DVD-R/+R DL (Dual / Double Layer), 5X for DVD-RAM and 24X for CD-R/RW media types. Sound Card Creative PCI Express Sound Blaster X-Fi Titanium Fatal1ty http://www.soundblaster.com/products/product.asp?category=1&subcategory=208&product=17813&nav=0 Maximum audio performance and connectivity for Pro Gamers Realistic EAX® 5.0 sound effects that pull you into the game Accurate 3D positional audio - even with normal headphones Accelerated audio for unbeatable game performance Clearer voice chats for better voice communication Works with PCI Express equipped PCs Light Cooler Master Ultra Aurora CCFL Series (DFL-UD1-EB) http://www.coolermaster.com/products/product.php?act=detail&id=128 Power Supply Thermaltake Toughpower QFan 850W http://www.thermaltake.com/product_info.aspx?PARENT_CID=C_00001180&id=C_00001182&name=Toughpower+QFan+850W+&ov=n&ovid . . . . Unique patented designed blade shape and a 360° open frame, effectively reducing noise. Extreme Quiet 14cm ball-bearing QFan technology. . . . . . . d. Hardware setup: Pictures of the hardware setup for my EIZO FlexScan T68 Monitor – Gaming Case Mod 2009. . . . . . . e. Build phase: Some pictures from the build phase of the EIZO FlexScan T68 Monitor – Gaming Case Mod 2009. Monitor . . . . . . . . Monitor split apart . . . . . . . . . . . . . . . . . . . . Motherboard tray . . Monitor with motherboard tray . . . . . . Acrylic glass . . . . . . Monitor with acrylic glass . . Monitor with PSU . . . . . . . . . . Monitor with hardware installed . . . . . . . . . . .

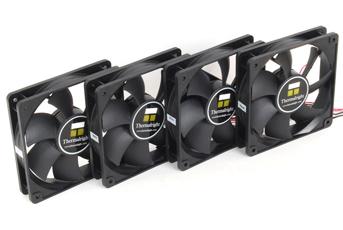

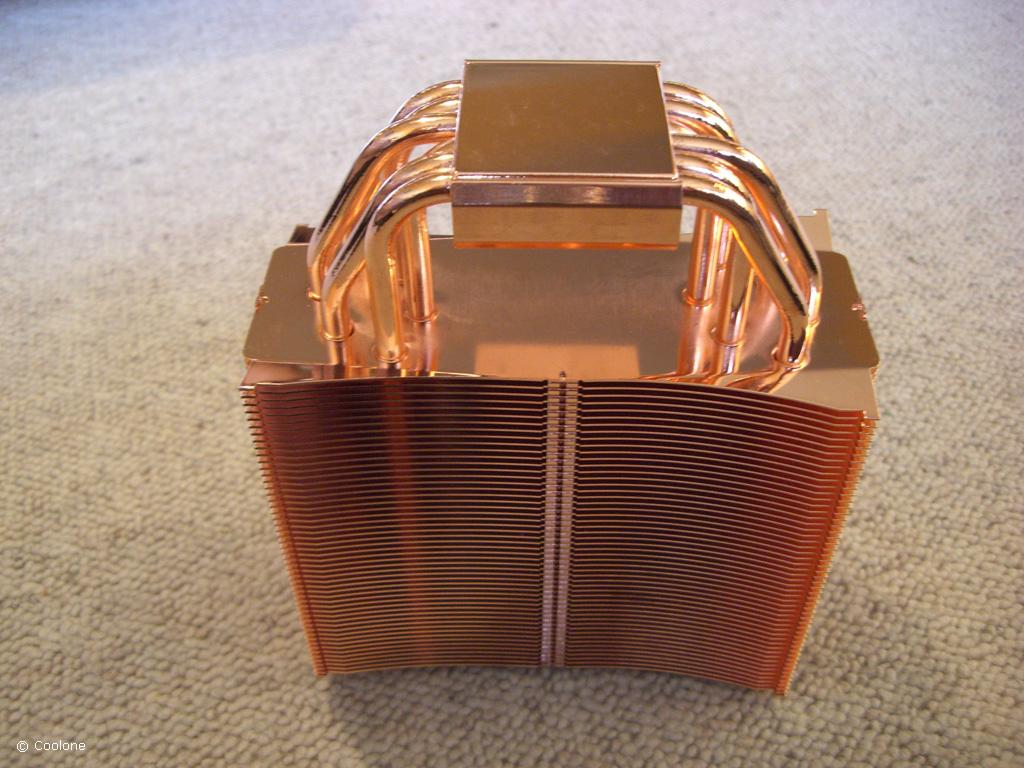

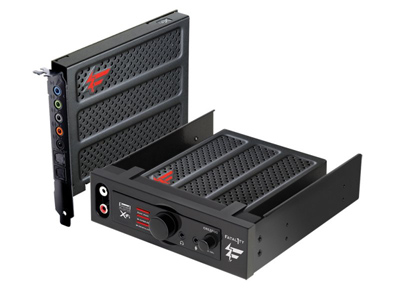

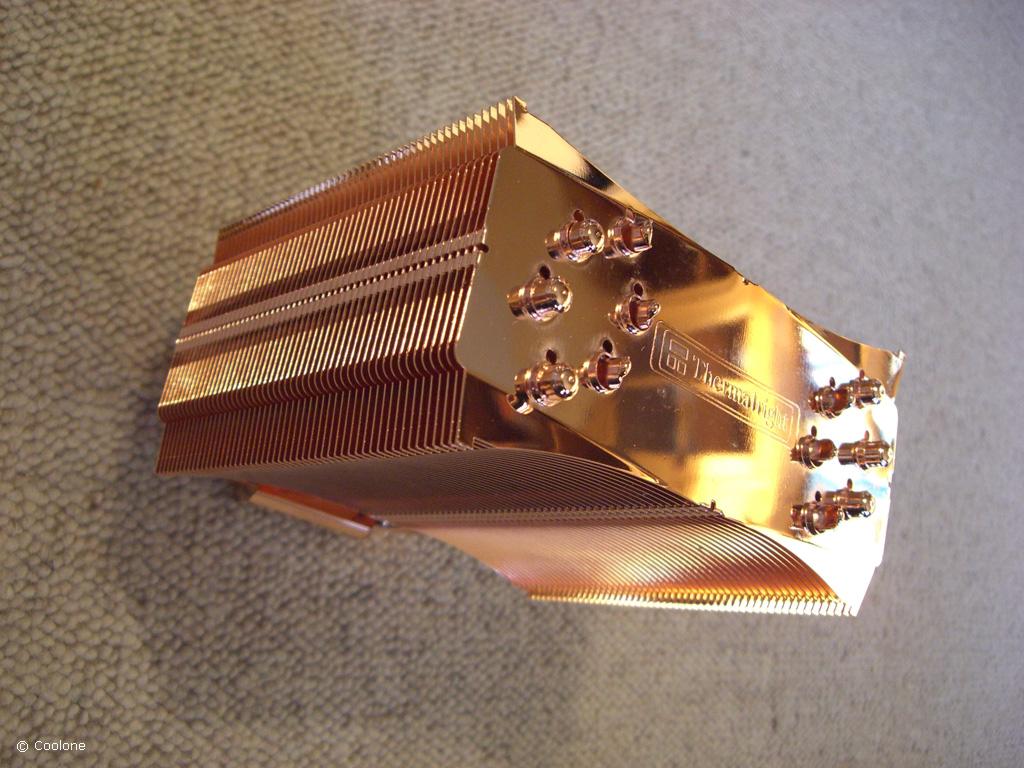

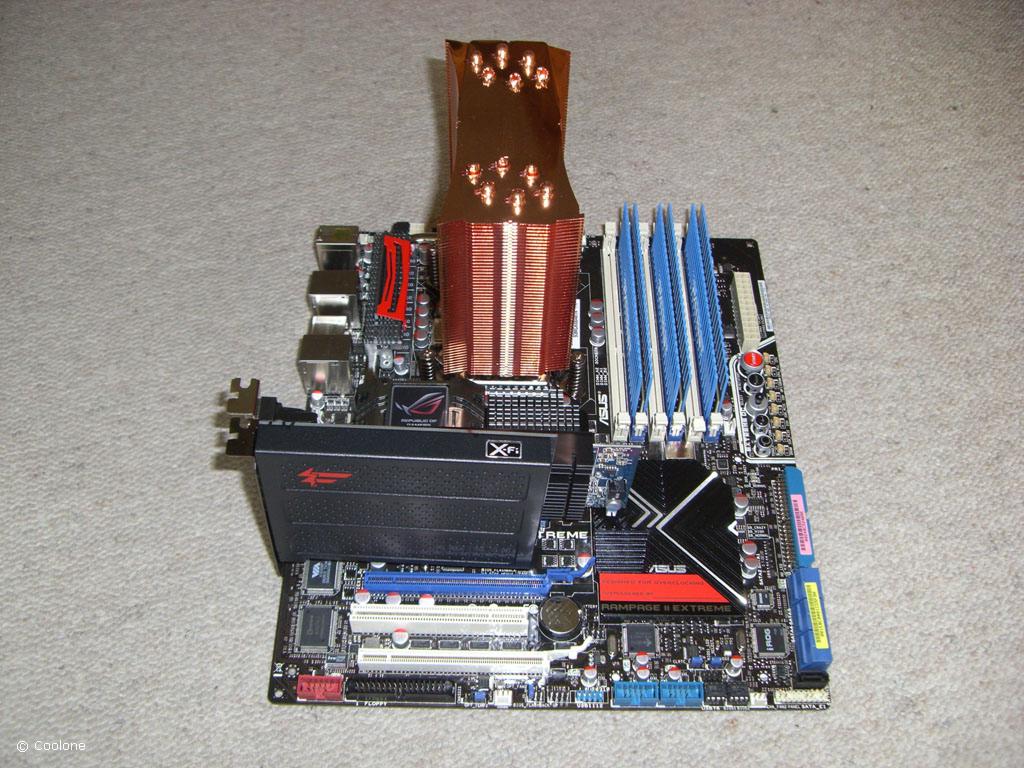

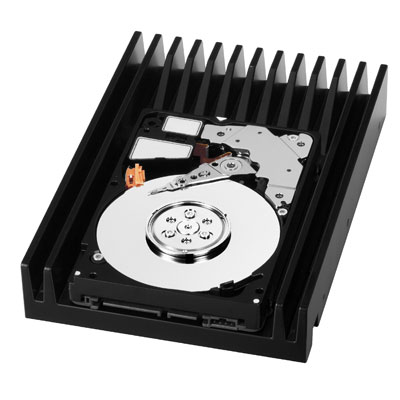

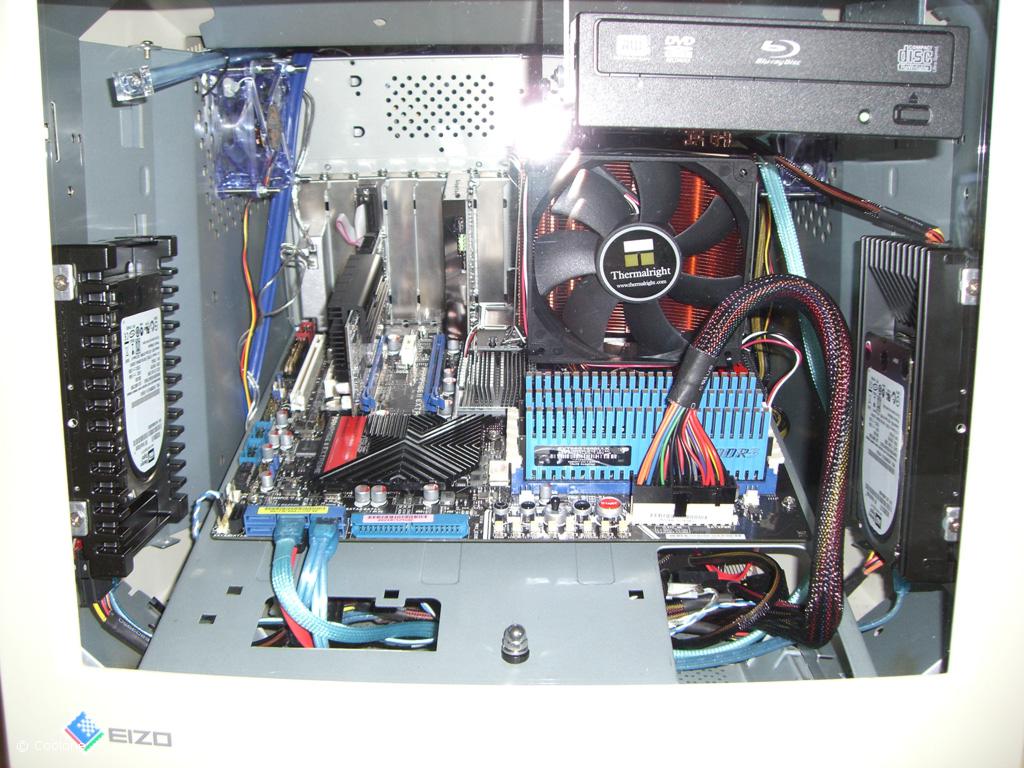

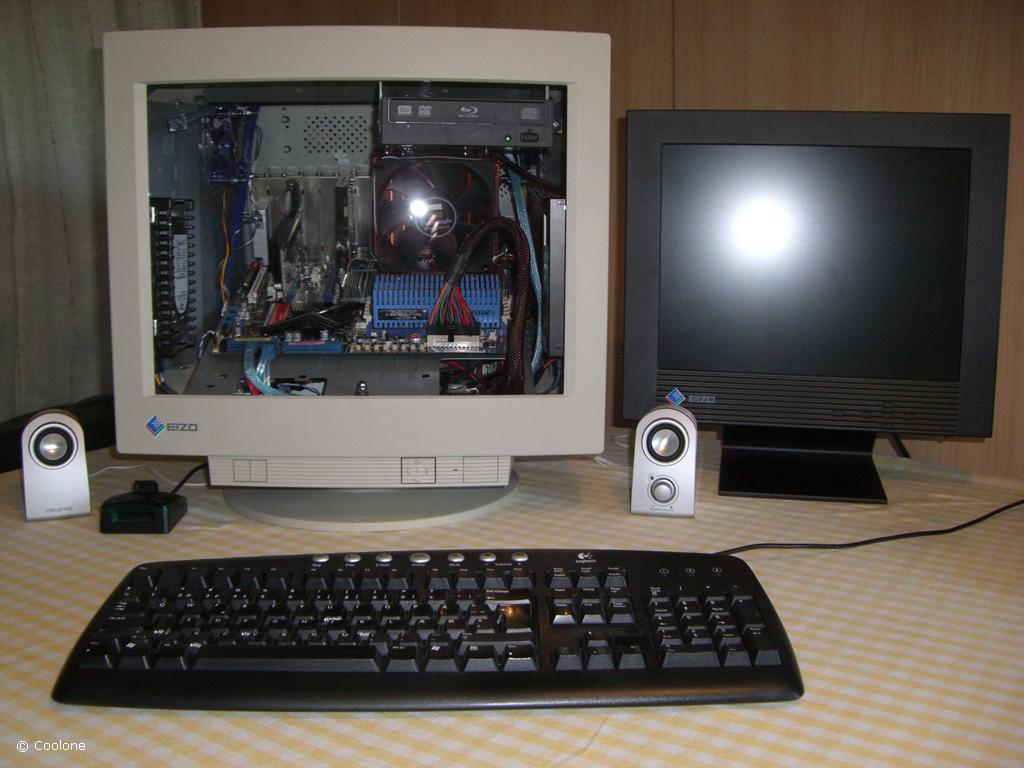

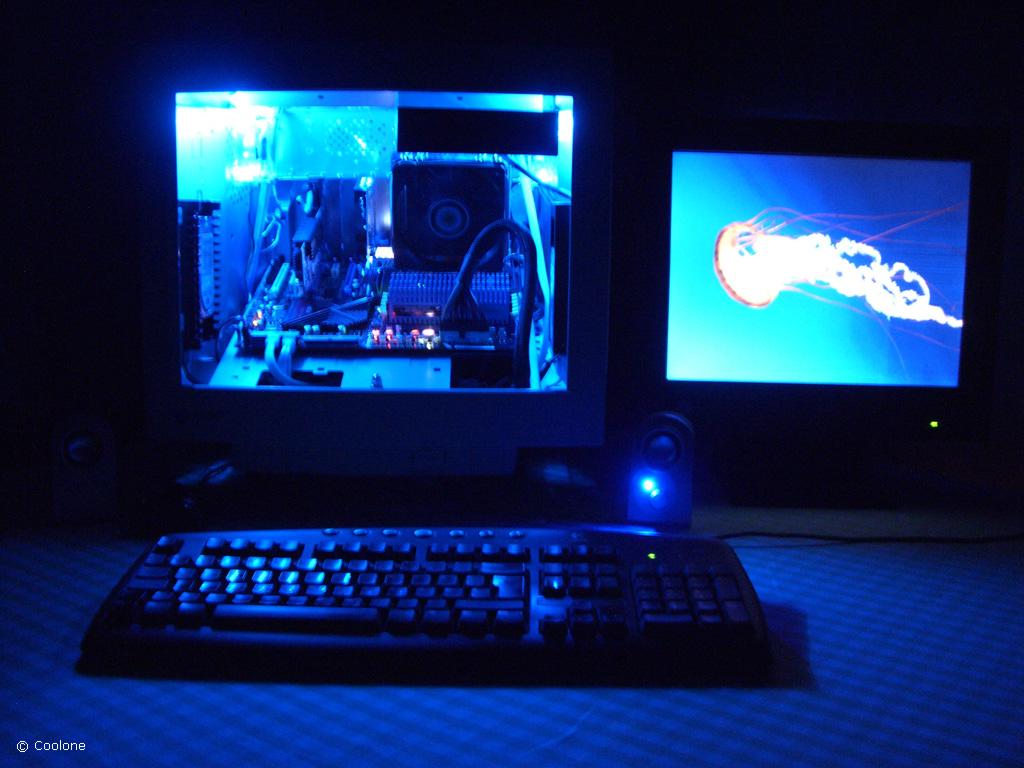

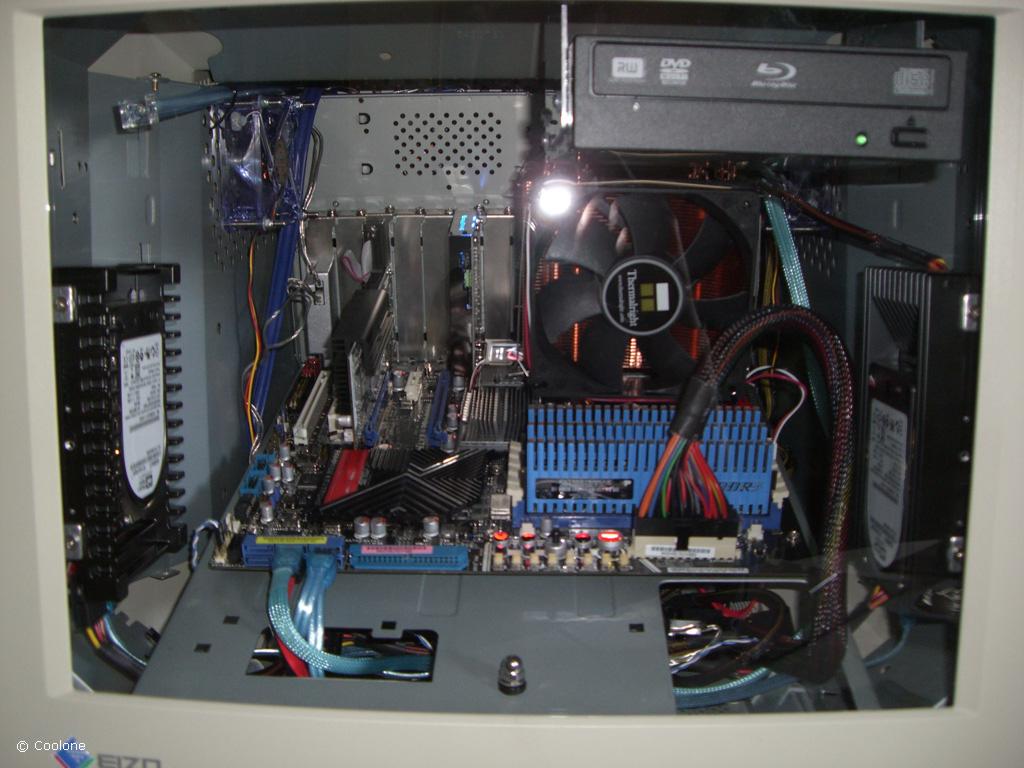

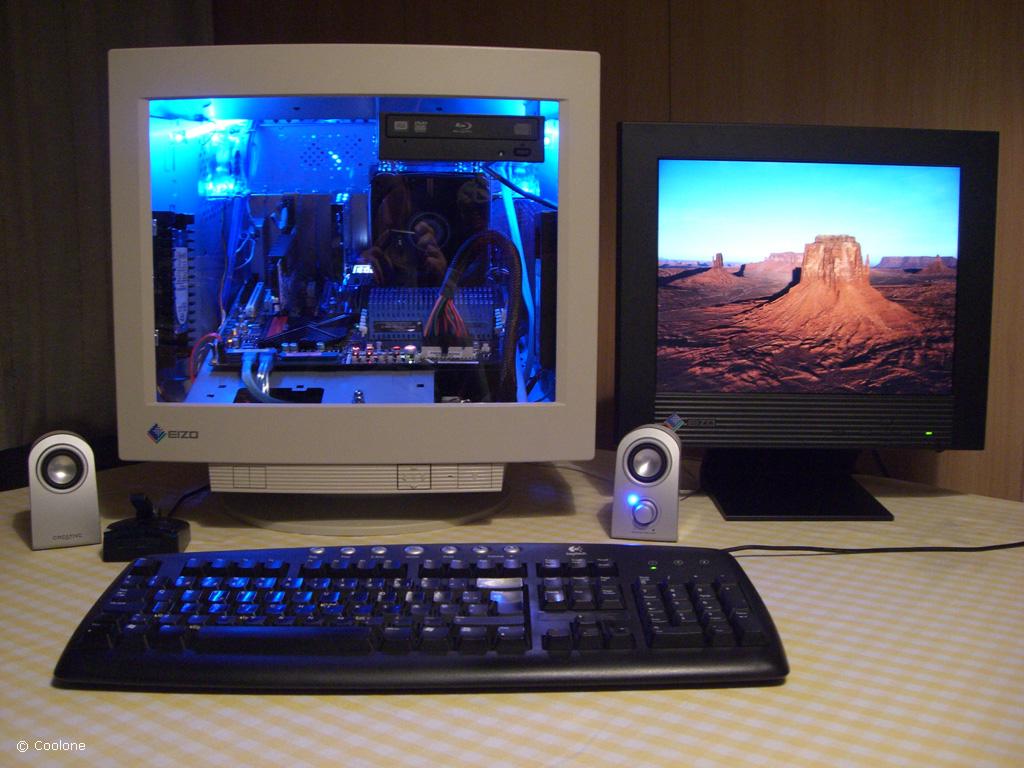

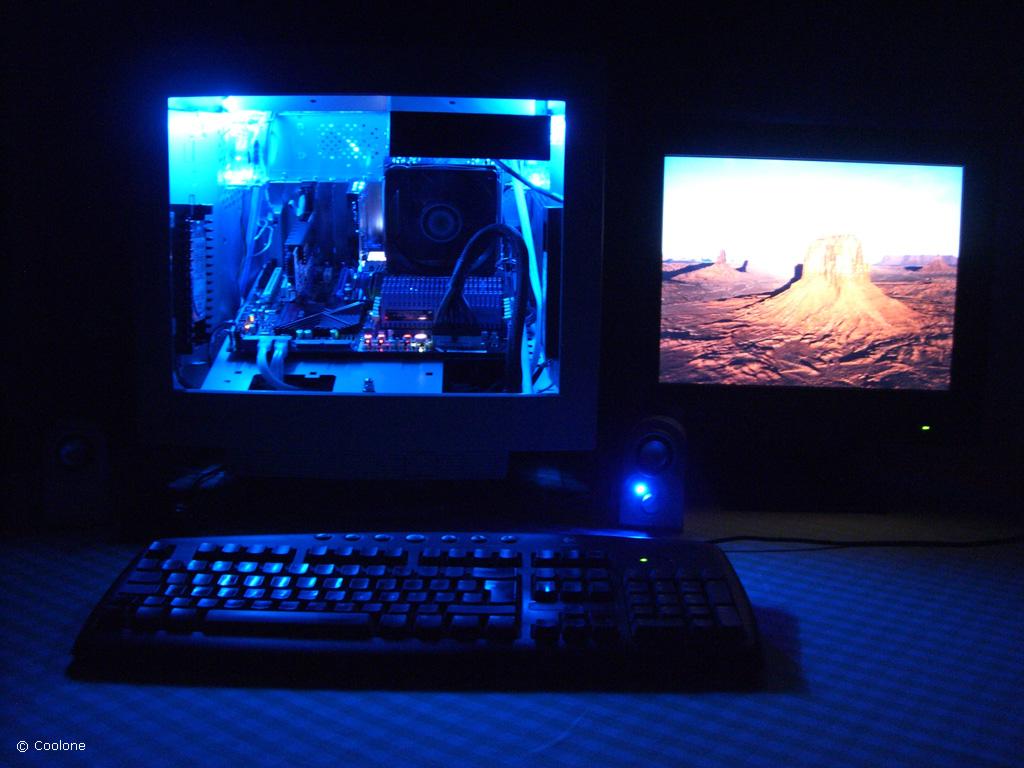

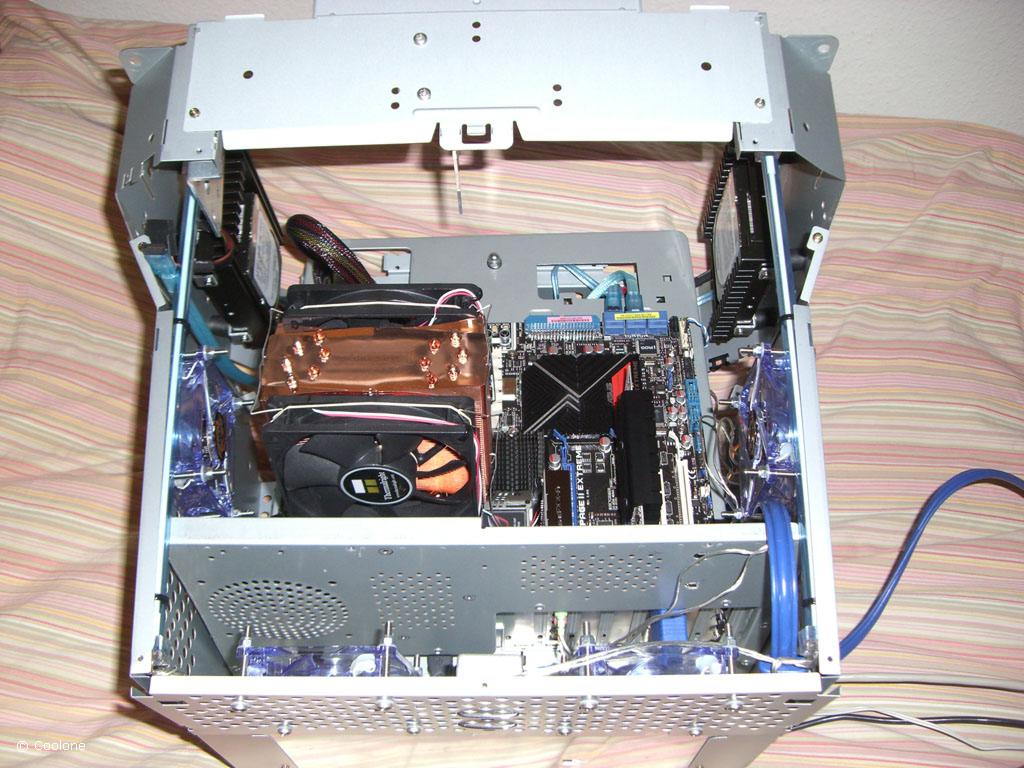

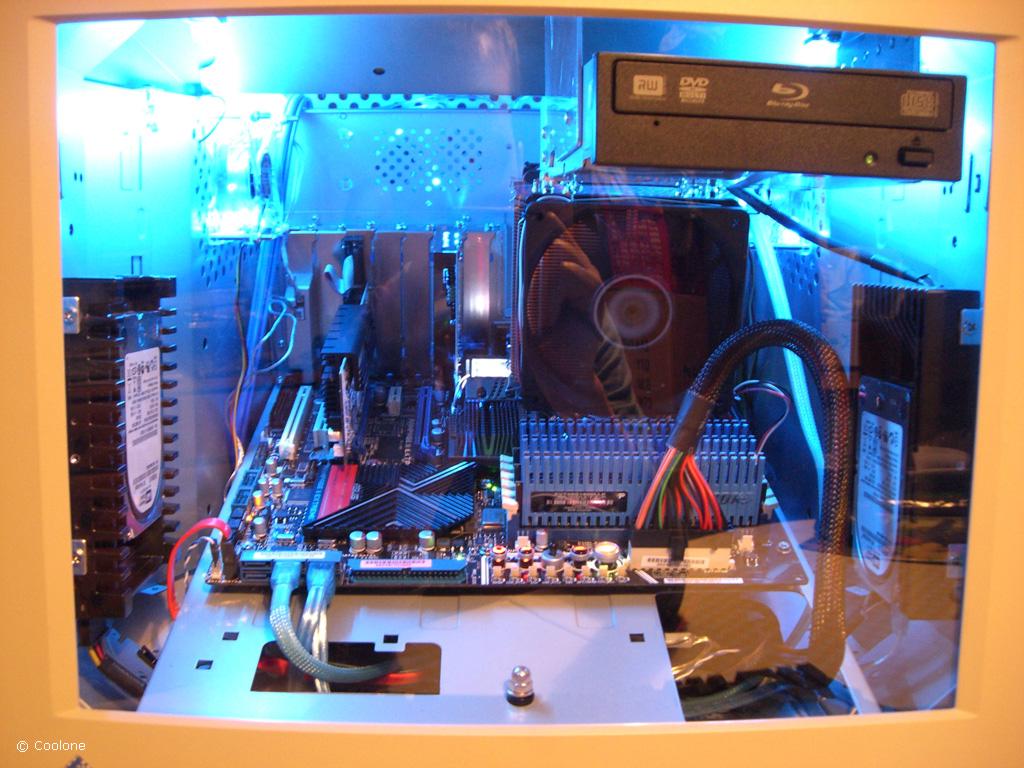

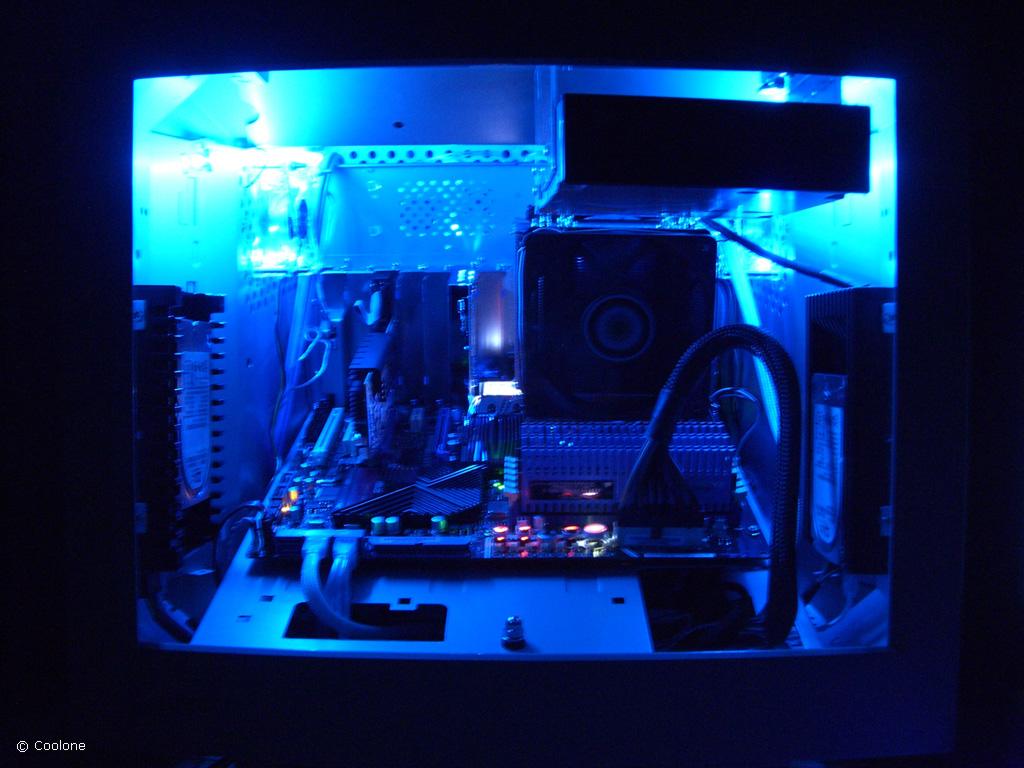

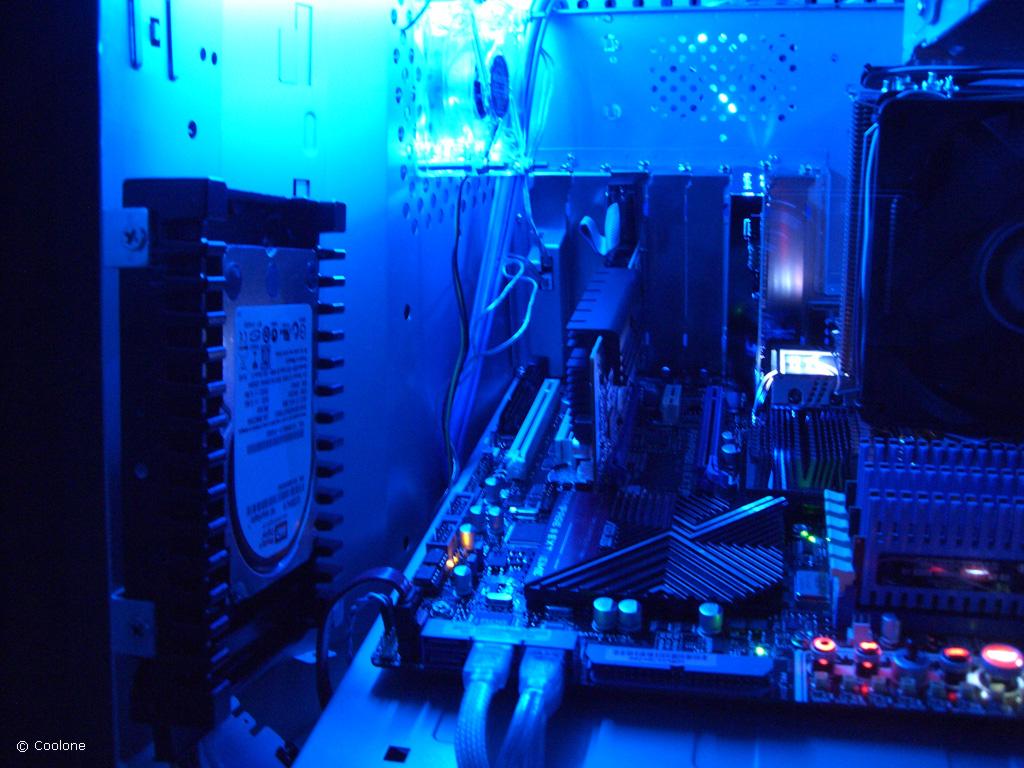

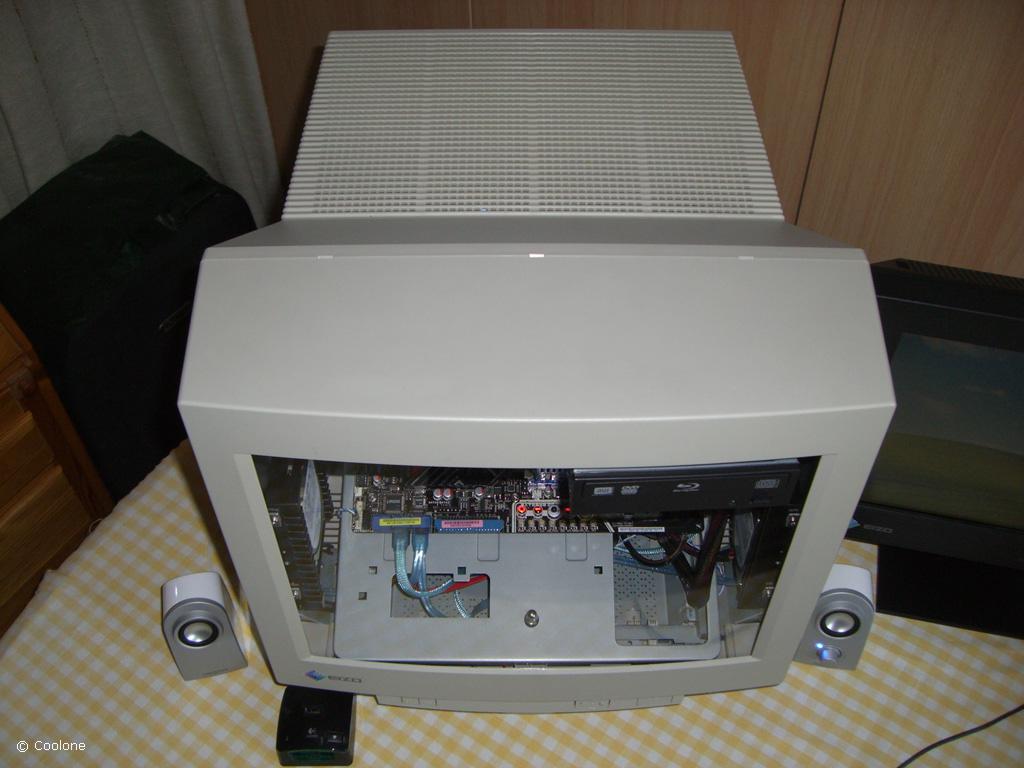

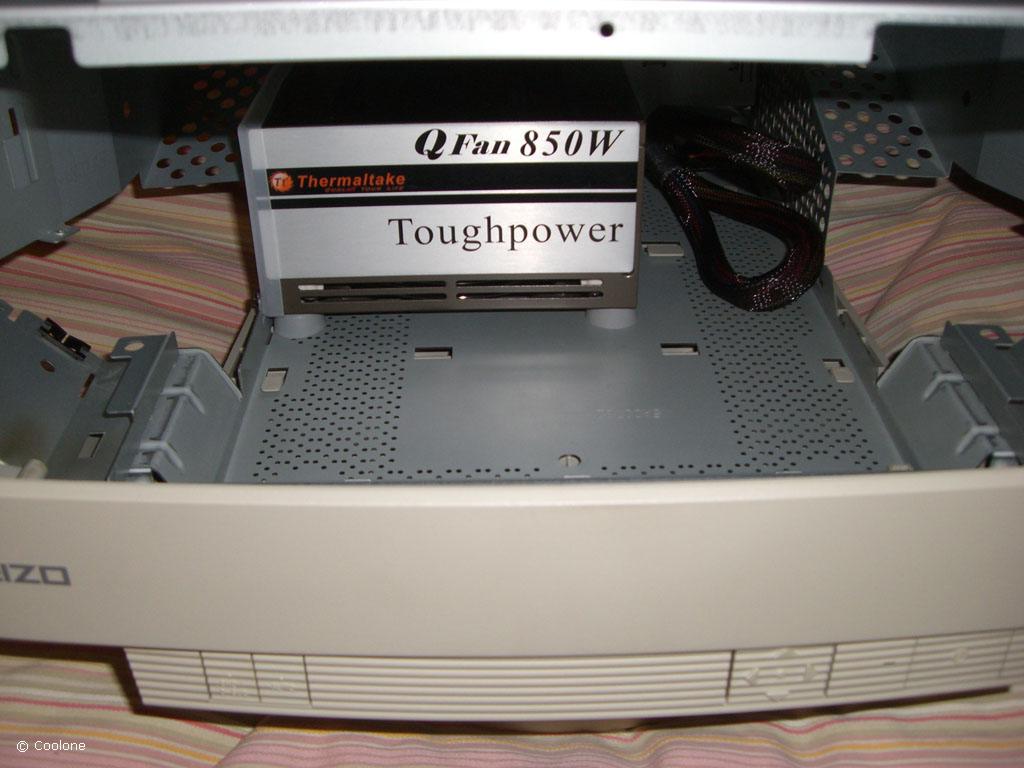

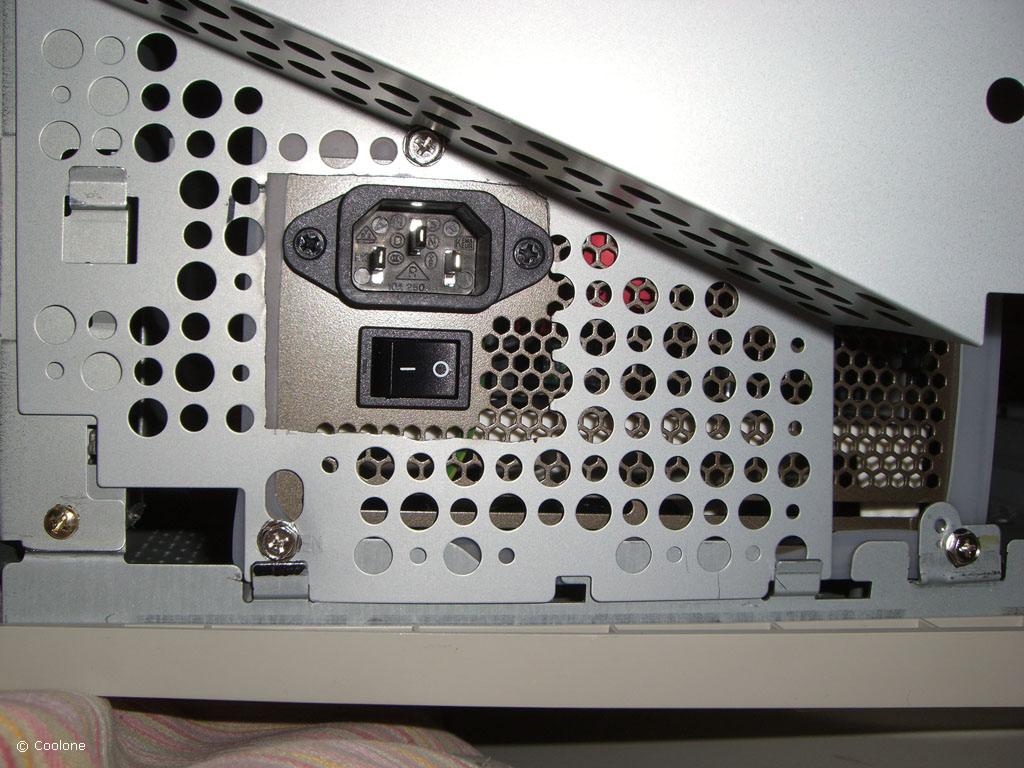

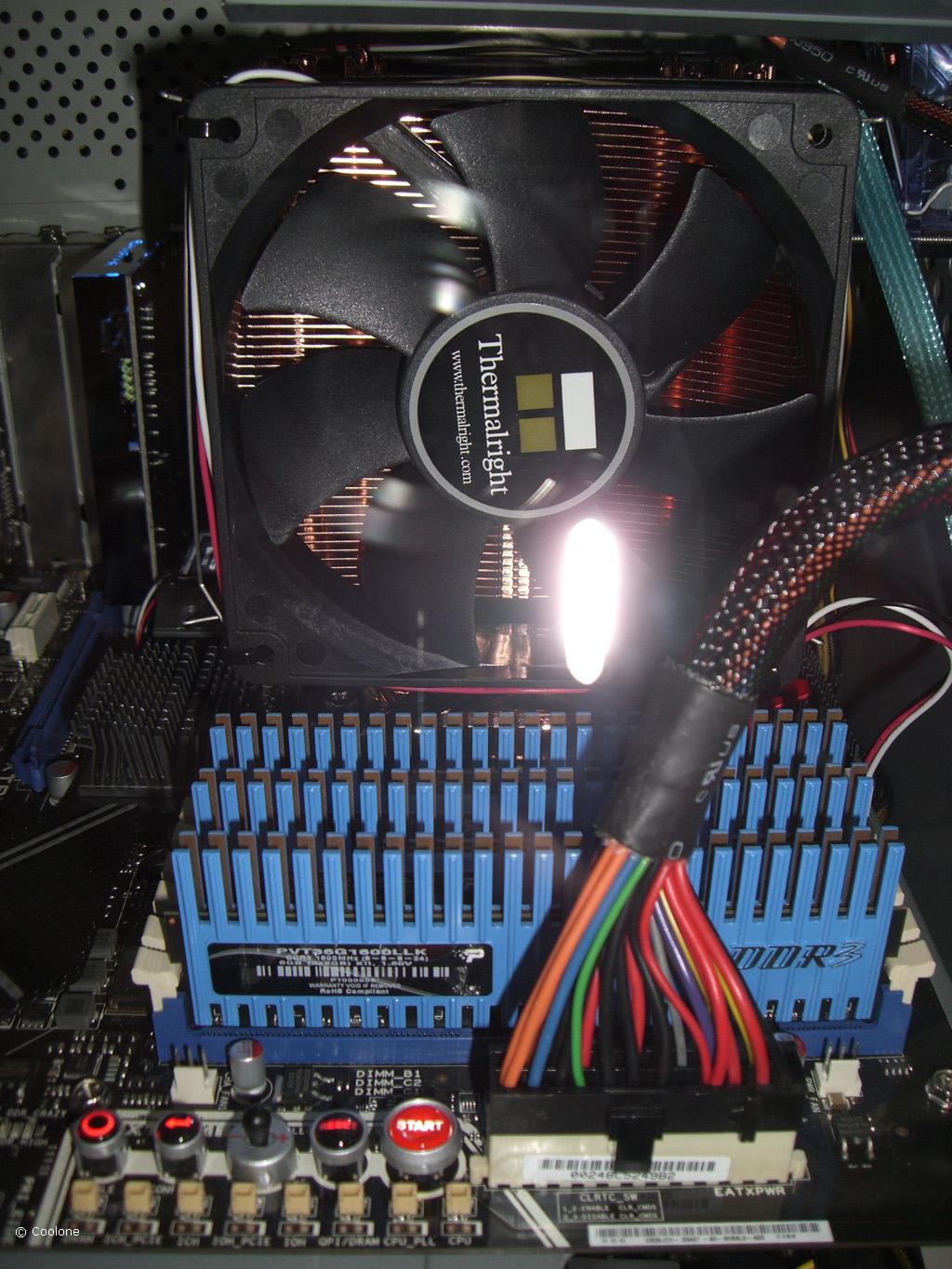

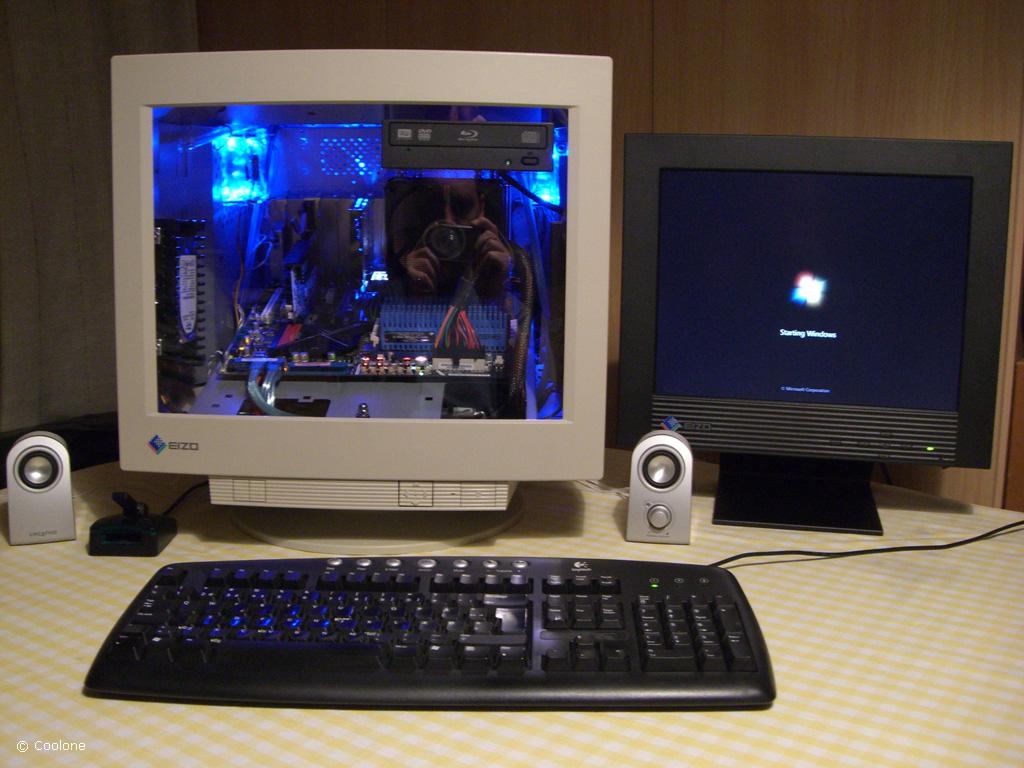

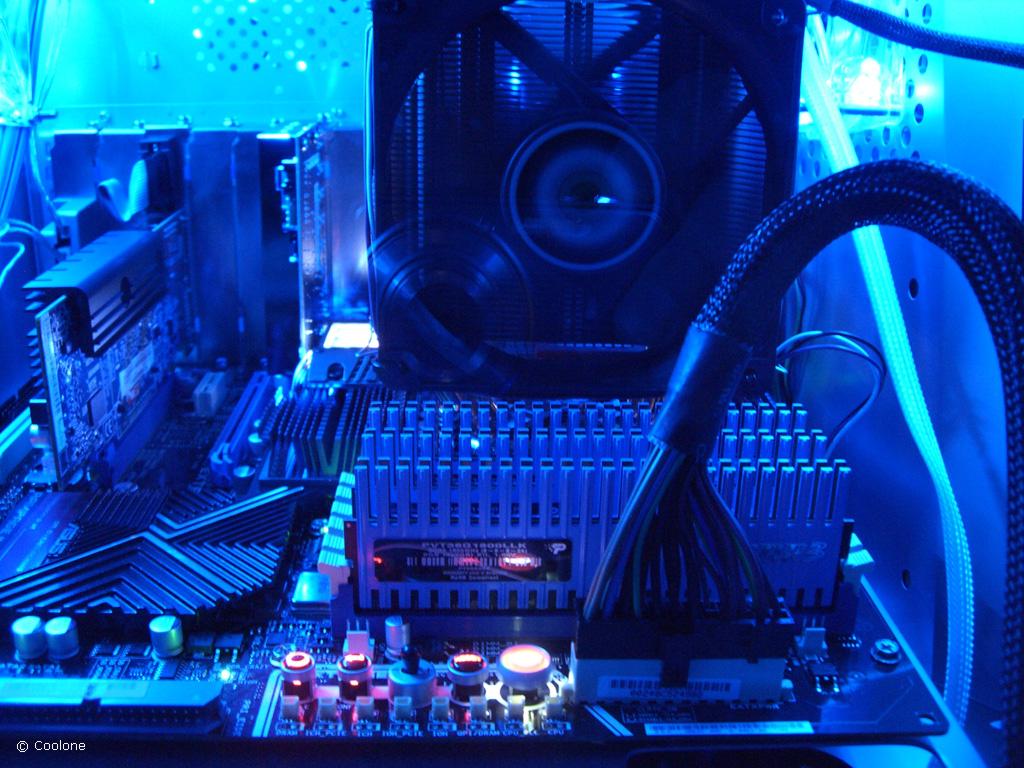

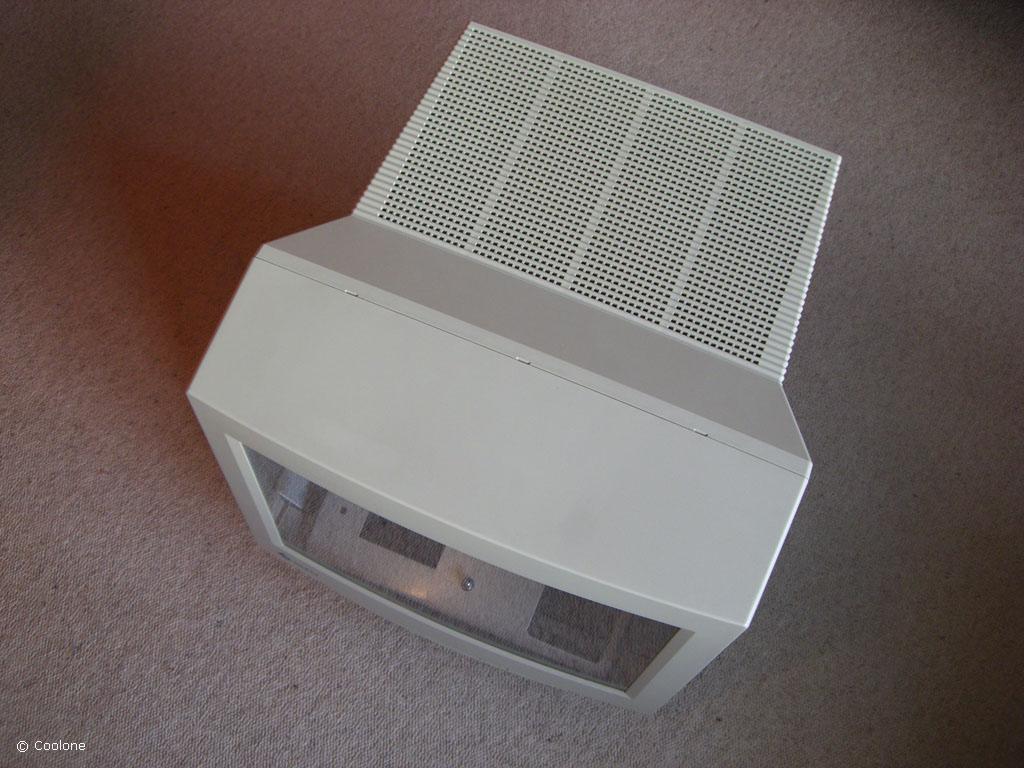

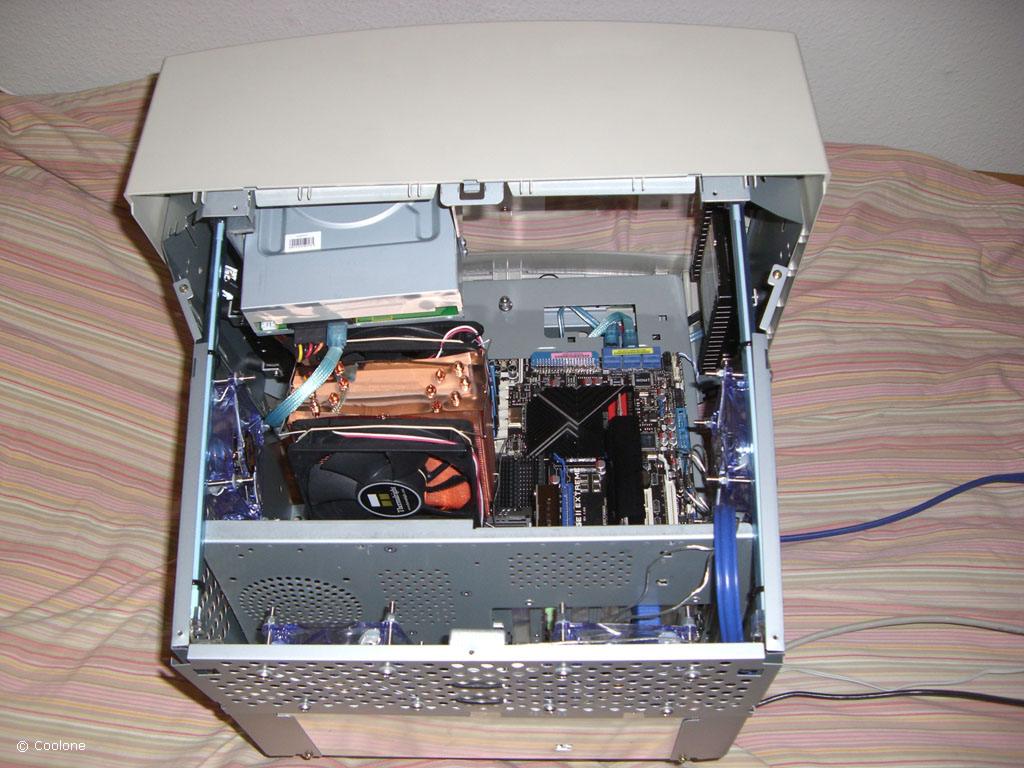

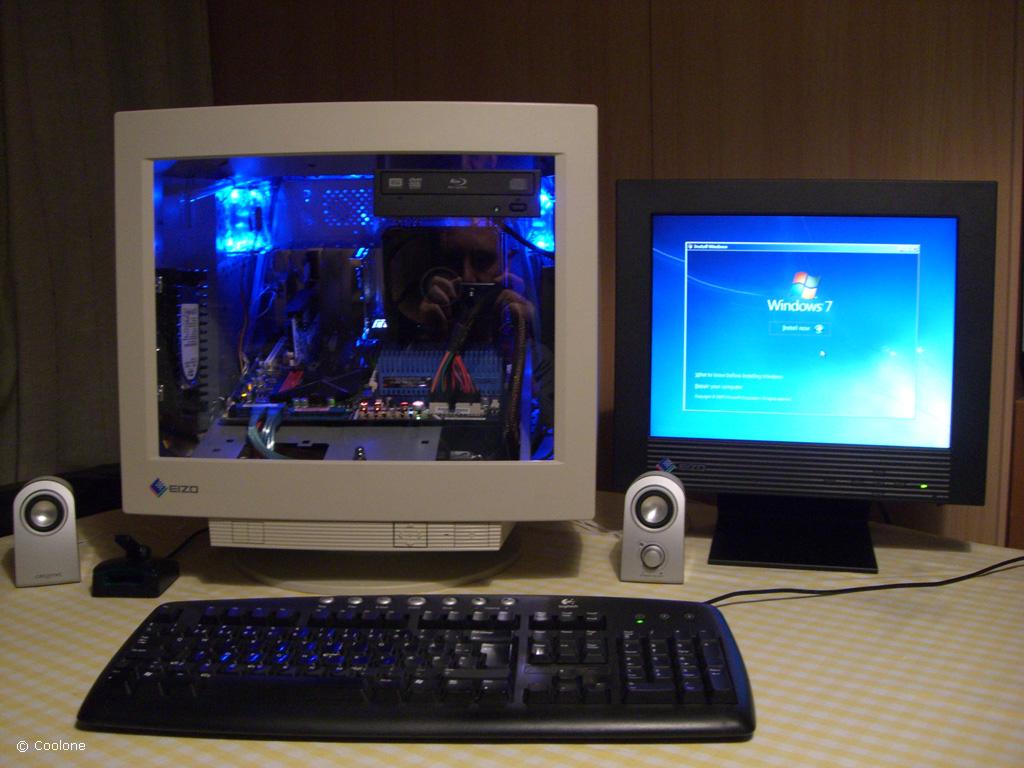

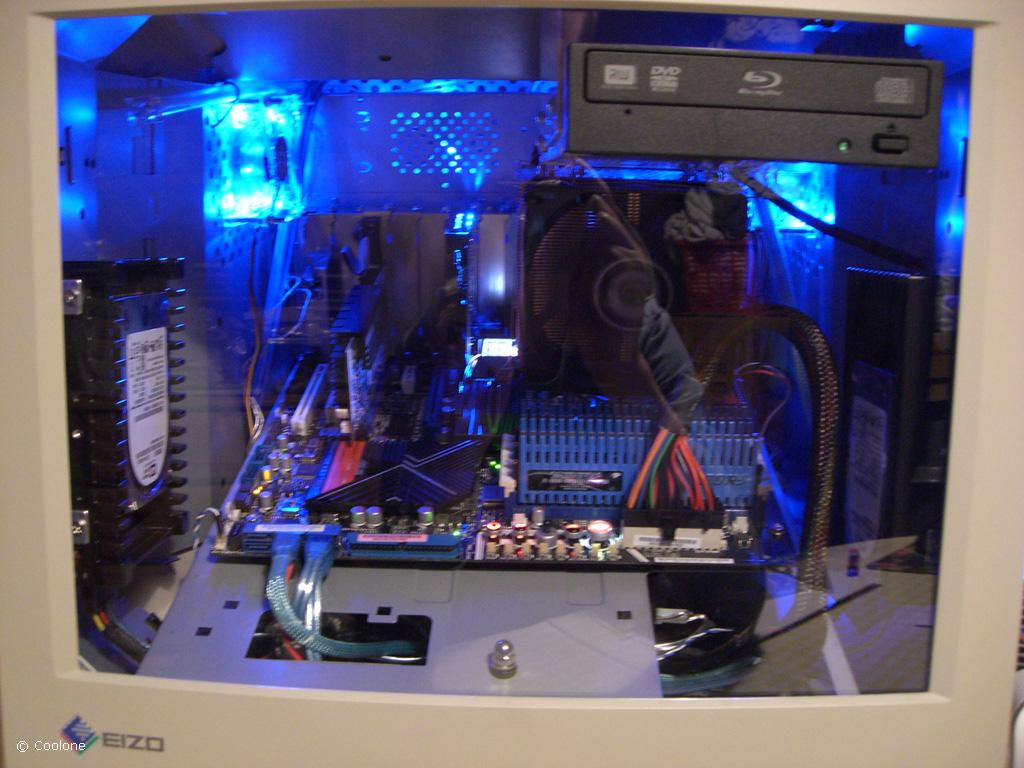

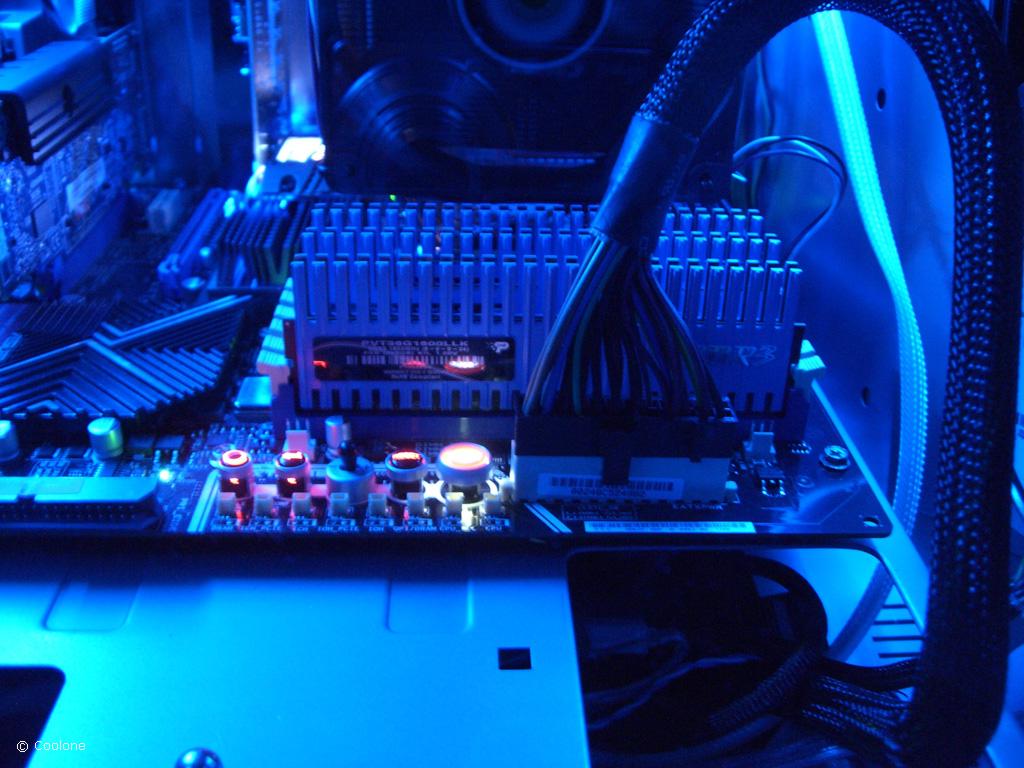

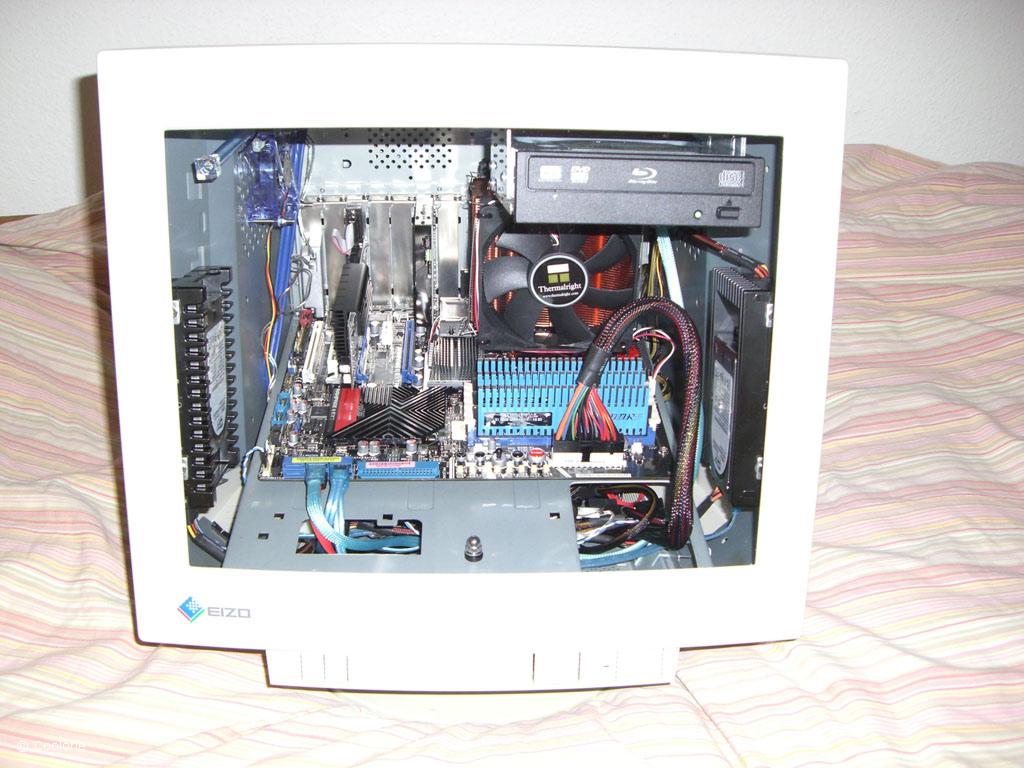

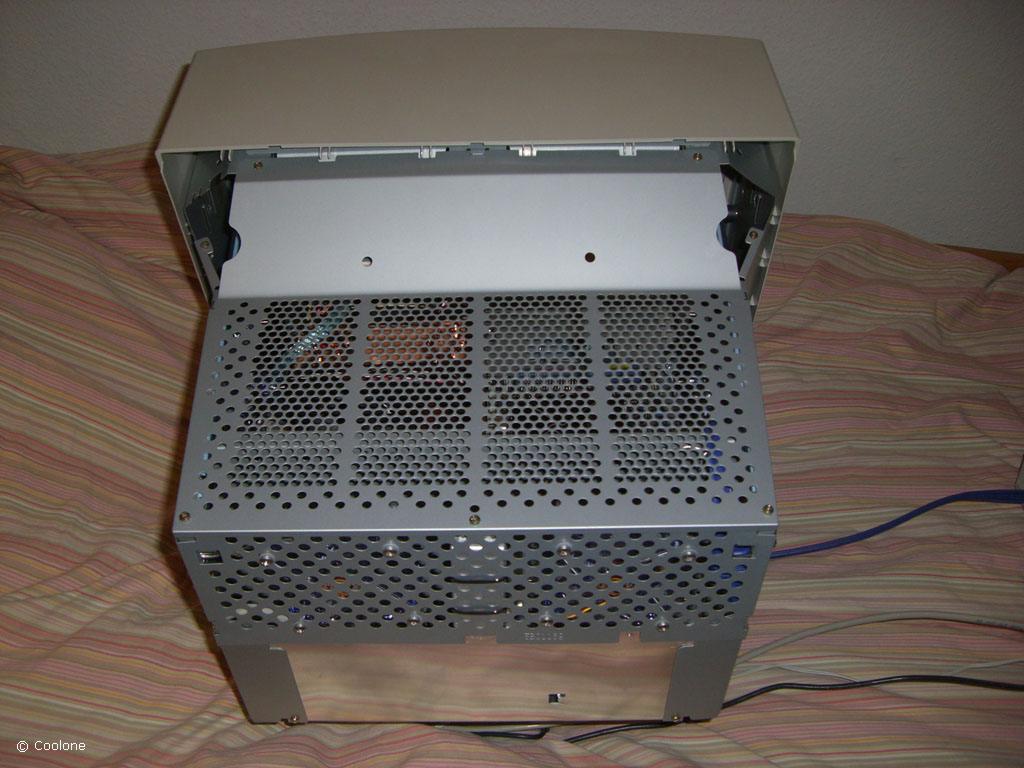

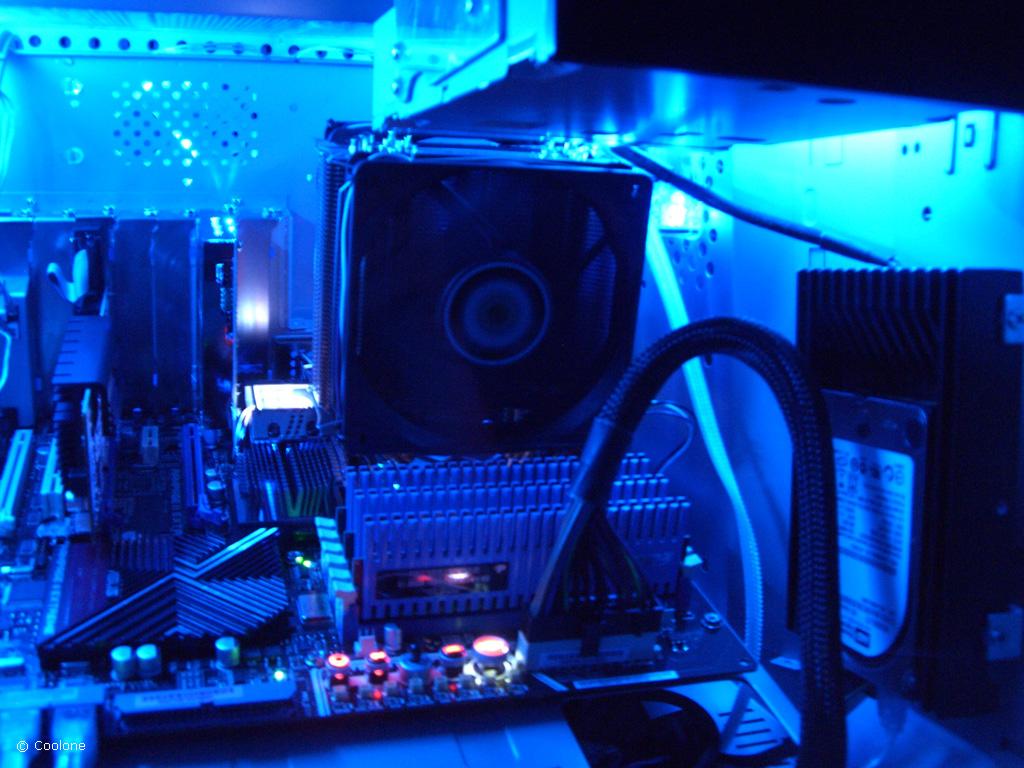

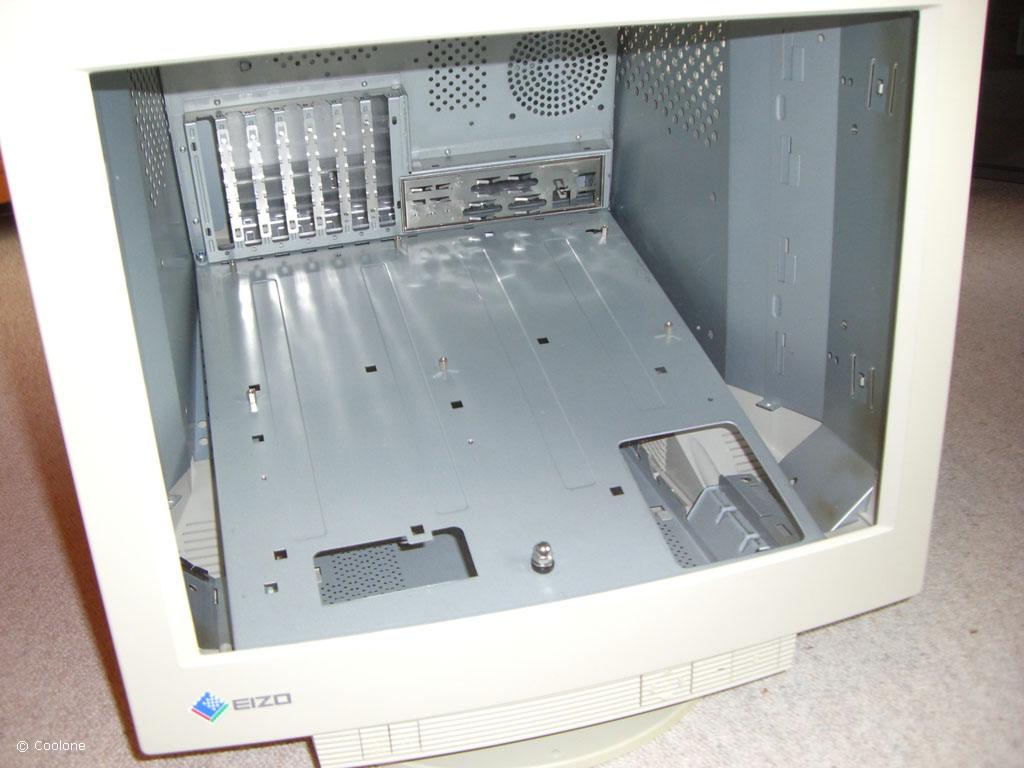

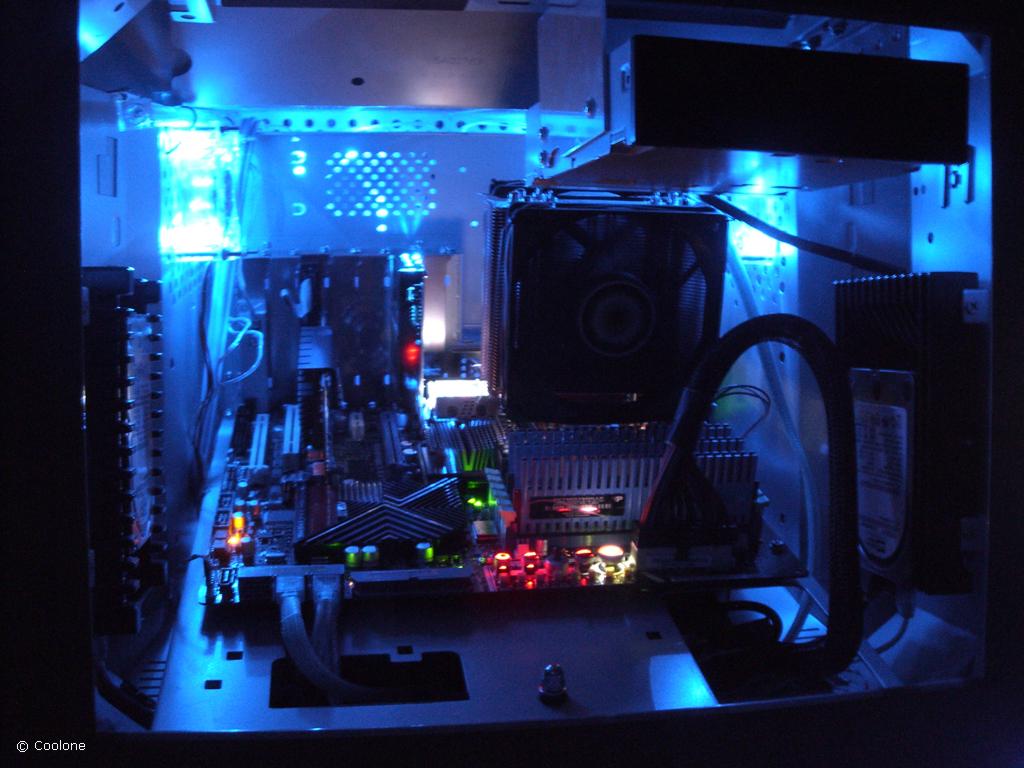

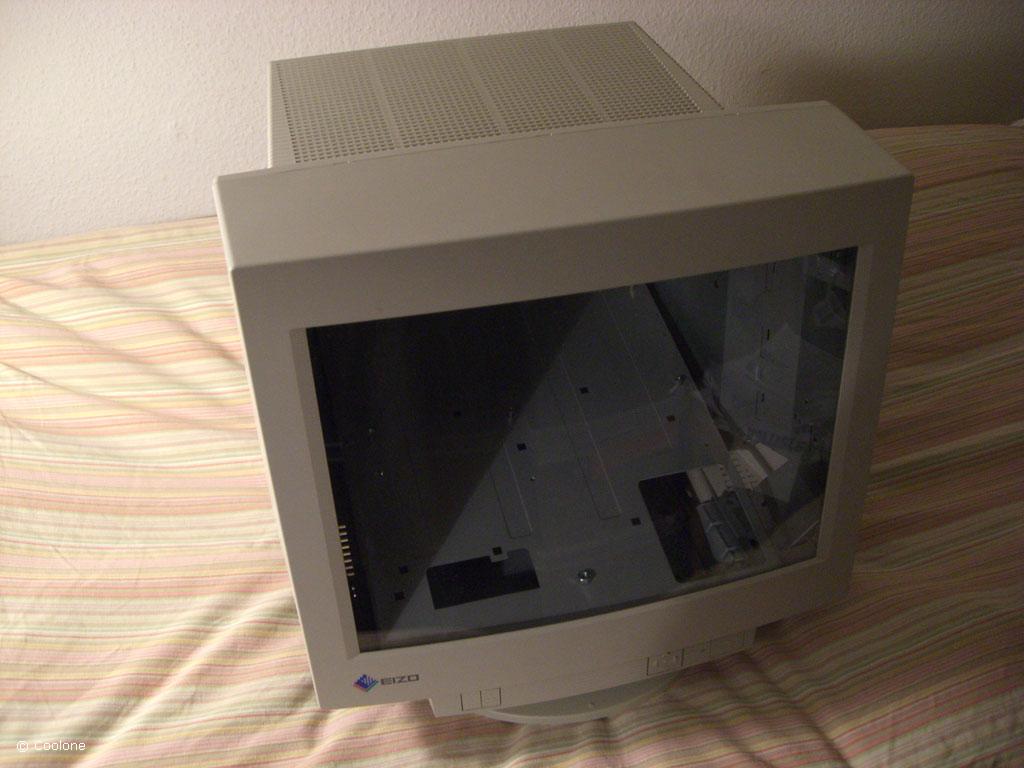

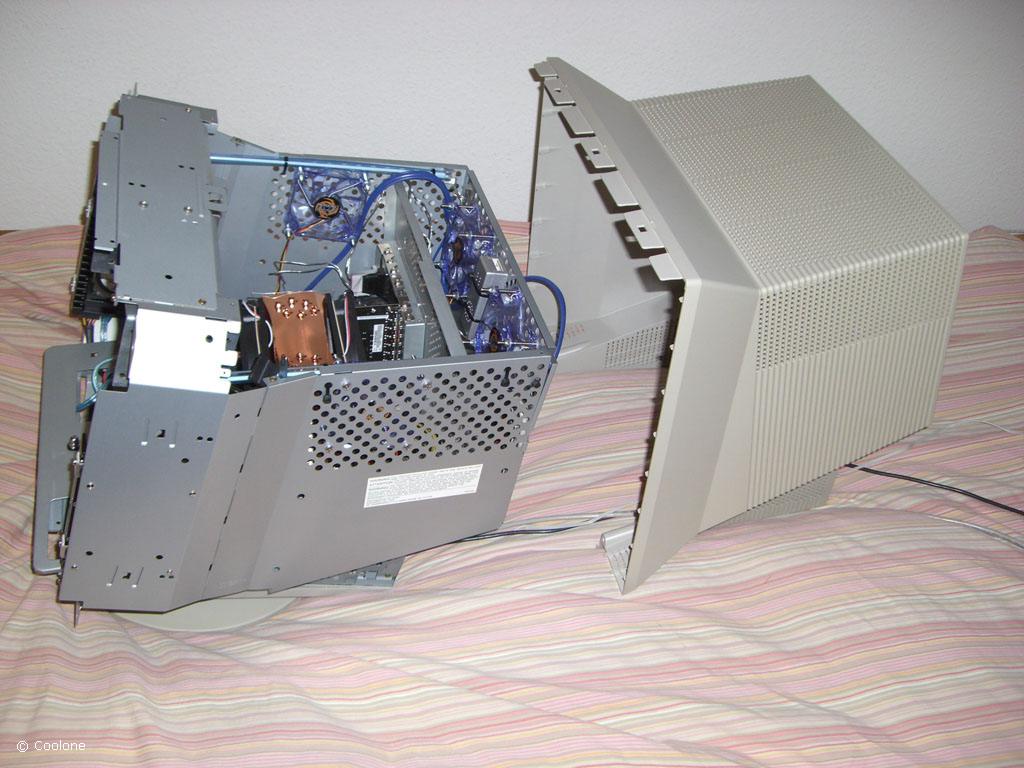

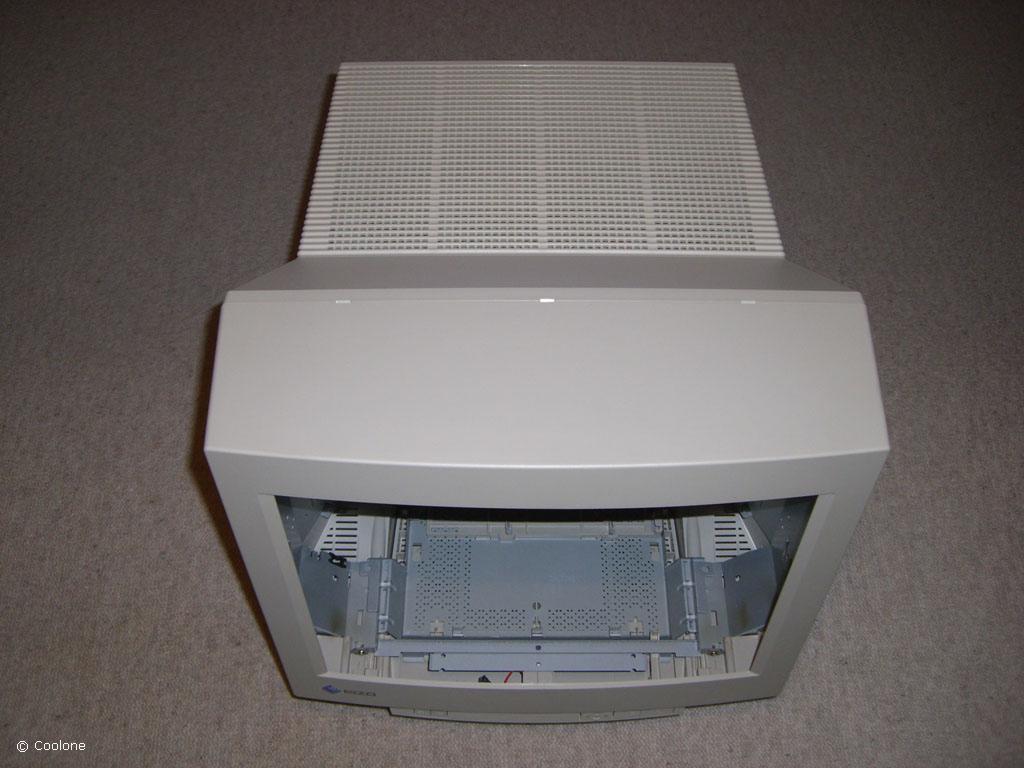

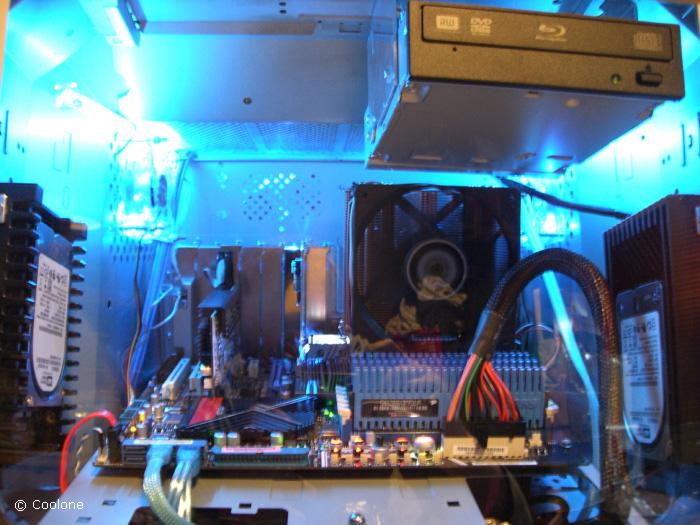

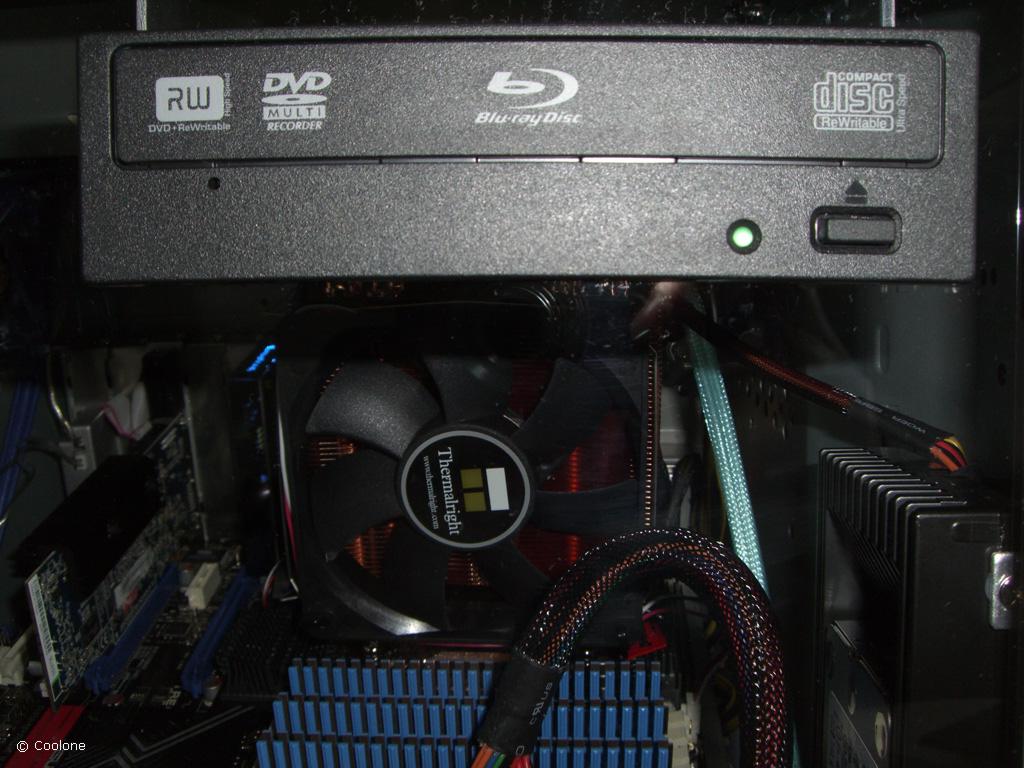

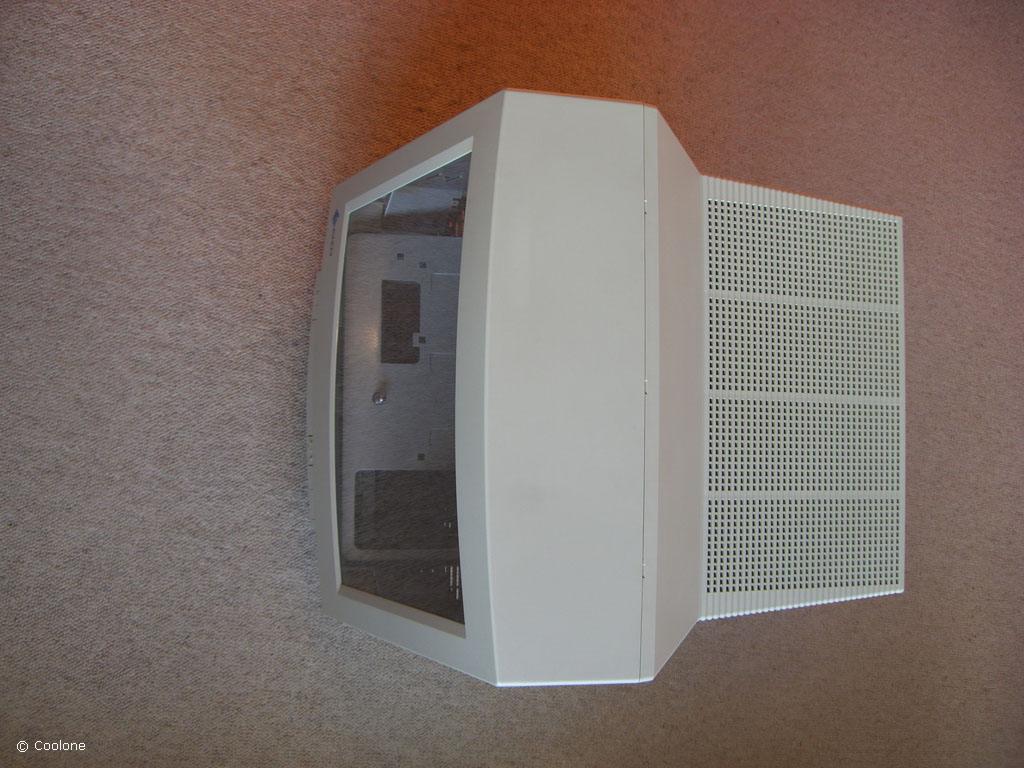

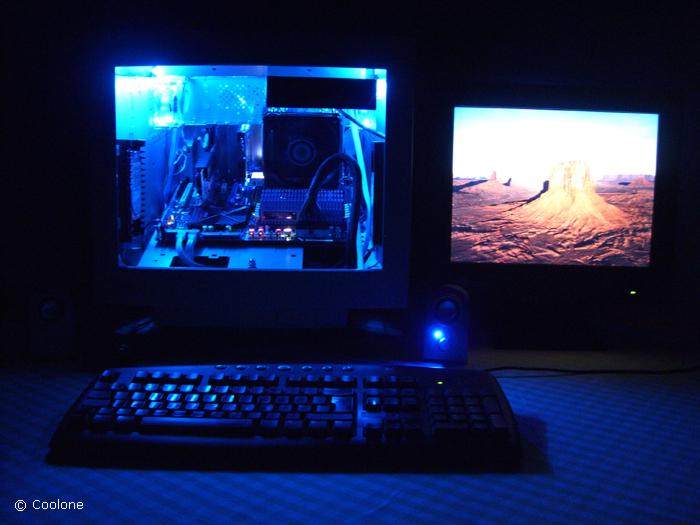

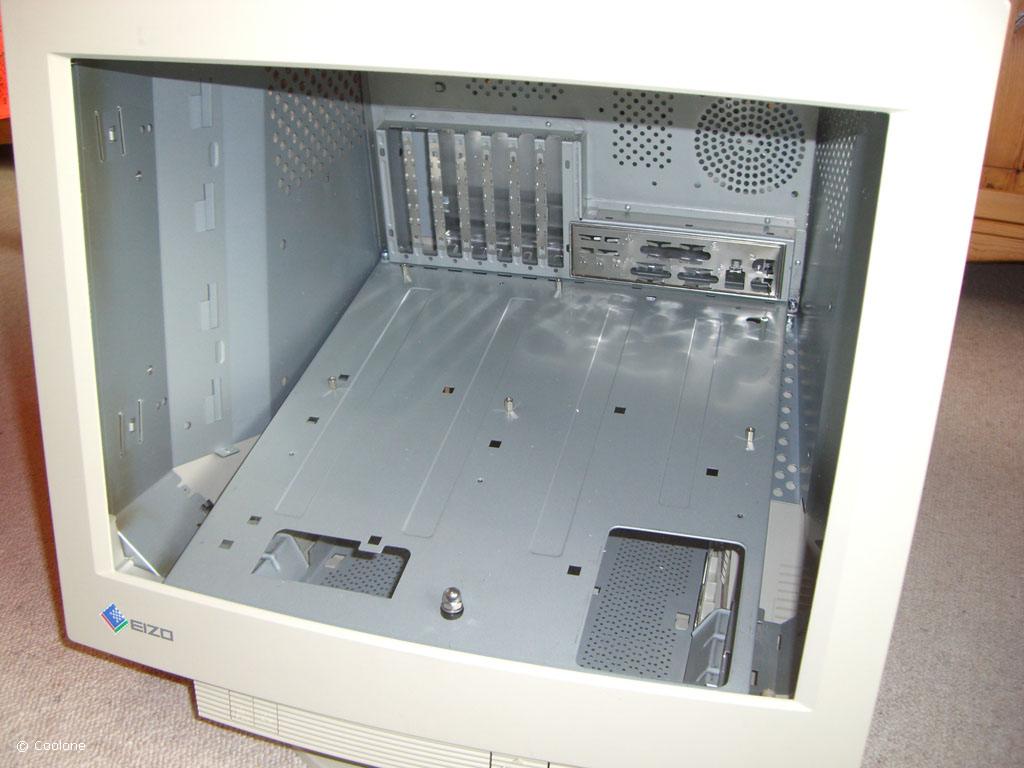

Coolone Posted May 17, 2009 Author Posted May 17, 2009 f. Case Mod finished: Pictures of the finished EIZO FlexScan T68 Monitor – Gaming Case Mod 2009. . . . . . . . . g. Case Mod finished with hardware installed: Pictures of the finished EIZO FlexScan T68 Monitor – Gaming Case Mod 2009 with the hardware installed. . . . . . . . . . . . . h. Thanks for taking a look at my case modding project: Feel free to give your command of my case mod project! .

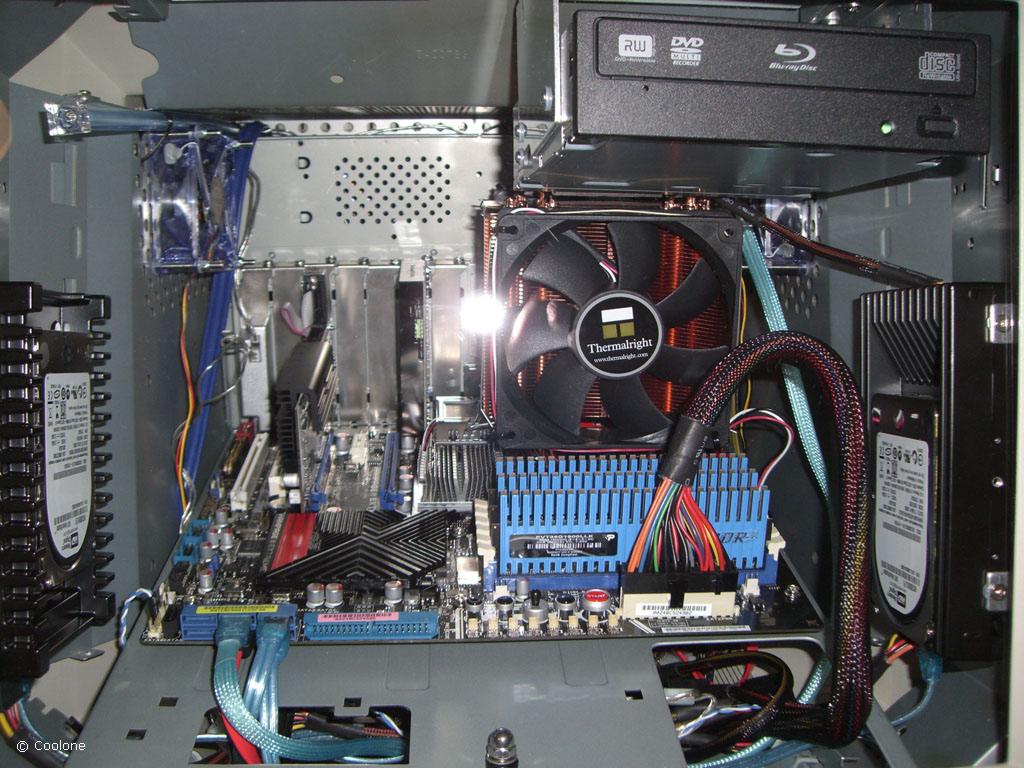

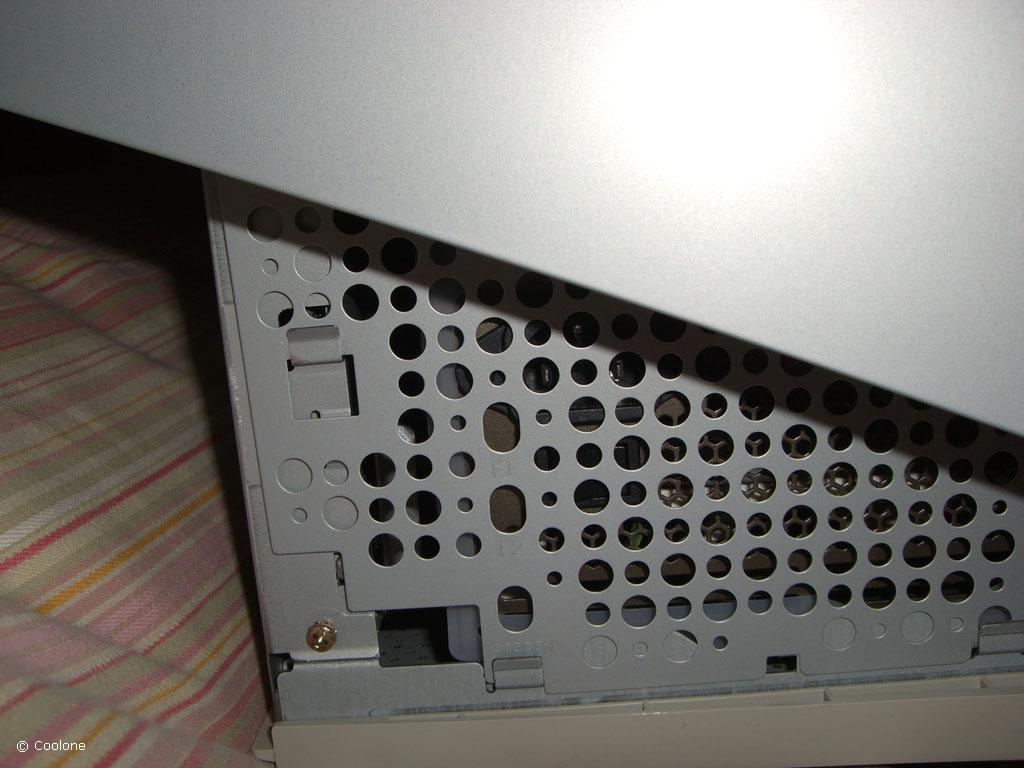

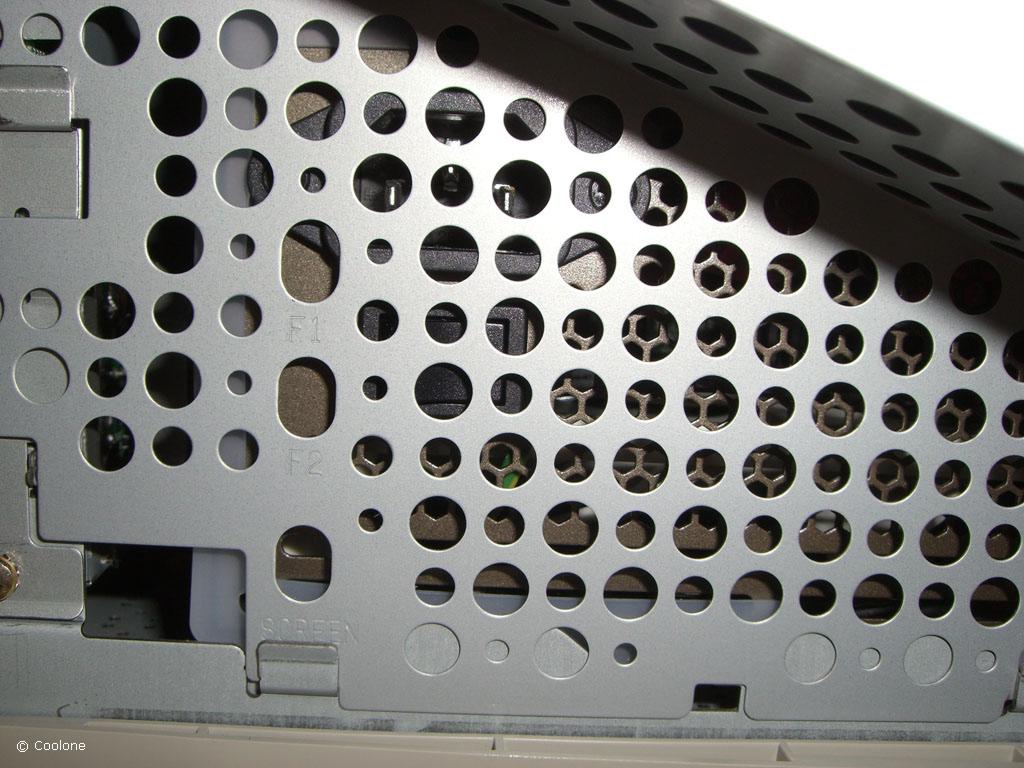

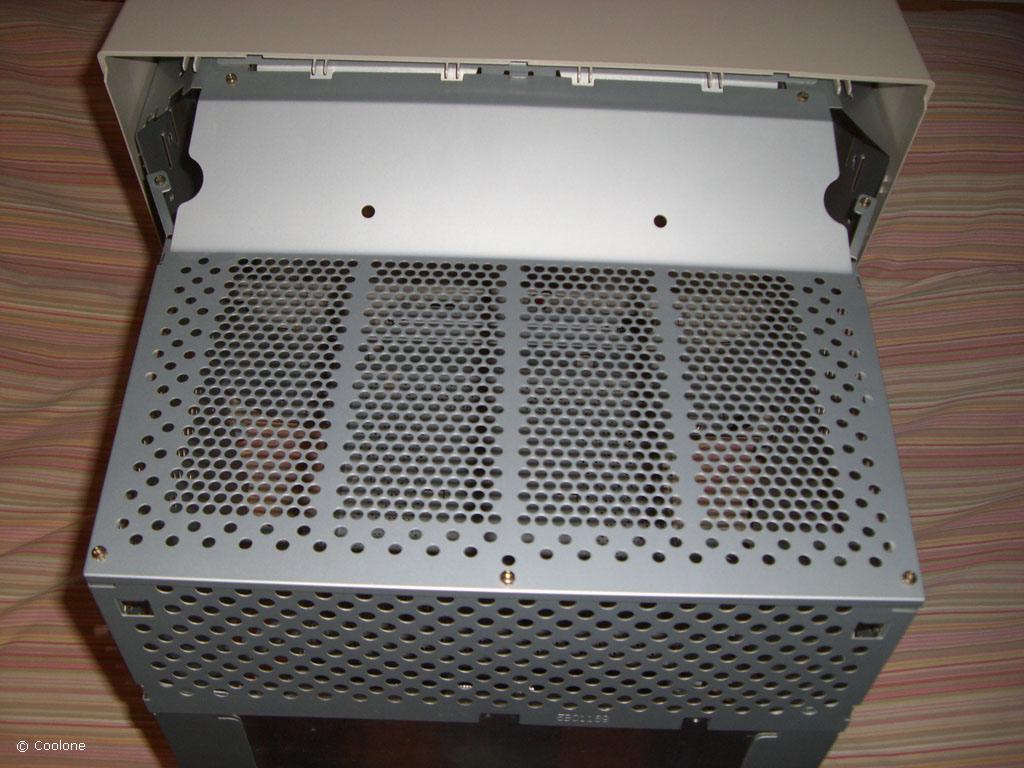

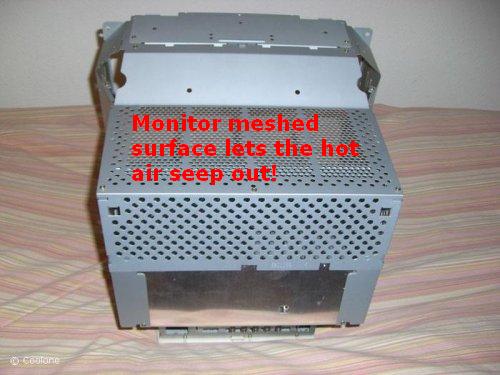

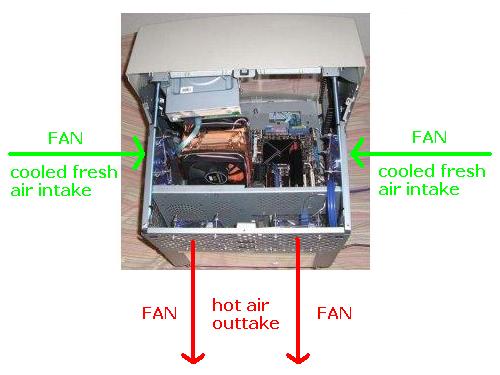

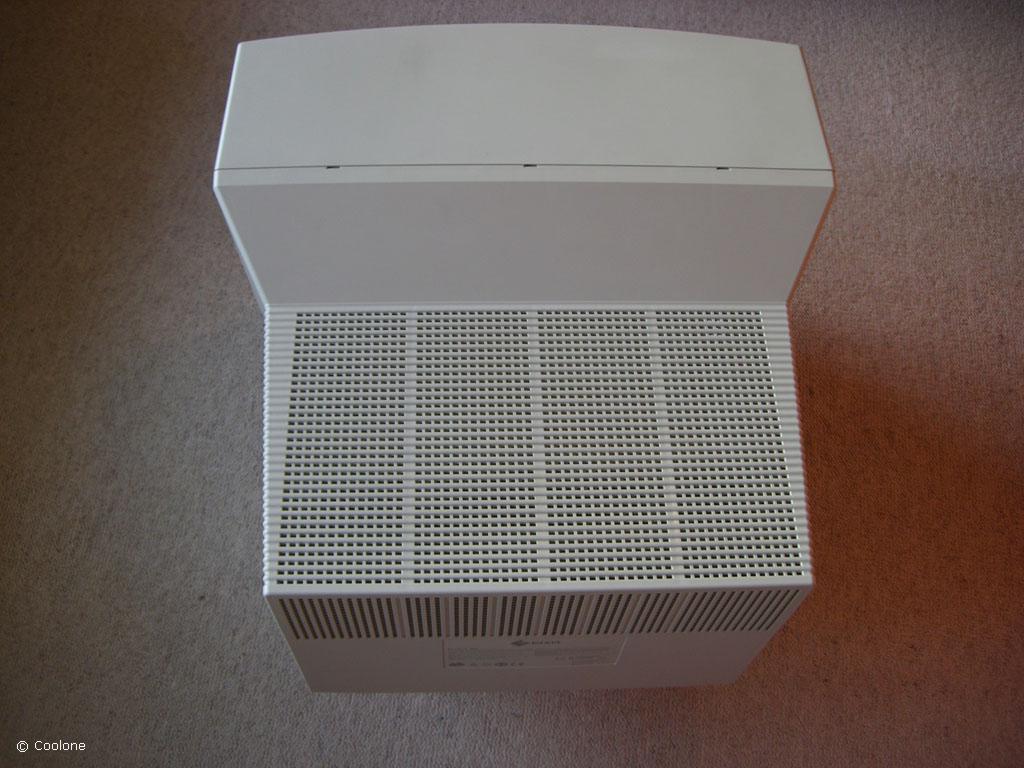

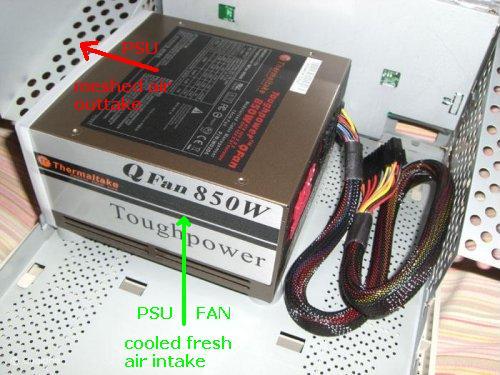

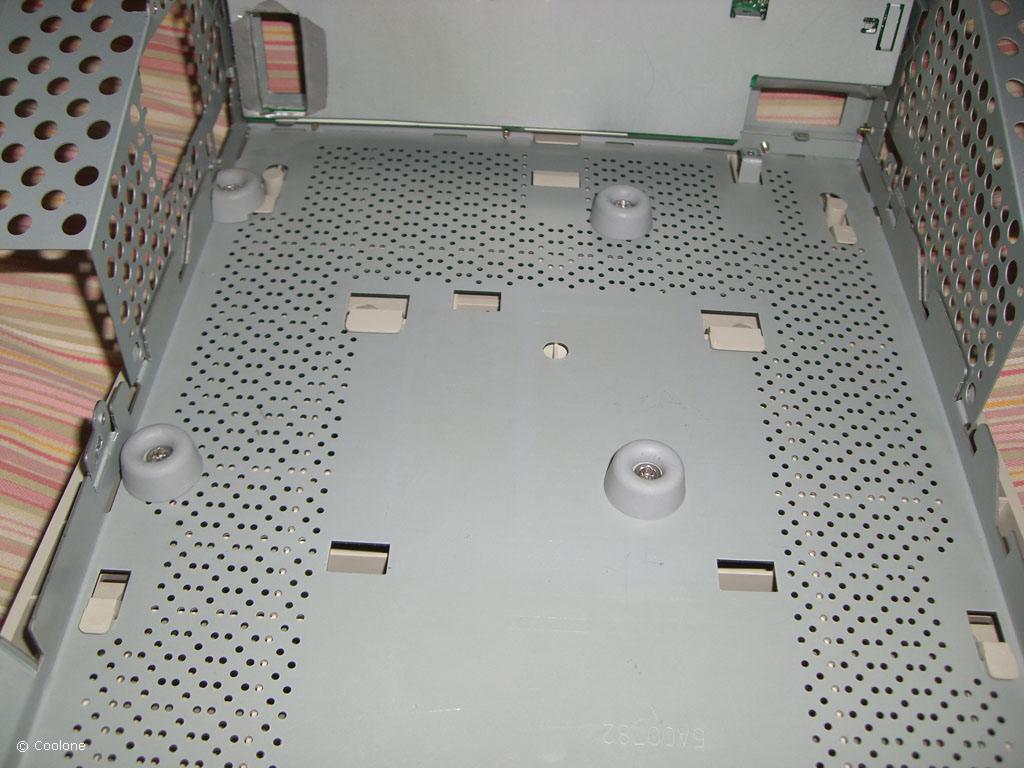

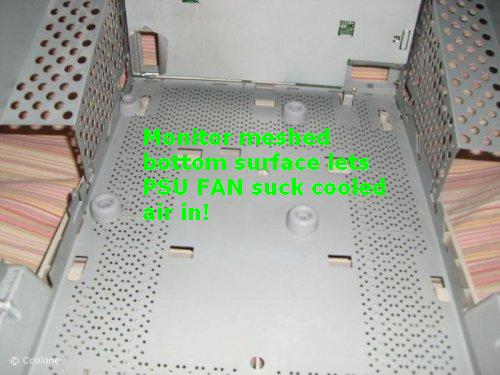

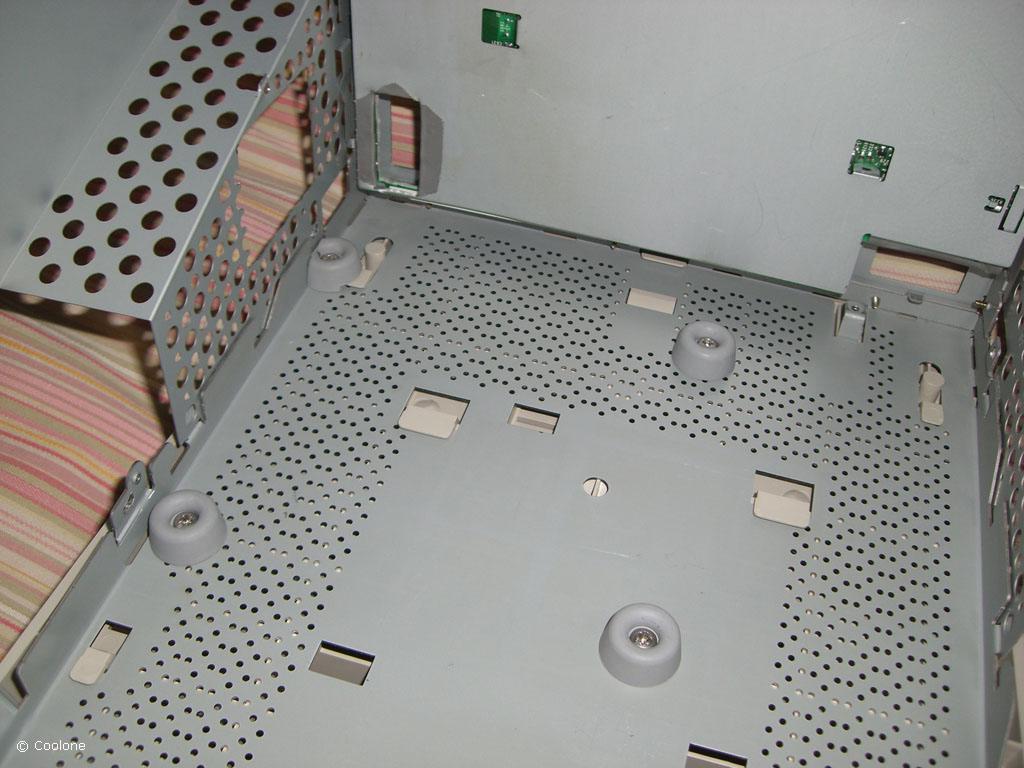

Coolone Posted May 17, 2009 Author Posted May 17, 2009 EIZO FlexScan T68 Monitor – Gaming Case Mod 2009 Case Mod - Air flow I only measured the temperature by hand and it did not fell any hot! Also the “Monitor†has a meshed surface – which allows air both seep in / out. .
Icejon Posted May 18, 2009 Posted May 18, 2009 This is an awesome idea. I am worried about your thermals. It looks like there could be some areas heat might get stuck like under the motherboard. Do you have plans for this?

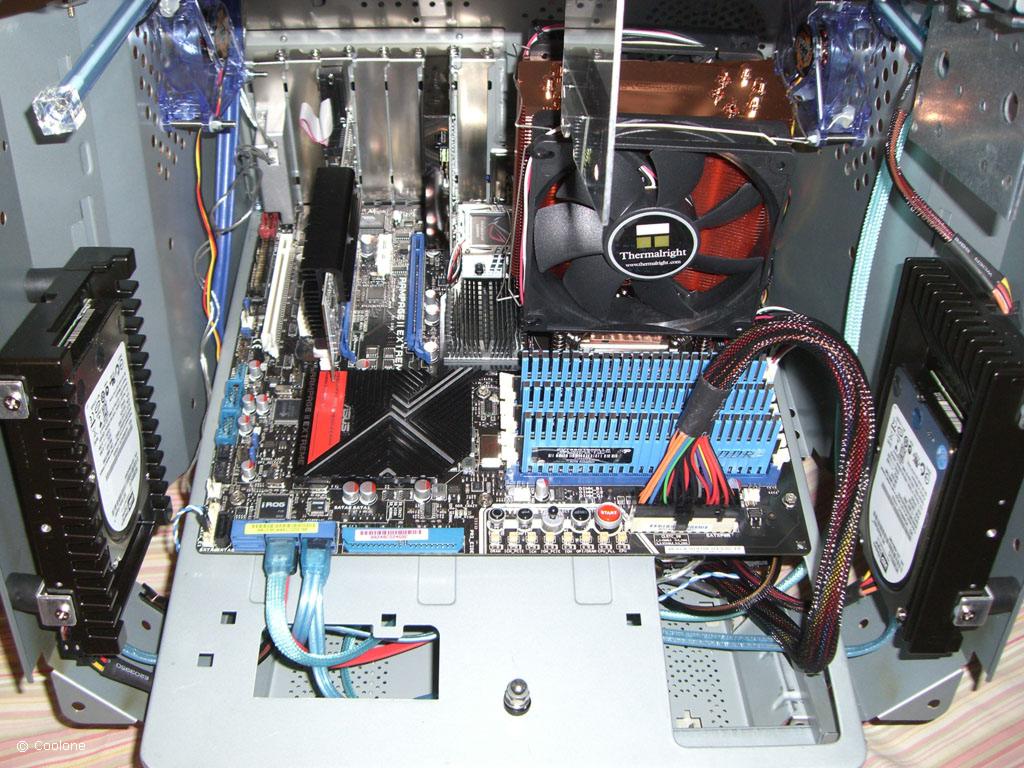

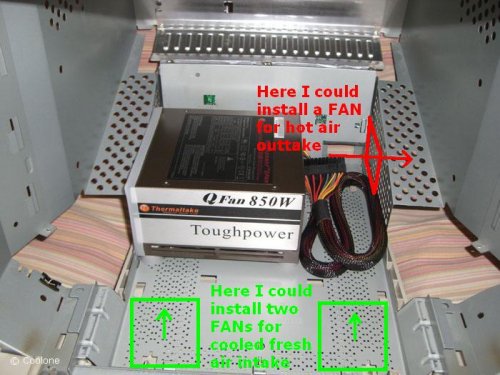

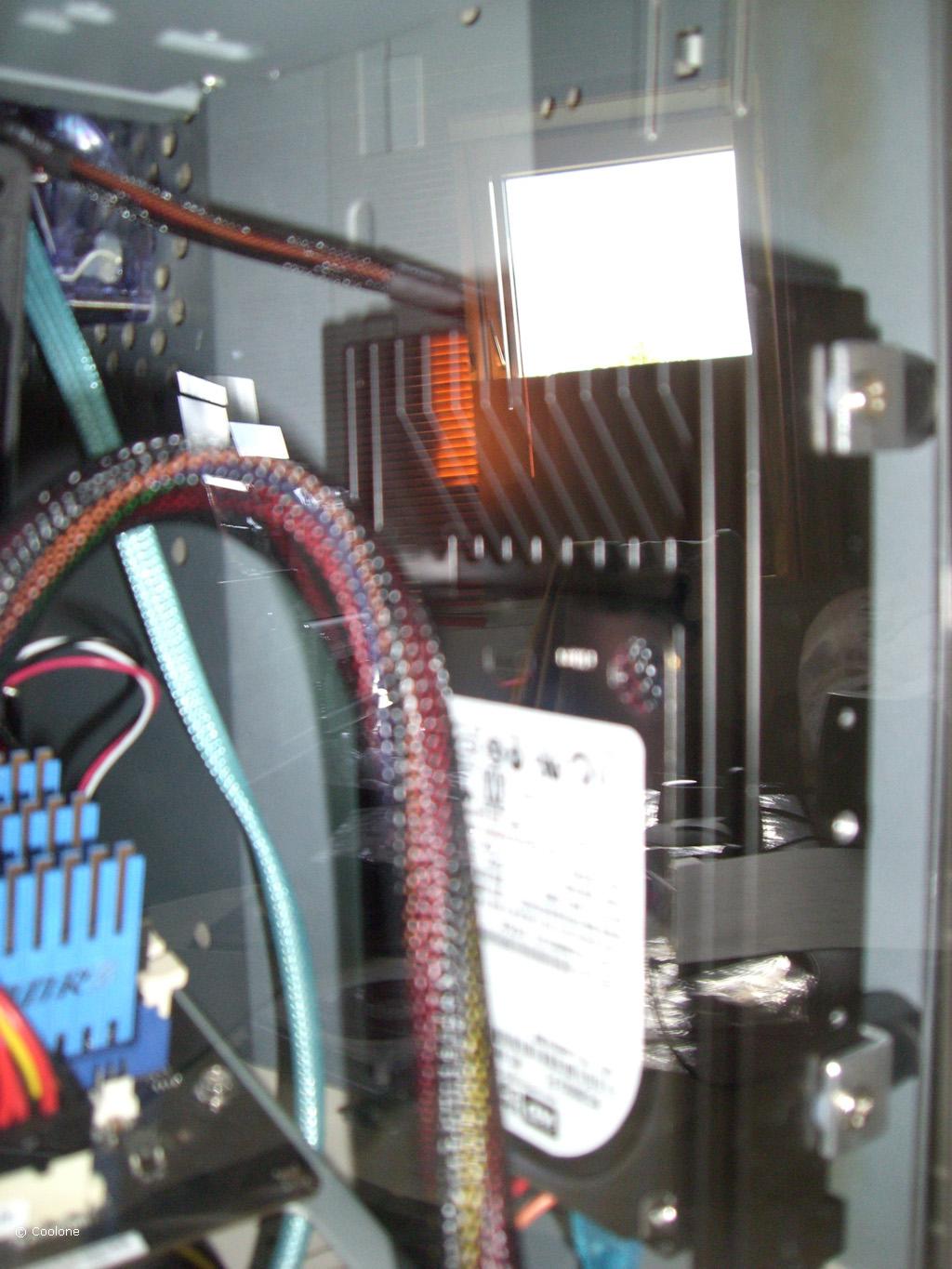

Coolone Posted May 18, 2009 Author Posted May 18, 2009 EIZO FlexScan T68 Monitor – Gaming Case Mod 2009 Case Mod - Air flow UPDATE When I upgrade the graphics card it could get necessary to install some more case FANs. Also it would be possible to install a 140 mm exhaust FAN in top of the monitor mod. But there will always be some areas with less air flow like in a normal PC case in this case I’m a little concerned about the area around the hard drives. .
Coolone Posted May 20, 2009 Author Posted May 20, 2009 EIZO FlexScan T68 Monitor – Gaming Case Mod 2009 Case Mod - Homepage & Videos Homepage: EIZO FlexScan T68 Monitor – Gaming Case Mod 2009 by Coolone http://www.lanpartypathfinder.com/casemodding/EIZOGamingCaseMod2009/ Videos YouTubeCOM - EIZO Gaming Case Mod 2009 - Daytime YouTubeCOM - EIZO Gaming Case Mod 2009 - After Midnight .
masbuskado Posted August 5, 2009 Posted August 5, 2009 Absolutely amazing! I have seen other Monitor case mod but no like this...!!! Is very detailed and a clean mod!
PaPang Posted August 11, 2009 Posted August 11, 2009 Agreed, great object mod down very cleanly! I remember having a 19" CRT, weighed a ton, must be lighter now.
